BMW M5 S38B36 Turbo Series Pistons

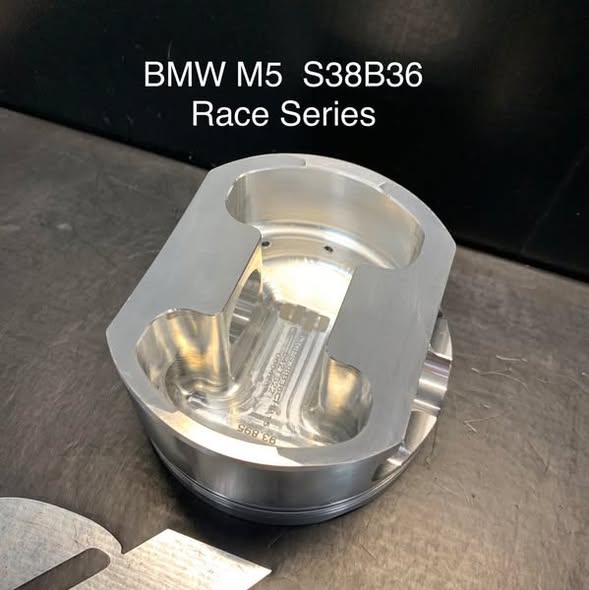

BMW M5 S38B36 Turbo Series Pistons - Image 2

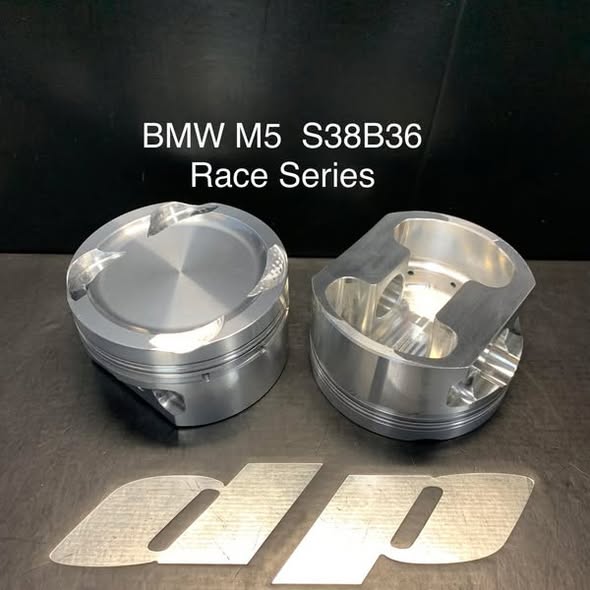

BMW M5 S38B36 Turbo Series Pistons - Image 3
BMW M5 S38B36 Turbo Series Pistons - Image 4
,

BMW M5 S38B36 Turbo Series Pistons

Price range: 210,00€ through 1.360,00€ (exc. Vat)

Billet Pistons for Bmw M30B35
Our Race Series Pistons are equiped with Tool Steel pins for a high boost setup ~1500hp!

Optional extras

SKU: N/A Categories: ,

Technical data — M5 B36

Displacement3535cc
Production Years1988–1992
Block MaterialCast Iron
Cylinder CoatingNone
Bore Spacing (mm)100.0 (M30/S38 family)
Bore (mm)93.40
Stroke (mm)86.00
Rod Length (mm)144
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)52mm
Rod Big End Thickness (mm)23.90mm
Rod Small End Thickness (mm)24.13mm
Cylinders6
CH (mm)31.5
Compression Ratio10.0
Bore93.5, 94
CH (Compression Height)31
CR (Compression Ratio)9.0, 9.2
Pin Size (Ø)22

Race Series Pistons for Bmw M5 S38B36
Bore: 93.5mm -94mm
Pin: 22mm
Comp.Ratio: 9.0 – 9.2:1

*Compression Ratio may not be accurate. It depends in engine machining opperations, gasket thickness/gasket bore size and piston bore diameter.

Weight 7 kg
Series

Performance, Race, Pro
Pin Diameter

22
Bore

93.5, 94
