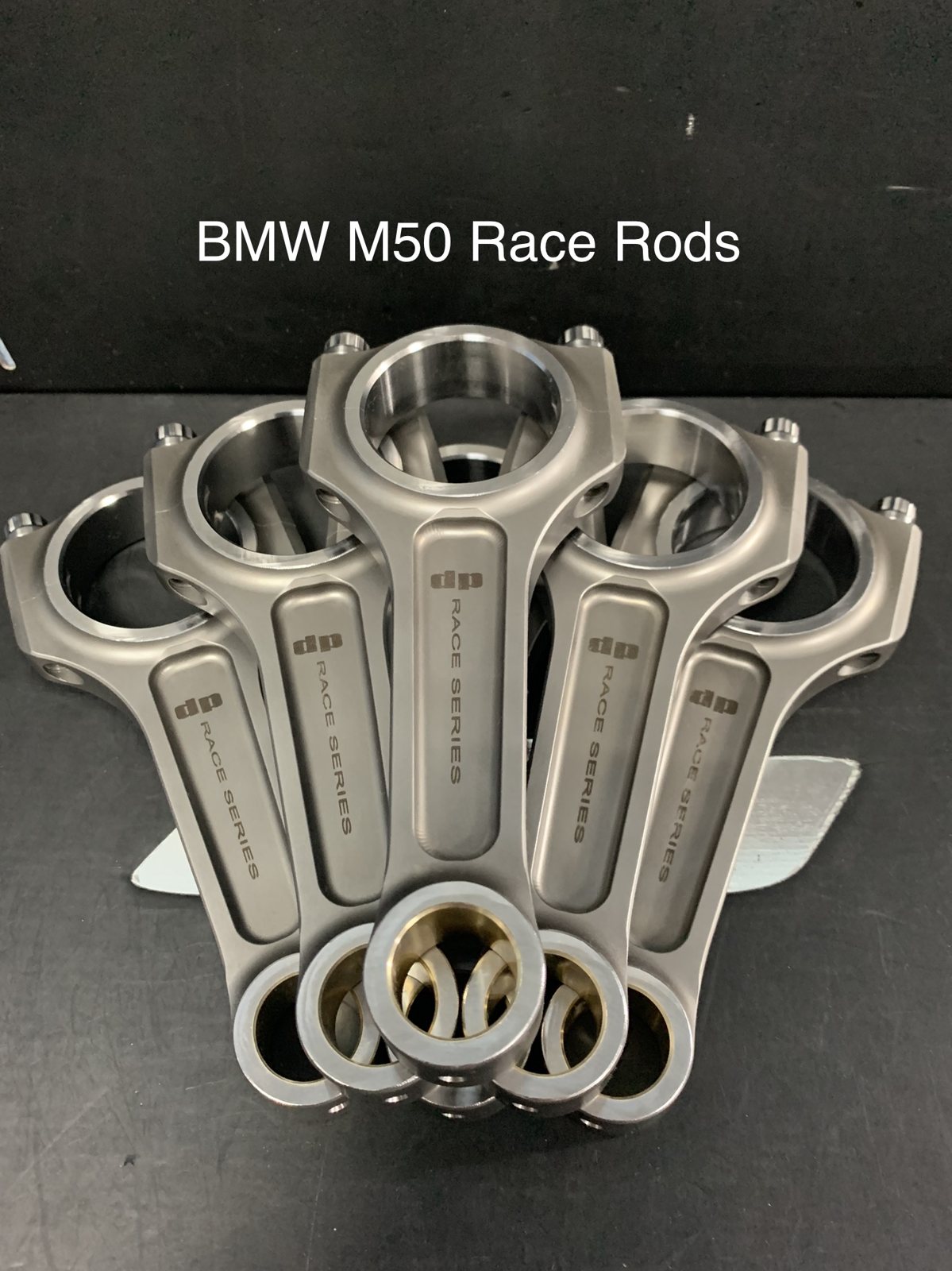

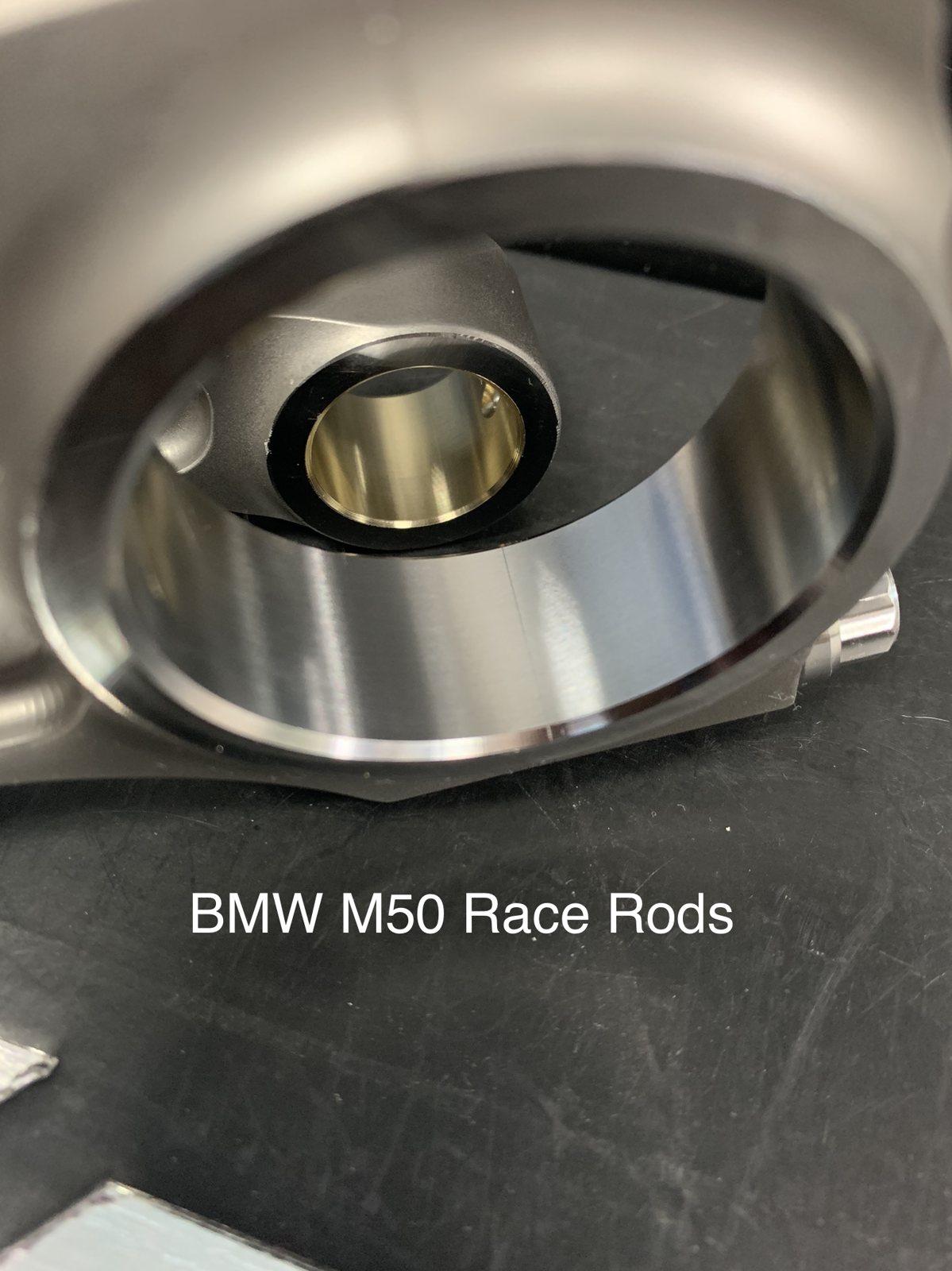

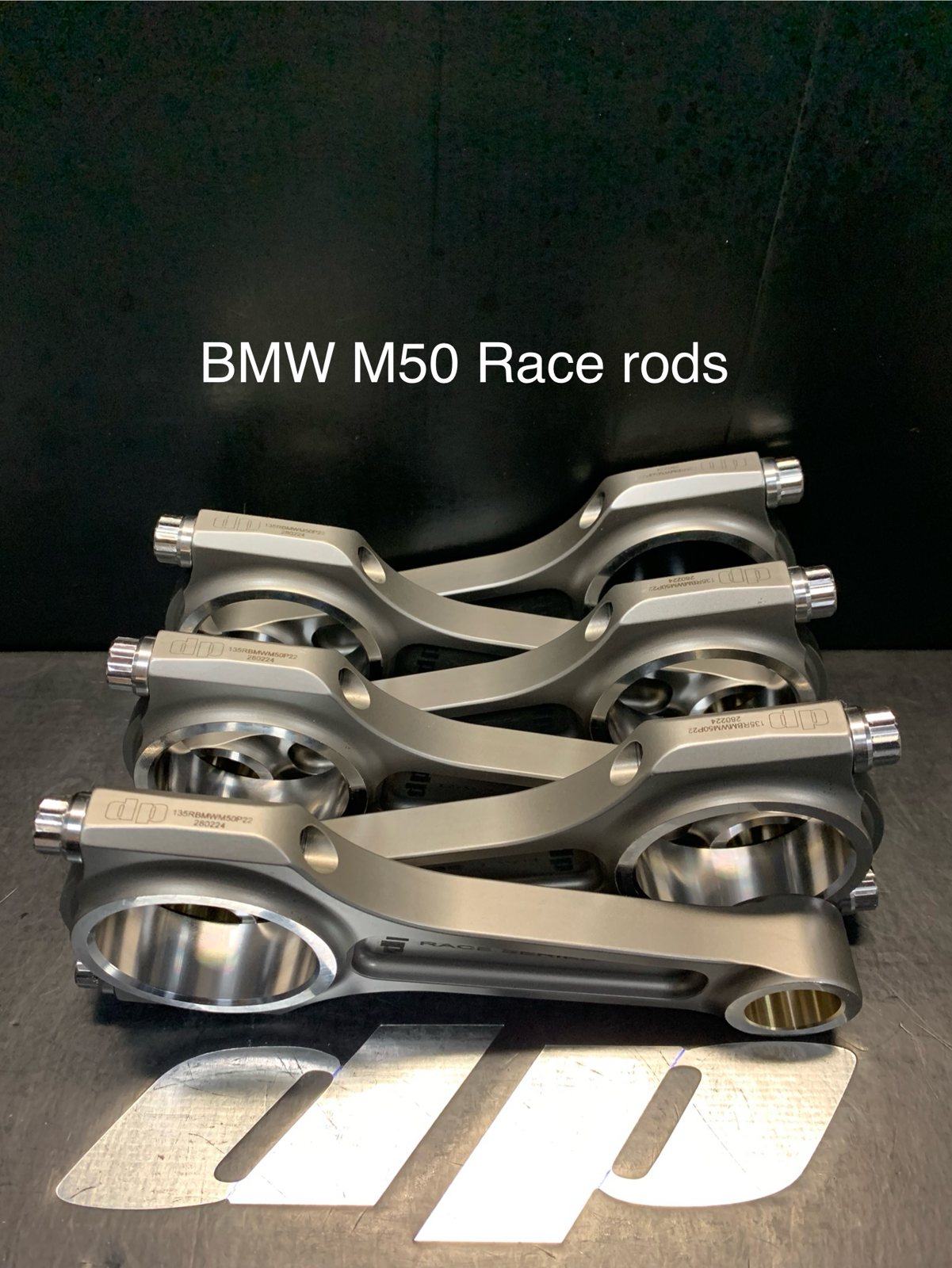

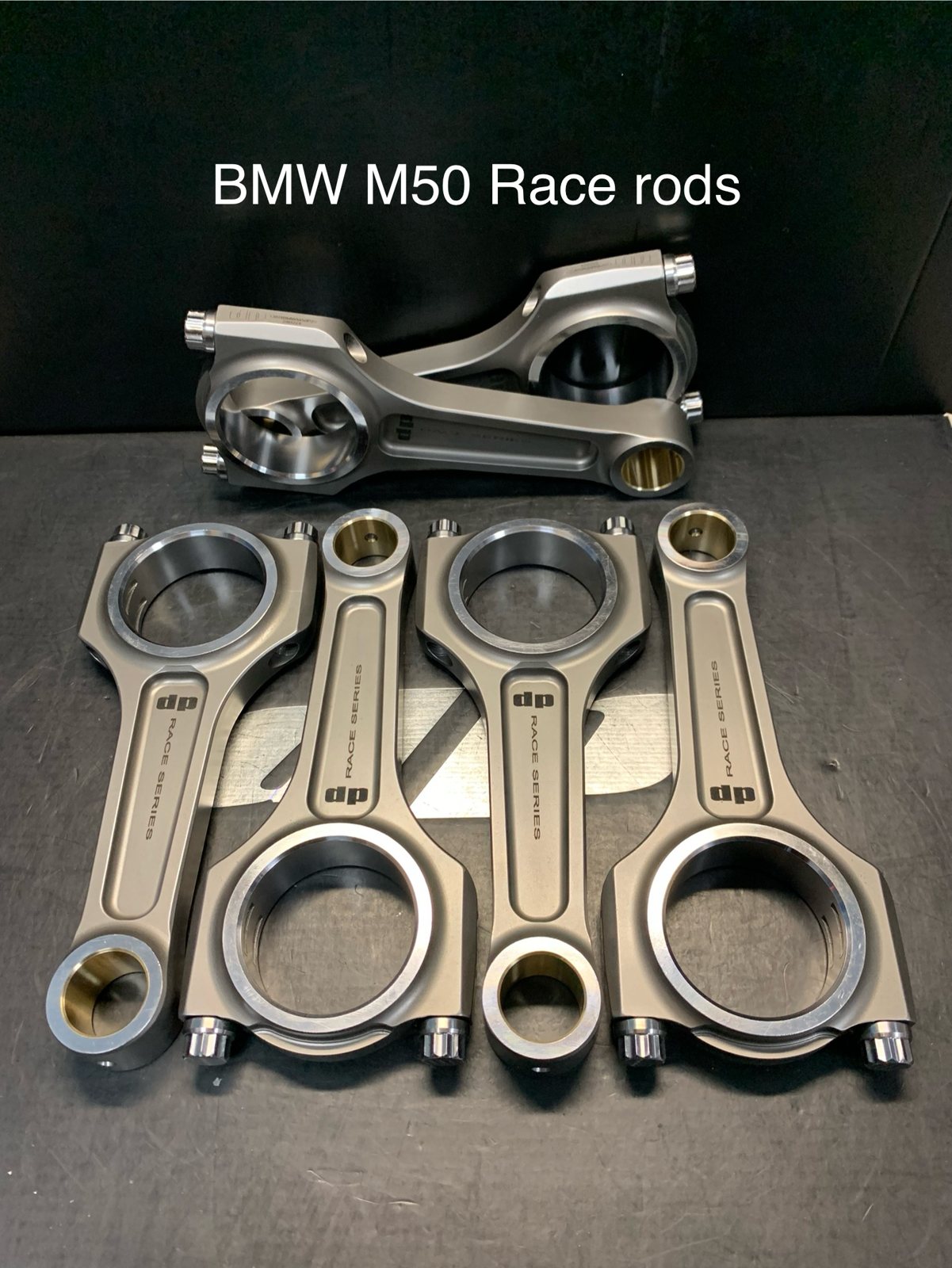

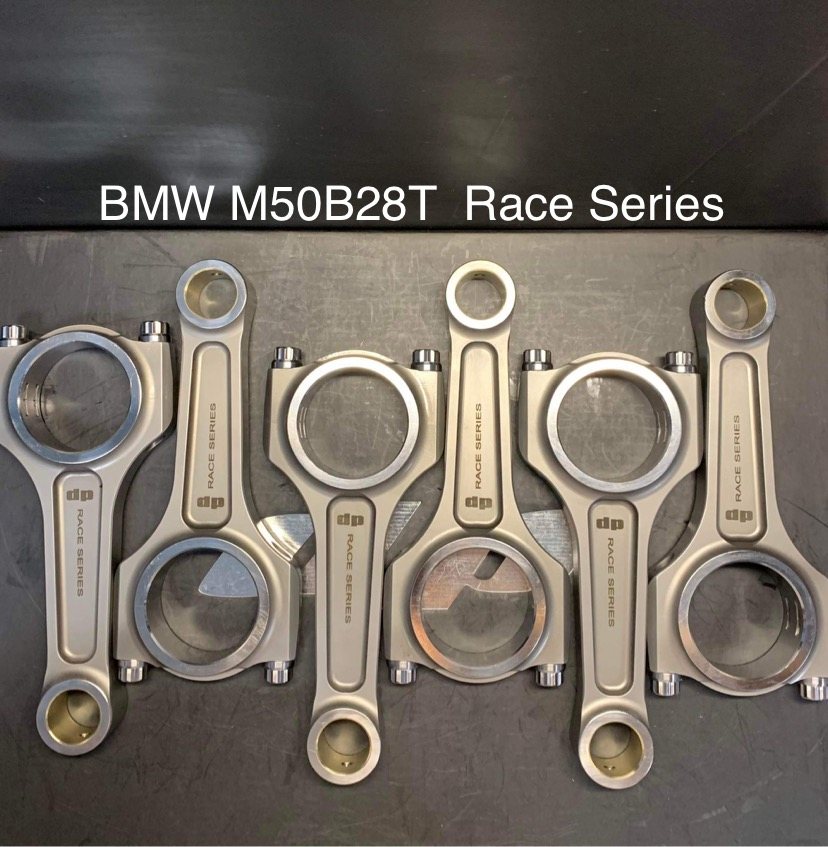

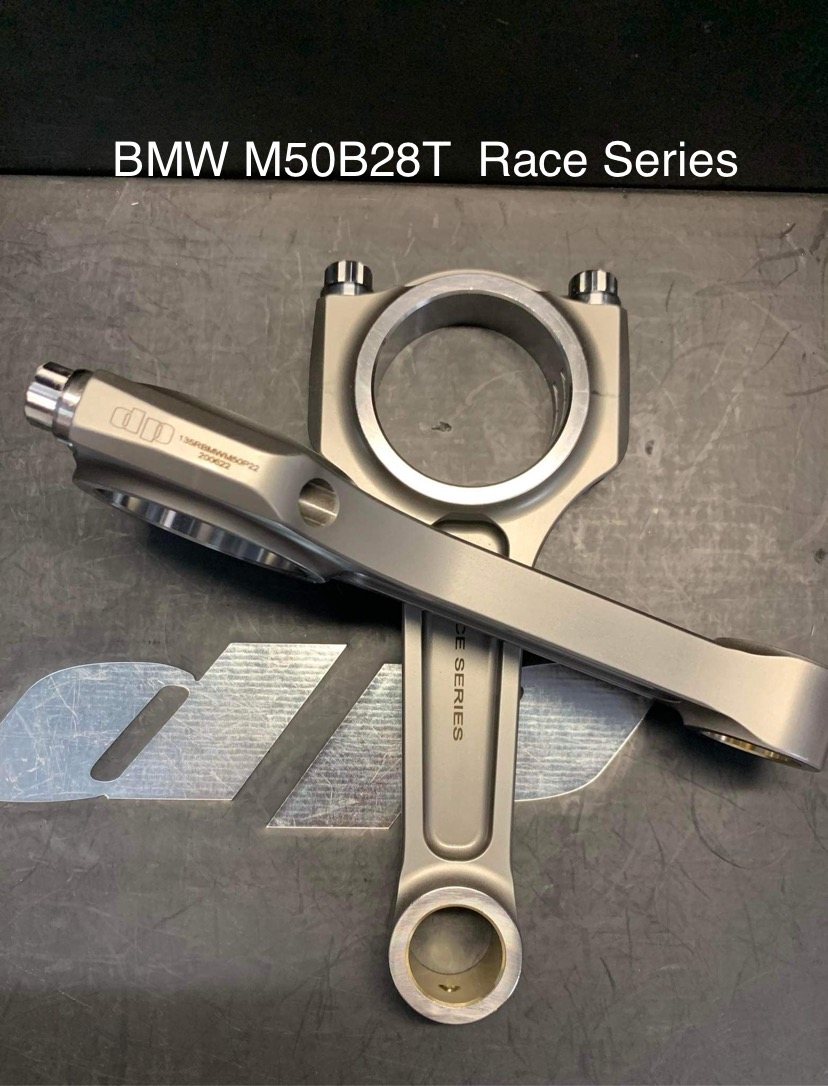

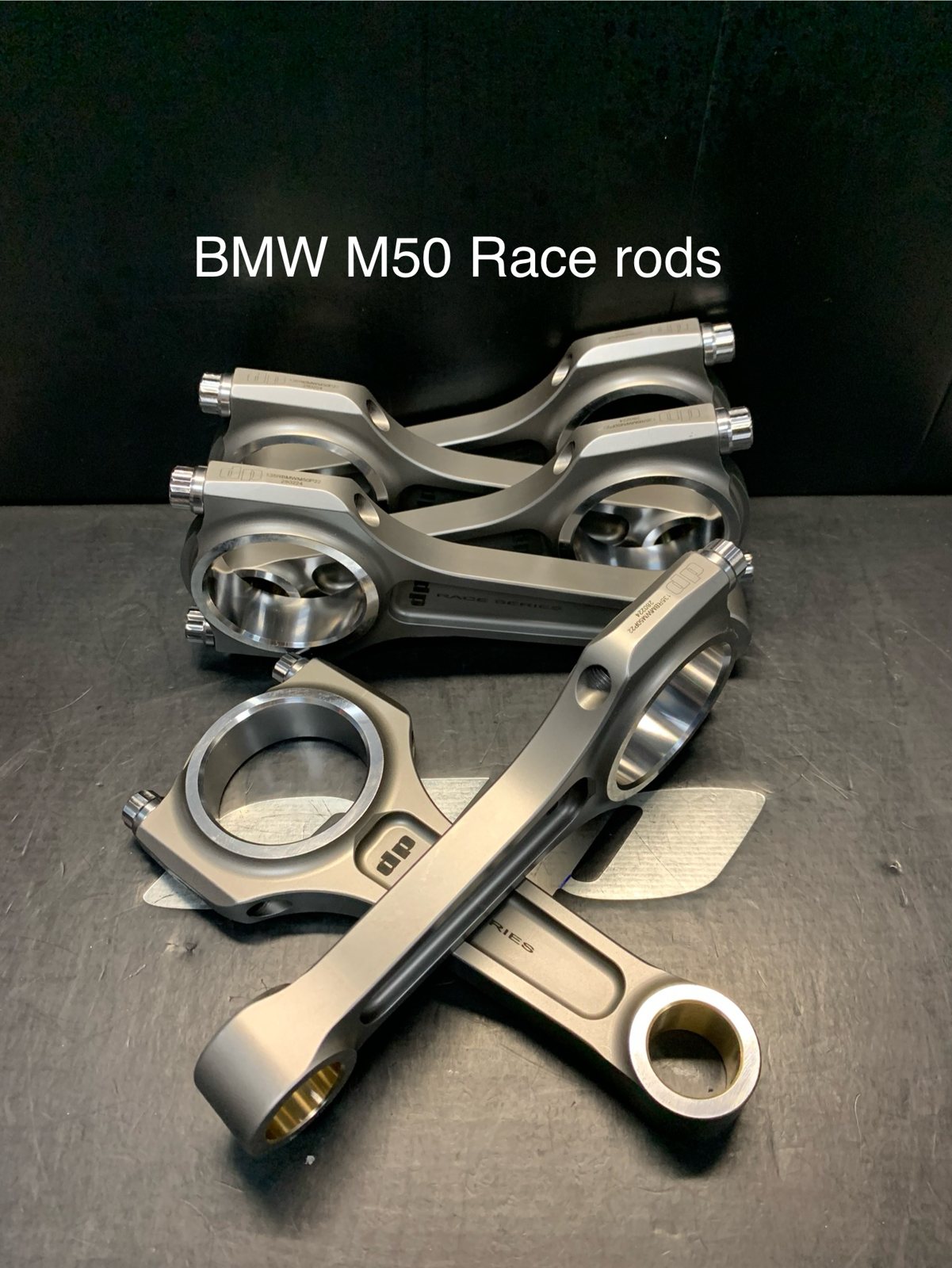

BMW M50B30 Race Series Rods

Race Series connecting rods for the BMW M50B30. Designed and made in-house at DP Engine Parts, Greece.

Category: Tags: , ,

Technical data — M50B30

Displacement2990cc (if S50B30 spec)
Block MaterialCast Iron (M50 block)
Cylinder CoatingNone
Block Height (mm)210.0
Bore Spacing (mm)91.0
Bore (mm)86.00
Stroke (mm)85.80
Rod Length (mm)142
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)53mm
Rod Big End Thickness (mm)21.89mm
Rod Small End Thickness (mm)21.89mm
Cylinders6
Compression Ratio~10.8 (if built to S50B30 spec)
Rod Length135, 140, 145
Pin Size (Ø)22
Rod DesignA, A-Beam
Bolt Size3/8
Big End Ø48
Big End Thickness21.89
Small End Thickness21.89

Race Series connecting rods for the BMW M50B30. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 22 mm
  • Rod length: 135/140/145 mm
  • Beam design: A / A–beam

Pair them with our BMW M50B30 pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.
