Fiat Bravo 16V Race Series Pistons
Fiat Bravo 16V Race Series Pistons

The picture may vary from the real product.

Fiat Bravo 16V Race Series Pistons

800,00€ (exc. Vat)

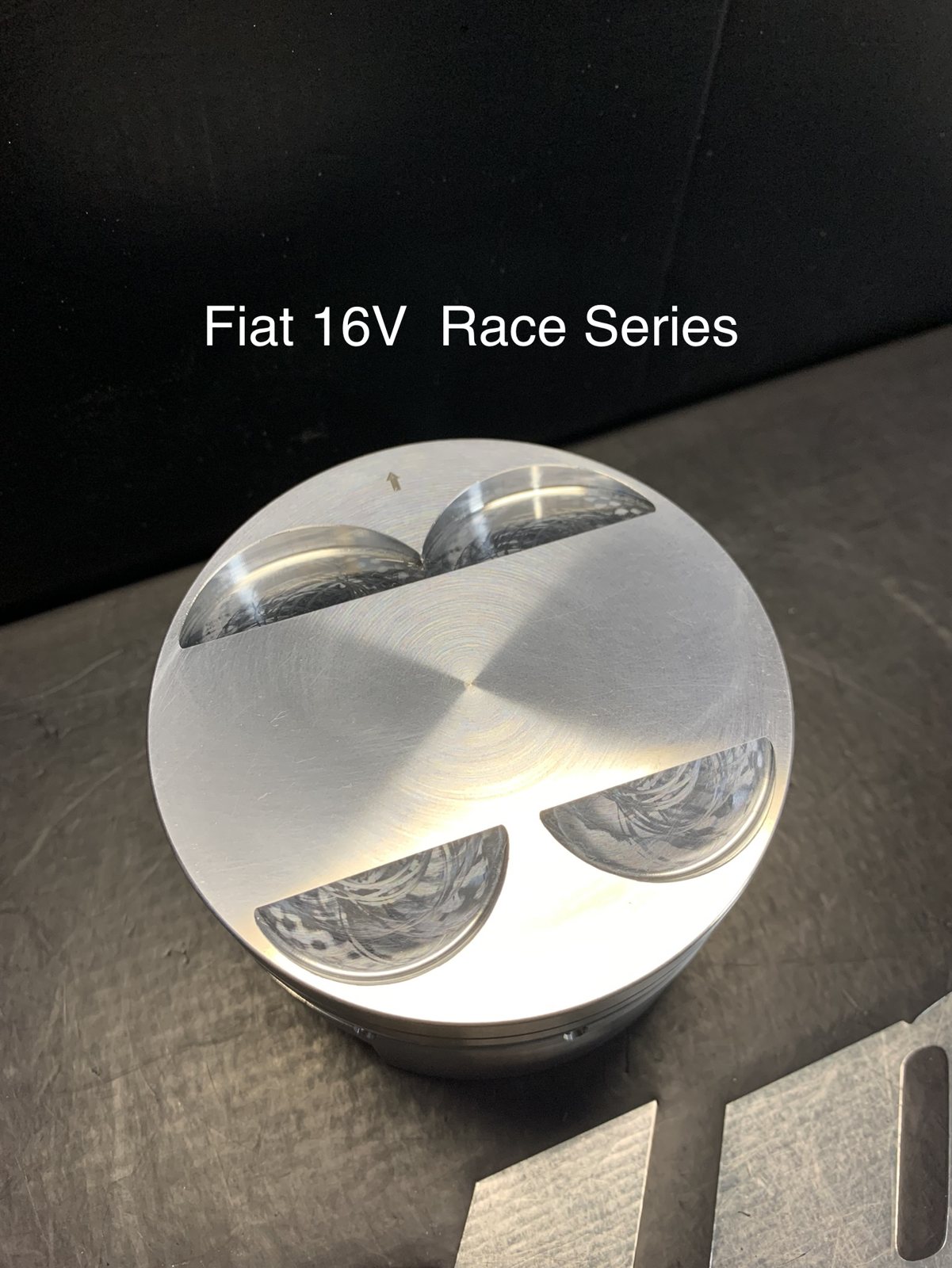

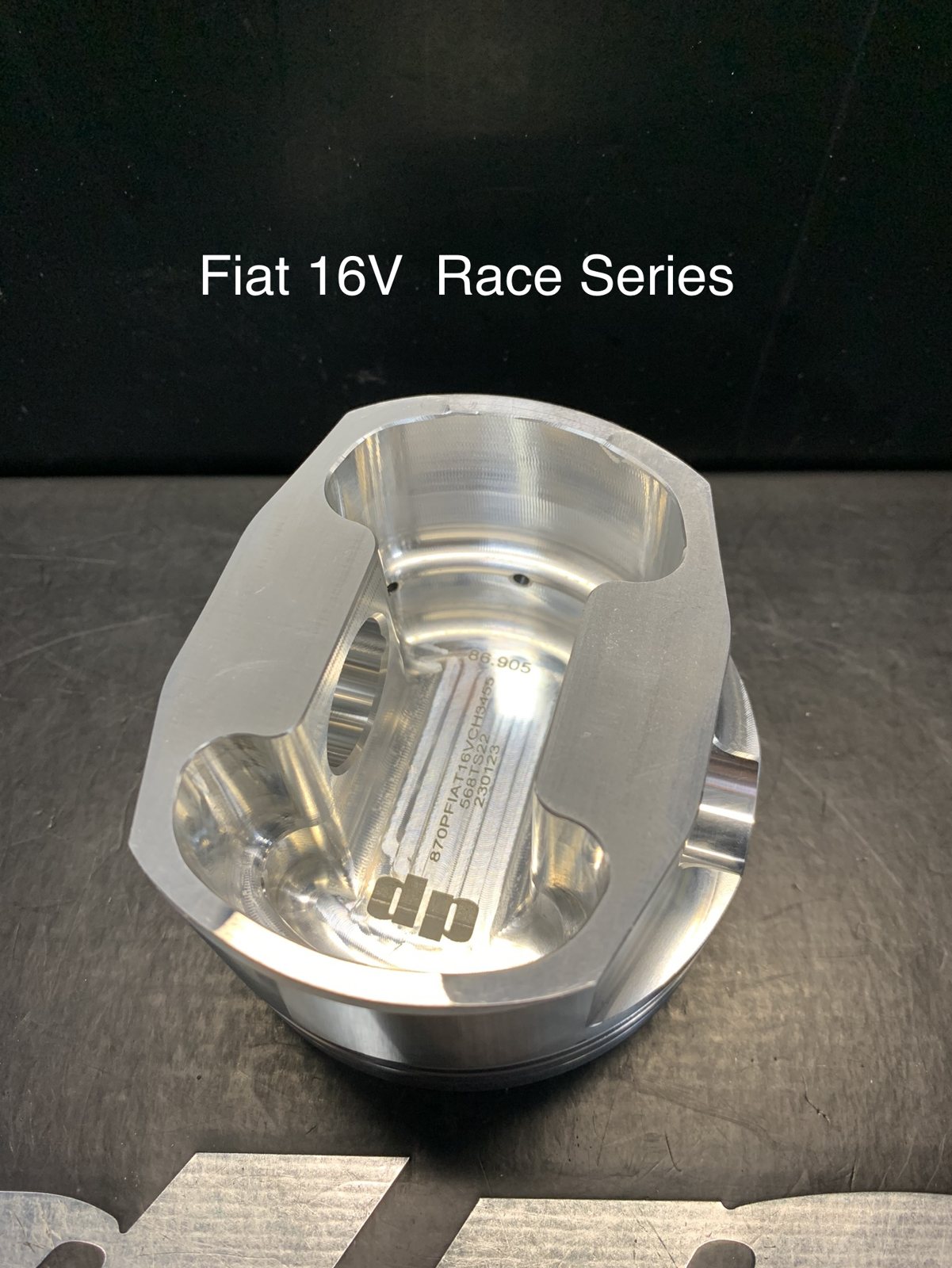

Race Series forged pistons for the Fiat Bravo 16V. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — FIAT BRAVO 16V

Displacement1581cc
Production Years1995–2001
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)86.40
Stroke (mm)67.40
Rod Length (mm)128.5
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)48.63mm
Rod Big End Thickness (mm)25.4mm
Cylinders4
CH (mm)33.3
Bore86.4, 86.5, 87
CH (Compression Height)33.3
CR (Compression Ratio)9.0
Pin Size (Ø)22
Pin Length50.5

Race Series forged pistons for the Fiat Bravo 16V. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86.4 / 86.5 / 87 mm
  • Piston pin: 22 mm

Pair them with our Fiat Bravo 16V connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race
Bore

86.4, 86.5, 87
