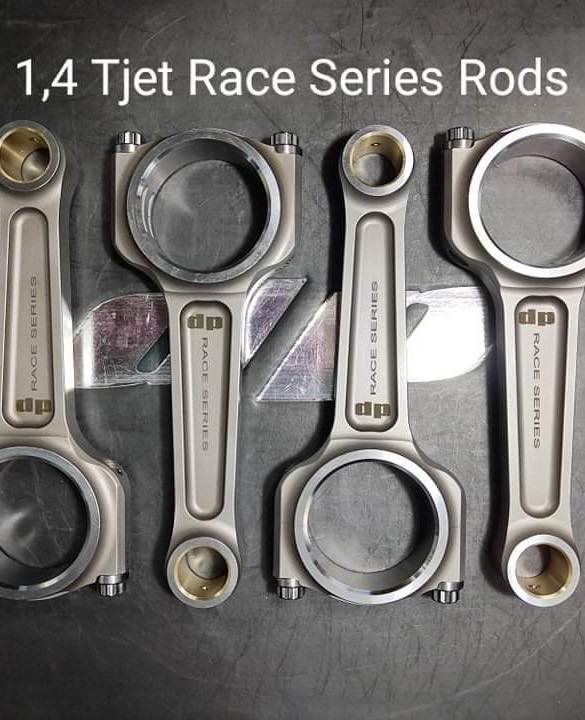

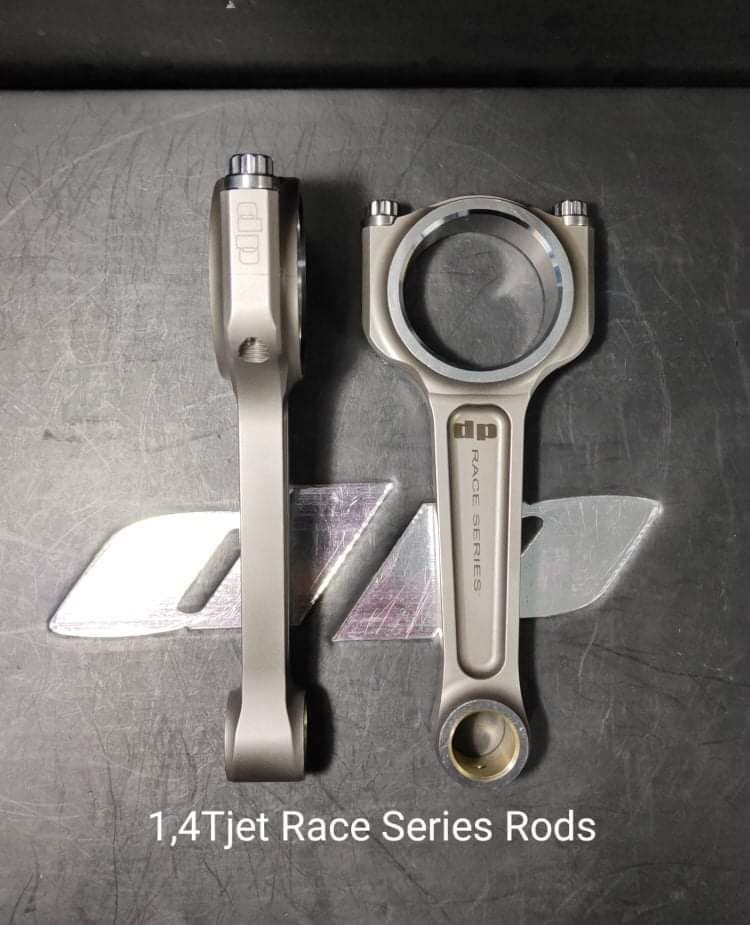

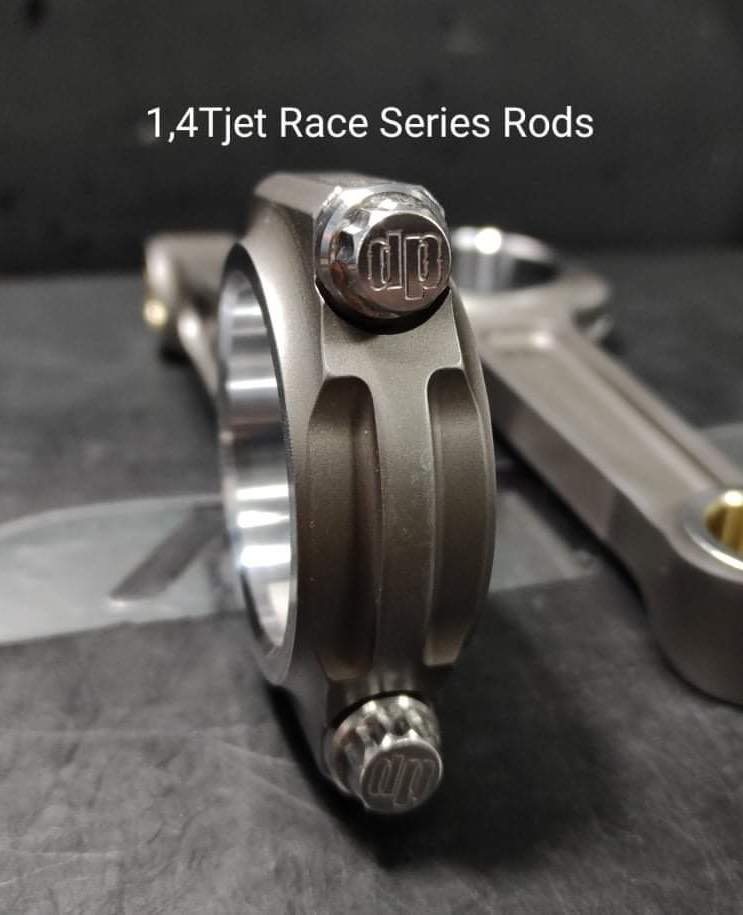

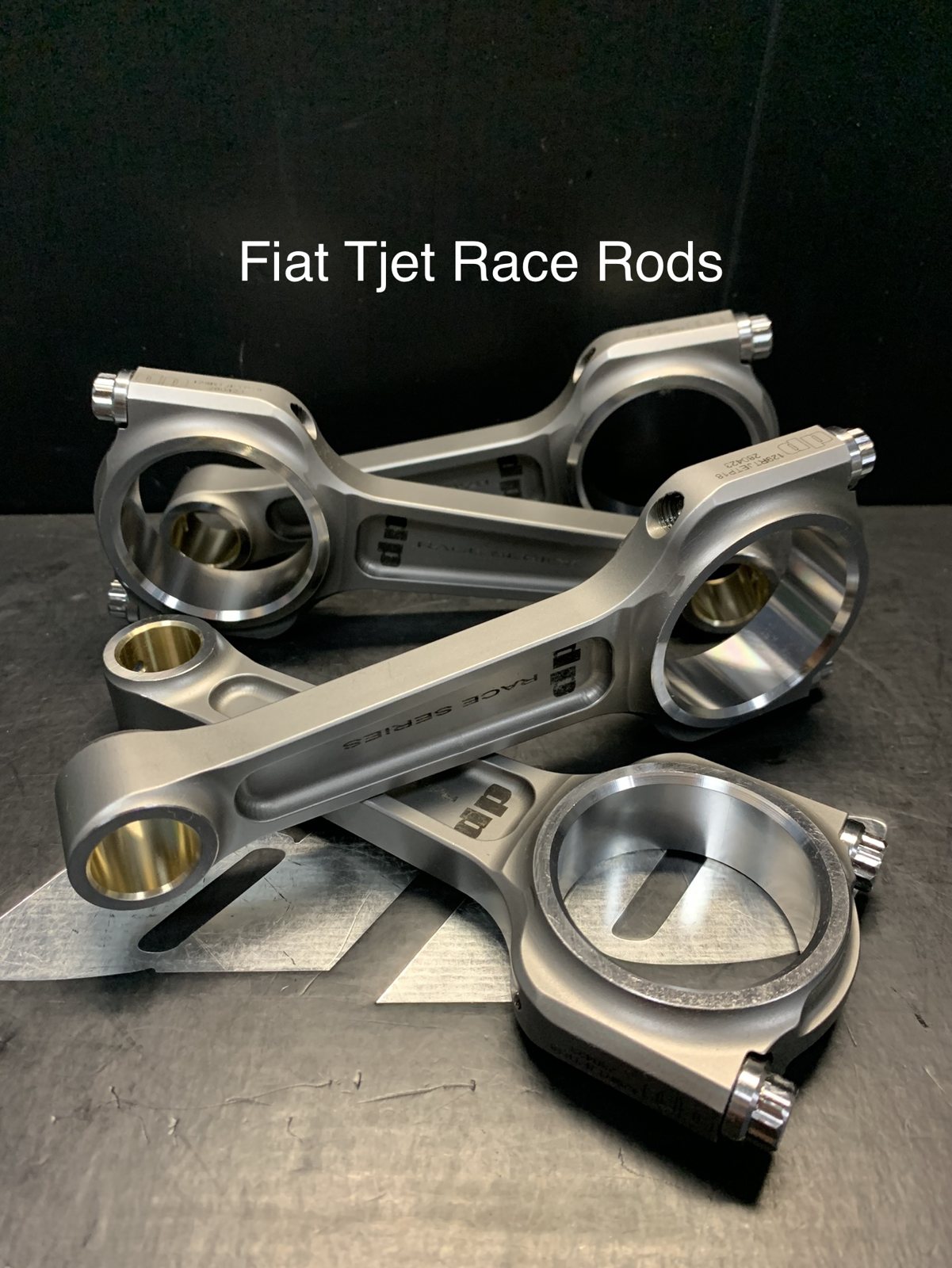

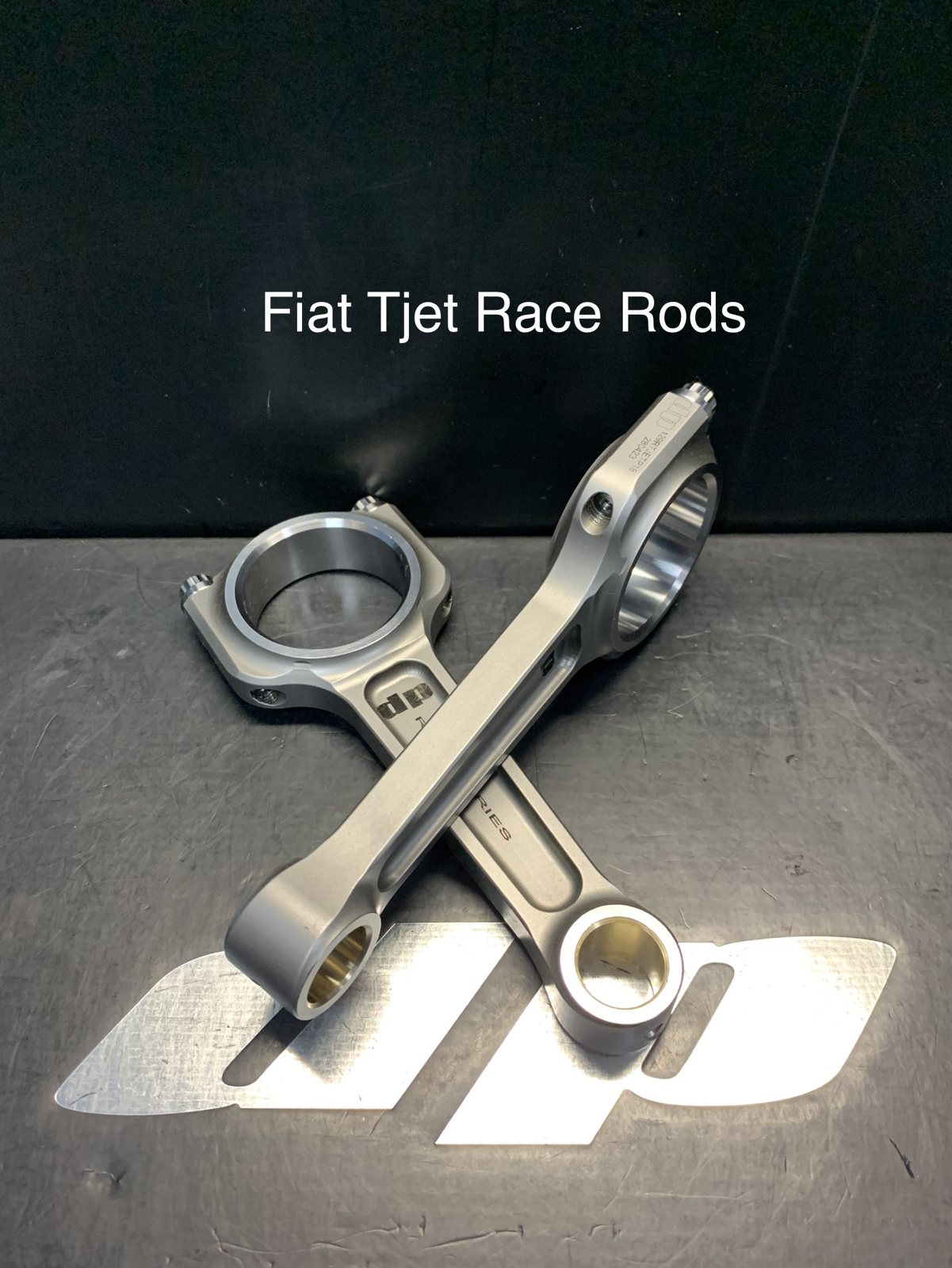

FIAT T-Jet 1.4 A-Beam Conrods

880,00€ (exc. Vat)

Race Series connecting rods for the FIAT T-Jet 1.4. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,
🌀 Turbo

Technical data — TJET 1.4

Displacement1368cc
Production Years2007–present
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)72.00
Stroke (mm)84.00
Rod Length (mm)129
Wrist Pin Diameter (mm)18
Rod Big End Bore (mm)45.13mm
Rod Big End Thickness (mm)21.7mm (B.E width)
Cylinders4
CH (mm)26.8
Compression Ratio9.6 (OEM factory not independently distinguished)
Rod Length129
Pin Size (Ø)18
Rod DesignA-Beam
Big End Ø45.13
Big End Thickness21.7
Small End Thickness21.7

Race Series connecting rods for the FIAT T-Jet 1.4 (turbo). Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 18 mm
  • Rod length: 129 mm
  • Beam design: A–beam

Pair them with our FIAT T-Jet 1.4 pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race, Pro, Aluminum Pro
Design

A-Beam
