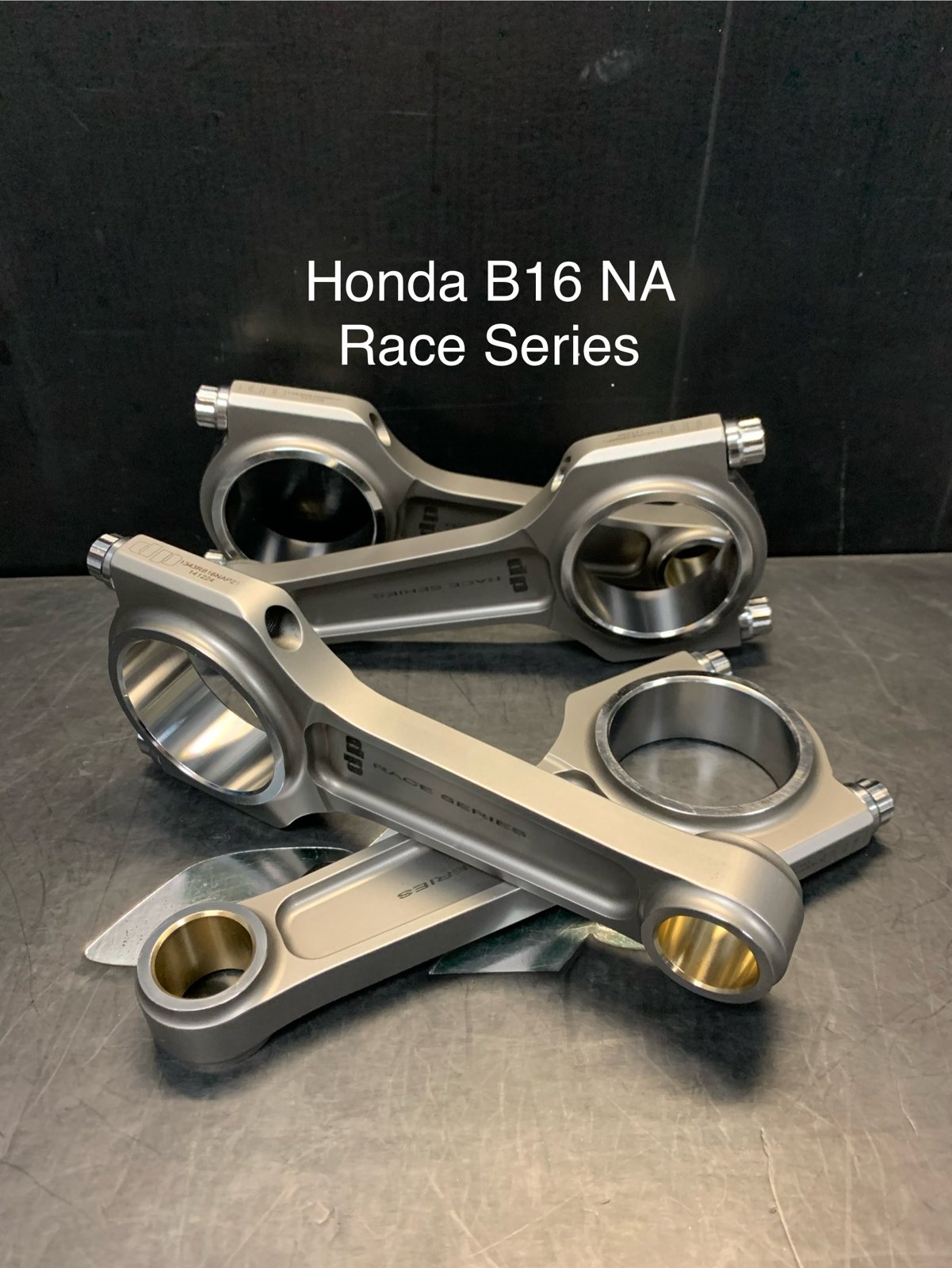

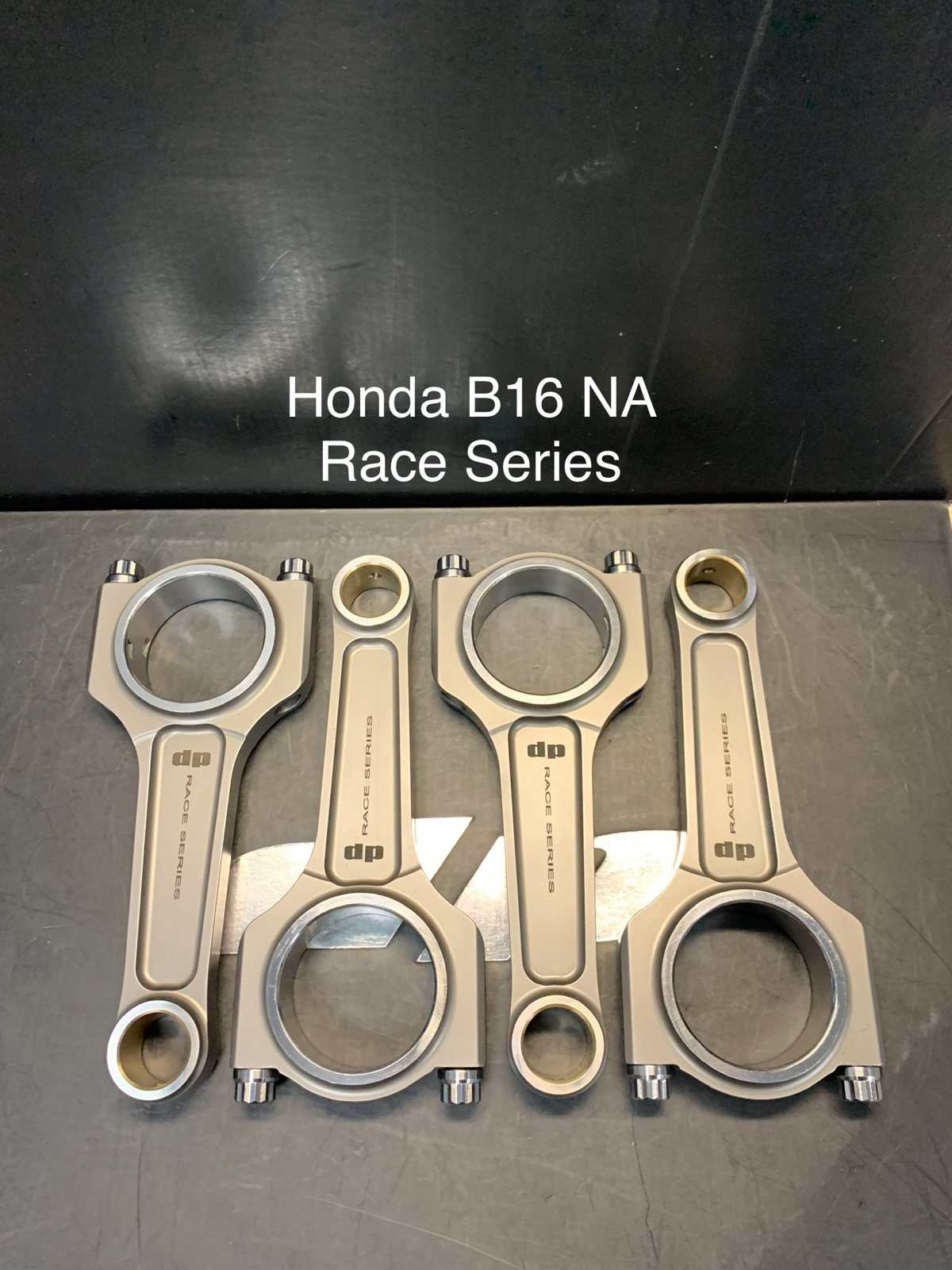

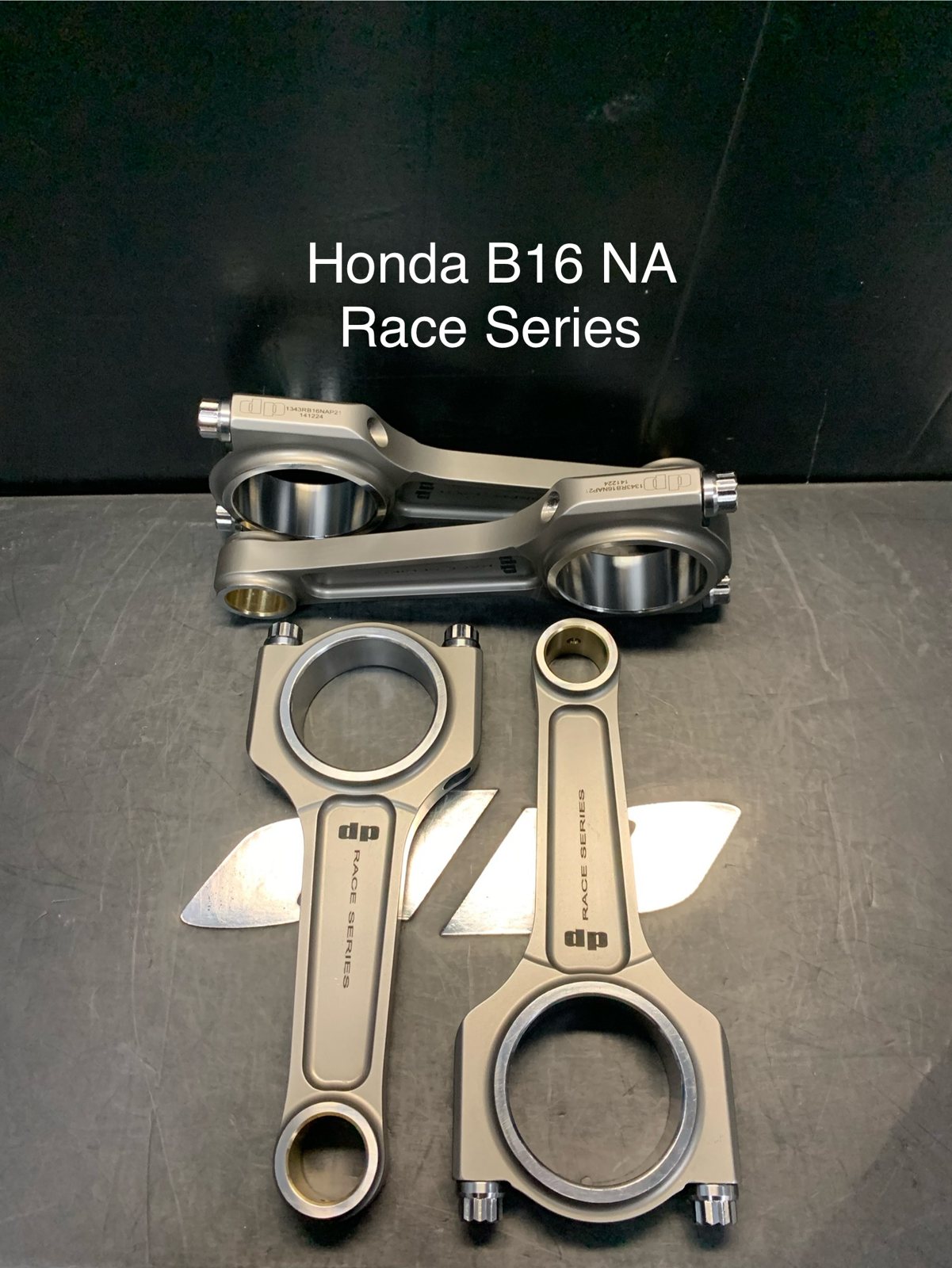

Honda B16 NA Race Series Rods
Honda B16 NA Race Series Rods
Honda B16 NA Race Series Rods

The picture may vary from the real product.

Honda B16 NA Race Series Rods

880,00€ (exc. Vat)

Race Series connecting rods for the Honda B16 NA. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — B16 NA

Displacement1595–1834cc (varies by config)
Production Years1989–2001
Block MaterialAluminium (cast-iron sleeves)
Bore (mm)81.00 (OEM — B16A/B18C); DP overbores to 85
Stroke (mm)77.4 (B16A) / 87.2 (B18C) / 89 (B20 crank swap) / 92 (long-stroke build)
Rod Length (mm)138 (B18C) / 137 (B20 swap) / 134–134.36 (B16) / 138 (92mm stroke build)
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)48mm
Rod Big End Thickness (mm)23.9mm (B16/B20) / 21.9mm (B18C)
Cylinders4
CH (mm)30 (77.4/87.2/89mm stroke configs) / 27.5 (92mm stroke config)
Compression Ratio10.2–10.4 (B16A) / 10.6–11.1 (B18C) OEM factory
Rod Length138
Pin Size (Ø)21
Rod DesignA-Beam

Race Series connecting rods for the Honda B16 NA. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 21 mm
  • Rod length: 138 mm
  • Beam design: A–beam

Pair them with our Honda B16 NA pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race
Design

A-Beam
