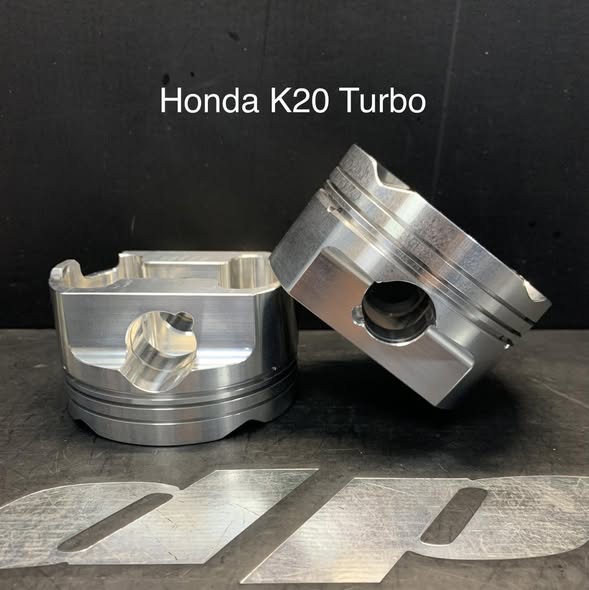

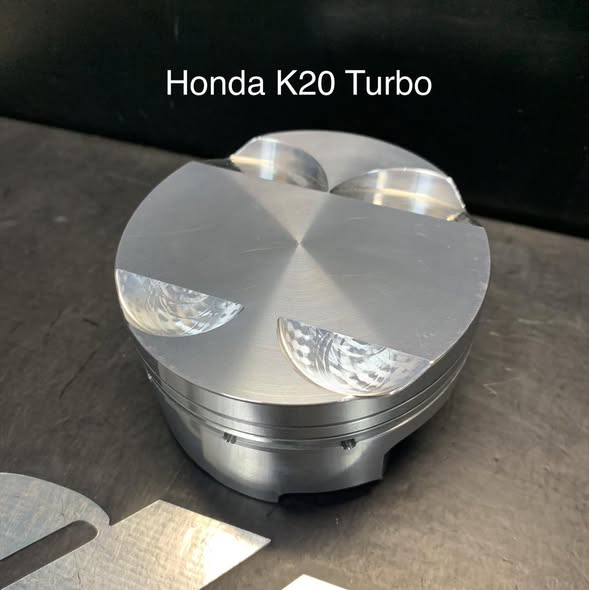

Honda K20 TURBO Race Series Pistons
Honda K20 TURBO Race Series Pistons - Image 2
Honda K20 TURBO Race Series Pistons - Image 3

The picture may vary from the real product.

,

Honda K20 TURBO Race Series Pistons

Price range: 800,00€ through 840,00€ (exc. Vat)

Race Series forged pistons for the Honda K20 TURBO. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,
🌀 Turbo

Technical data — K20 TURBO

Displacement1998cc (K20) / 2354cc (K24)
Production Years2001–present
Block MaterialAluminium (cast-iron sleeves)
Bore (mm)86.00 (K20) / 87.00 (K24)
Stroke (mm)86.00 (K20) / 99.00 (K24)
Rod Length (mm)139 (K20) / 152 (K24)
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)51mm
Rod Big End Thickness (mm)19.8mm
Cylinders4
CH (mm)30
Bore86, 86.5, 87, 87.5, 88, 89
CH (Compression Height)30
CR (Compression Ratio)9.2, 9.6
Pin Size (Ø)22
Pin Part Number522PP22D11
Pin Length52.2
Pin Combinations522PP22D11|race

Race Series forged pistons for the Honda K20 TURBO (turbo). Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86 / 86.5 / 89 / 87 / 87.5 / 88 / 88.5 mm
  • Piston pin: 22 mm

Pair them with our Honda K20 TURBO connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 5 kg
Series

Performance, Race, Pro
Pin Diameter

22
Bore

86, 86.5, 89, 87, 87.5, 88, 88.5
Pin Size

22
Compression Ratio

9.2, 9.6
