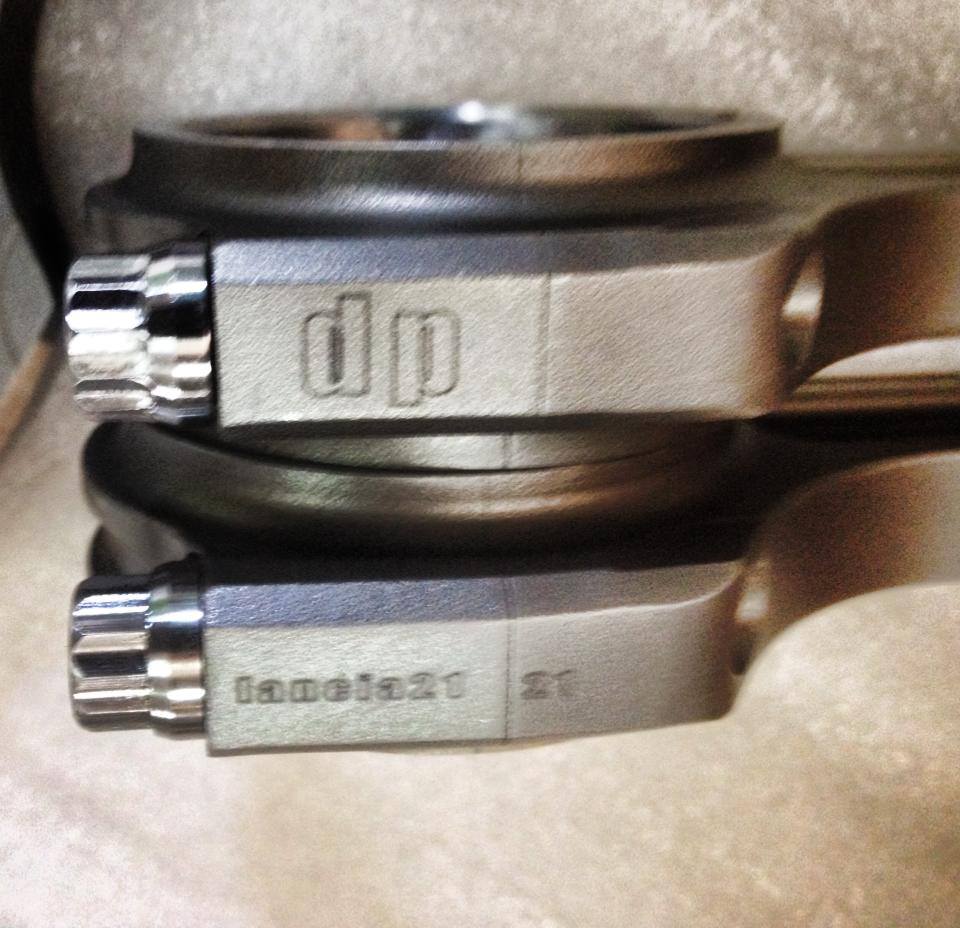

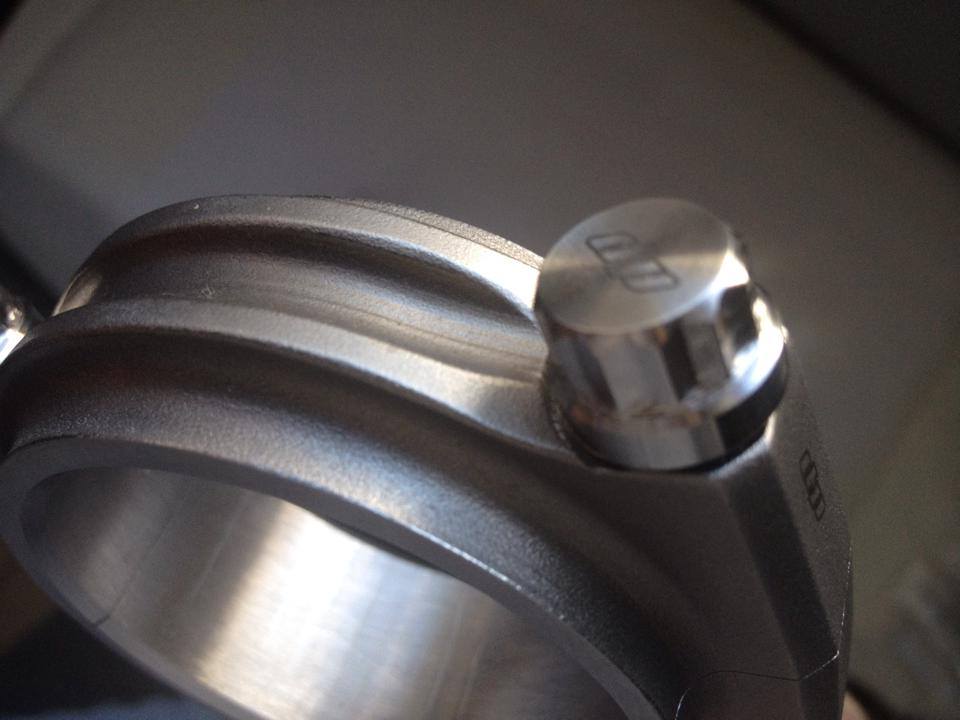

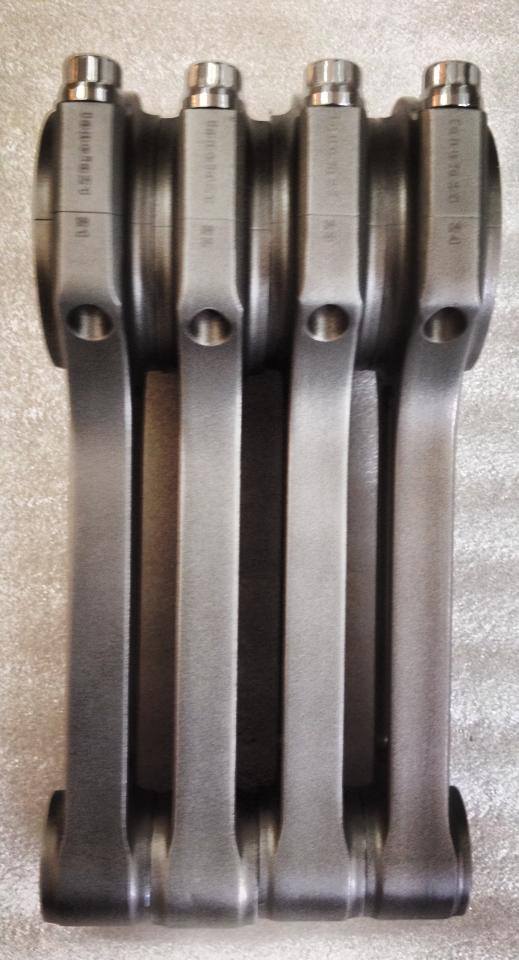

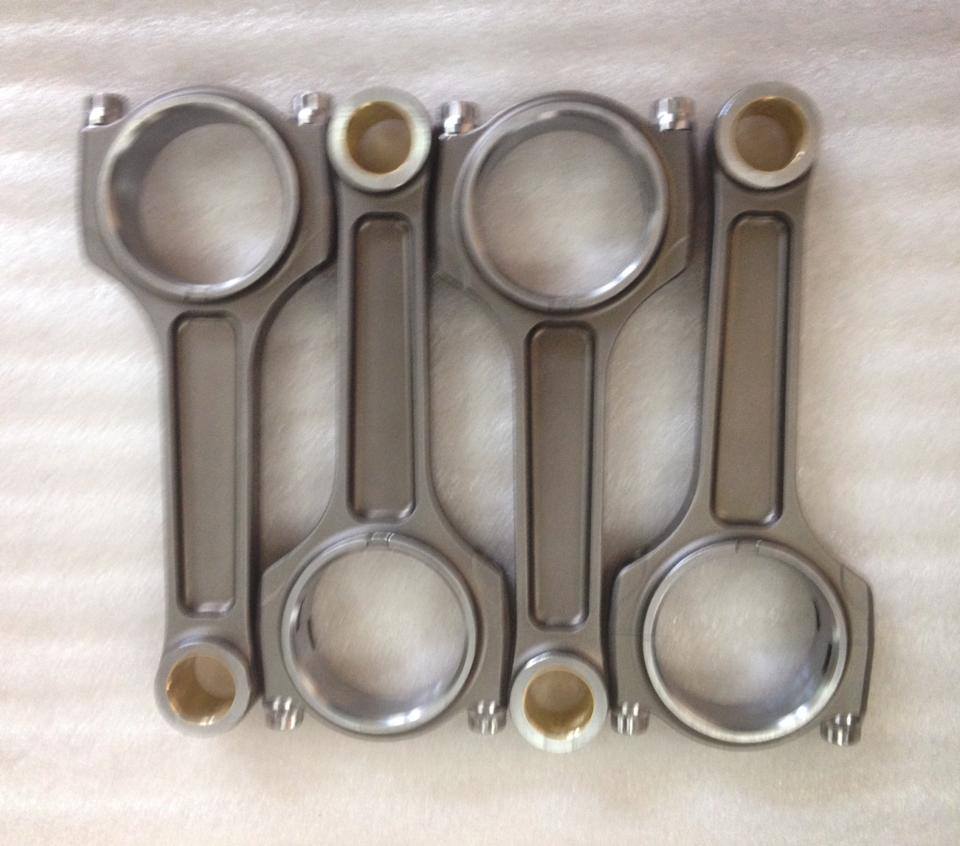

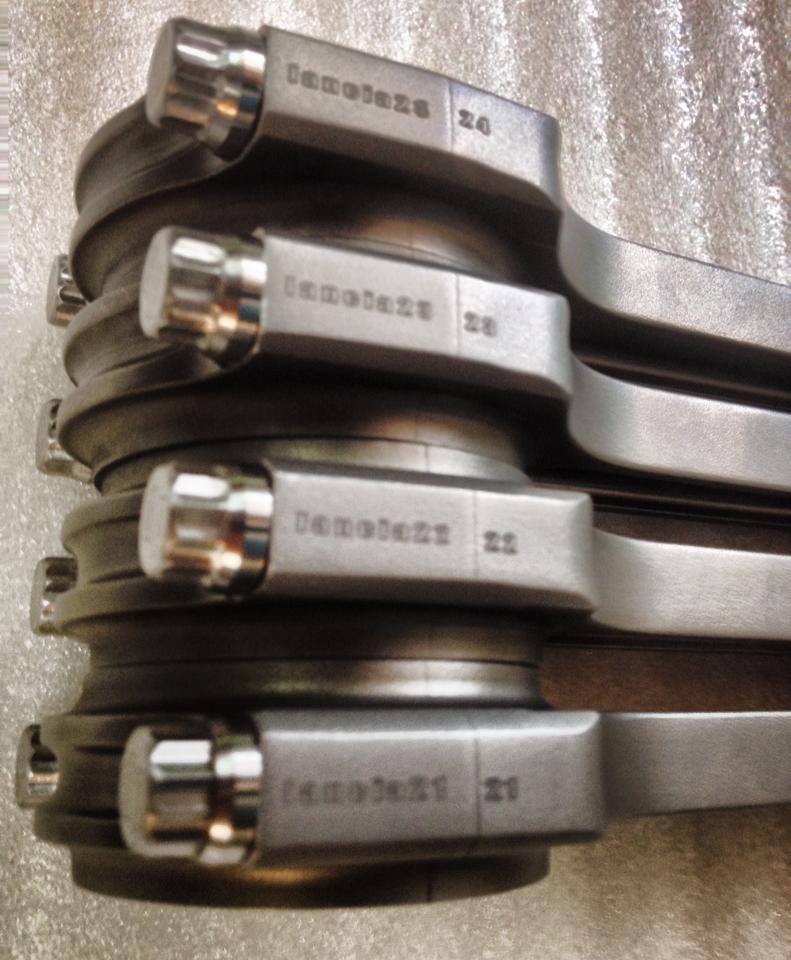

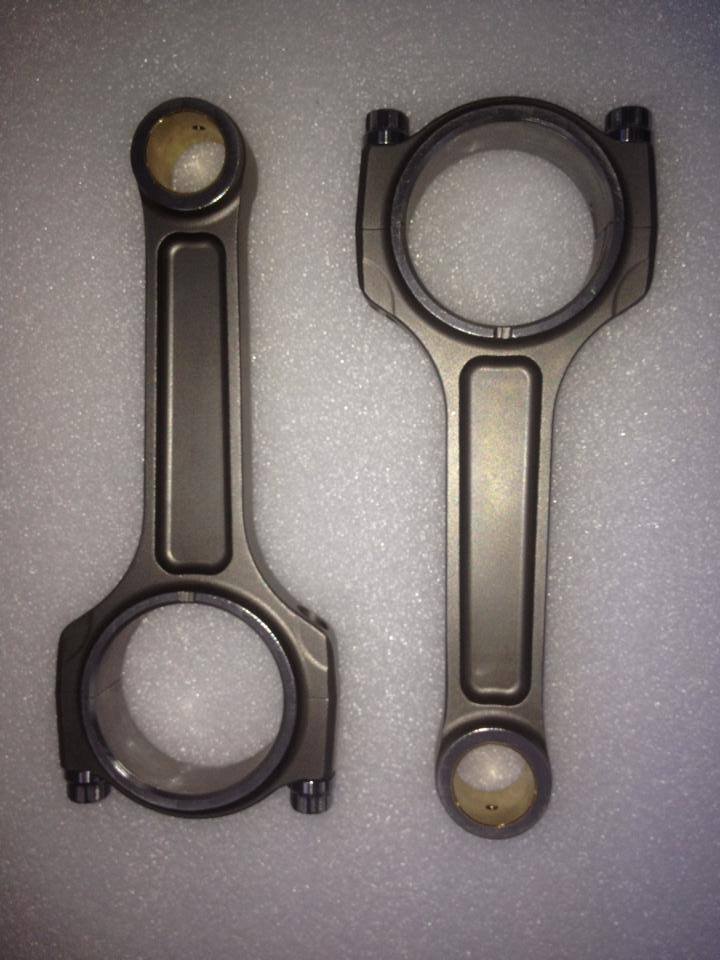

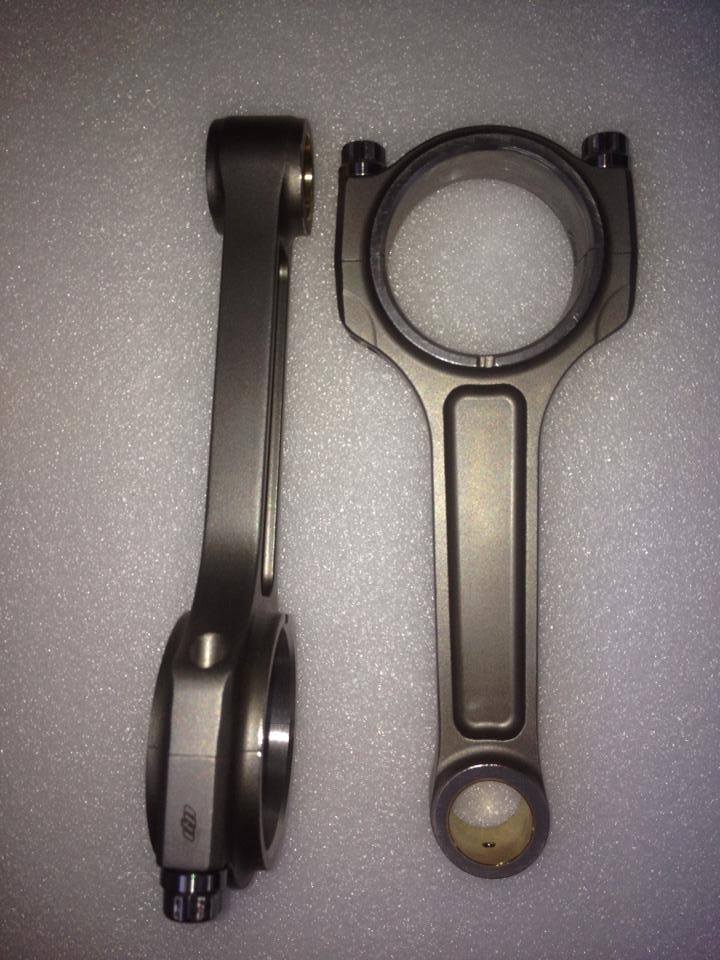

Lancia Delta Integrale 2.0 16V Race Series Rods
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 2
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 3
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 4
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 5
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 6
Lancia Delta Integrale 2.0 16V Race Series Rods - Image 7

The picture may vary from the real product.

Lancia Delta Integrale 2.0 16V Race Series Rods

900,00€ (exc. Vat)

Race Series connecting rods for the Lancia Delta Integrale 2.0 16V. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — INTEGRALE 2LT 16V

Displacement1995cc
Production Years1987–1995
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)84.00
Stroke (mm)90.00
Rod Length (mm)145 (standard)
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)53.9mm
Rod Big End Thickness (mm)25.7mm
Cylinders4
CH (mm)38.94 (OEM-equivalent aftermarket spec)
Compression Ratio7.5 (OEM-equivalent aftermarket spec)
Rod Length145
Pin Size (Ø)22
Rod DesignA-Beam
Big End Ø53.9
Big End Thickness25.7
Small End Thickness25.7

Race Series connecting rods for the Lancia Delta Integrale 2.0 16V. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 22 mm
  • Rod length: 145 mm
  • Beam design: A–beam

Pair them with our Lancia Delta Integrale 2.0 16V pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A-Beam
