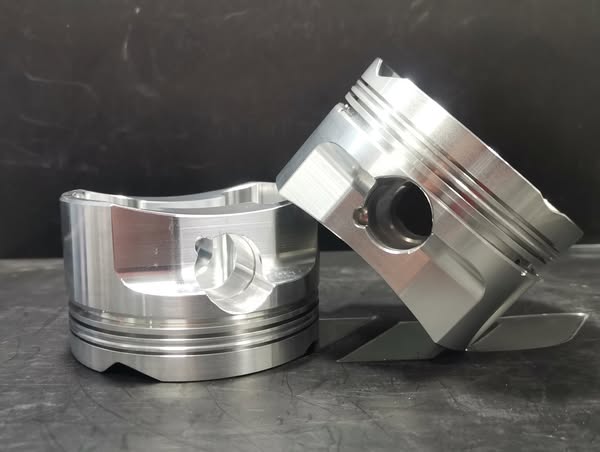

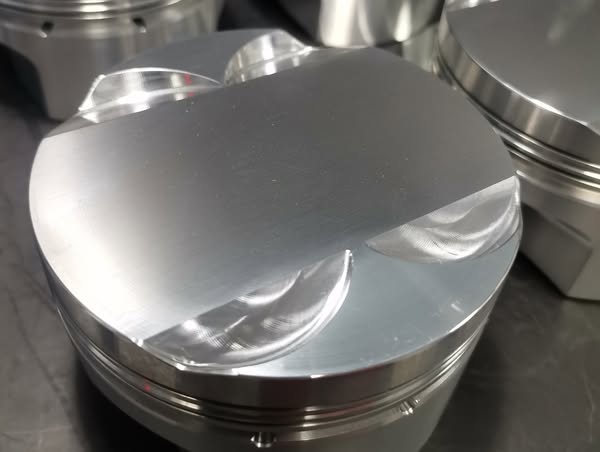

MERCEDES M104 3.0L Race Series Pistons
MERCEDES M104 3.0L Race Series Pistons - Image 2
MERCEDES M104 3.0L Race Series Pistons - Image 3

The picture may vary from the real product.

,

MERCEDES M104 3.0L Race Series Pistons

1.260,00€ (exc. Vat)

Race Series forged pistons for the MERCEDES M104 3.0L. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,
🌀 Turbo

Technical data — M104 3.0L

Displacement2960cc
Production Years1988–1999
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)89.0
Stroke (mm)80.2
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)22mm (diameter only — thickness not listed)
Cylinders6
CH (mm)33
Compression Ratio10.0
Bore89
CH (Compression Height)33
CR (Compression Ratio)10
Pin Size (Ø)22
Pin Part Number555PP22D10
Pin Length55.5
Pin Combinations555PP22D10|race

Race Series forged pistons for the MERCEDES M104 3.0L (turbo). Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 89 mm
  • Piston pin: 22 mm

Pair them with our MERCEDES M104 3.0L connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 5 kg
Series

Performance, Race, Pro
Pin Diameter

22
Bore

89
Pin Size

22
