MINI Cooper R53 Race Series Rods

880,00€ (exc. Vat)

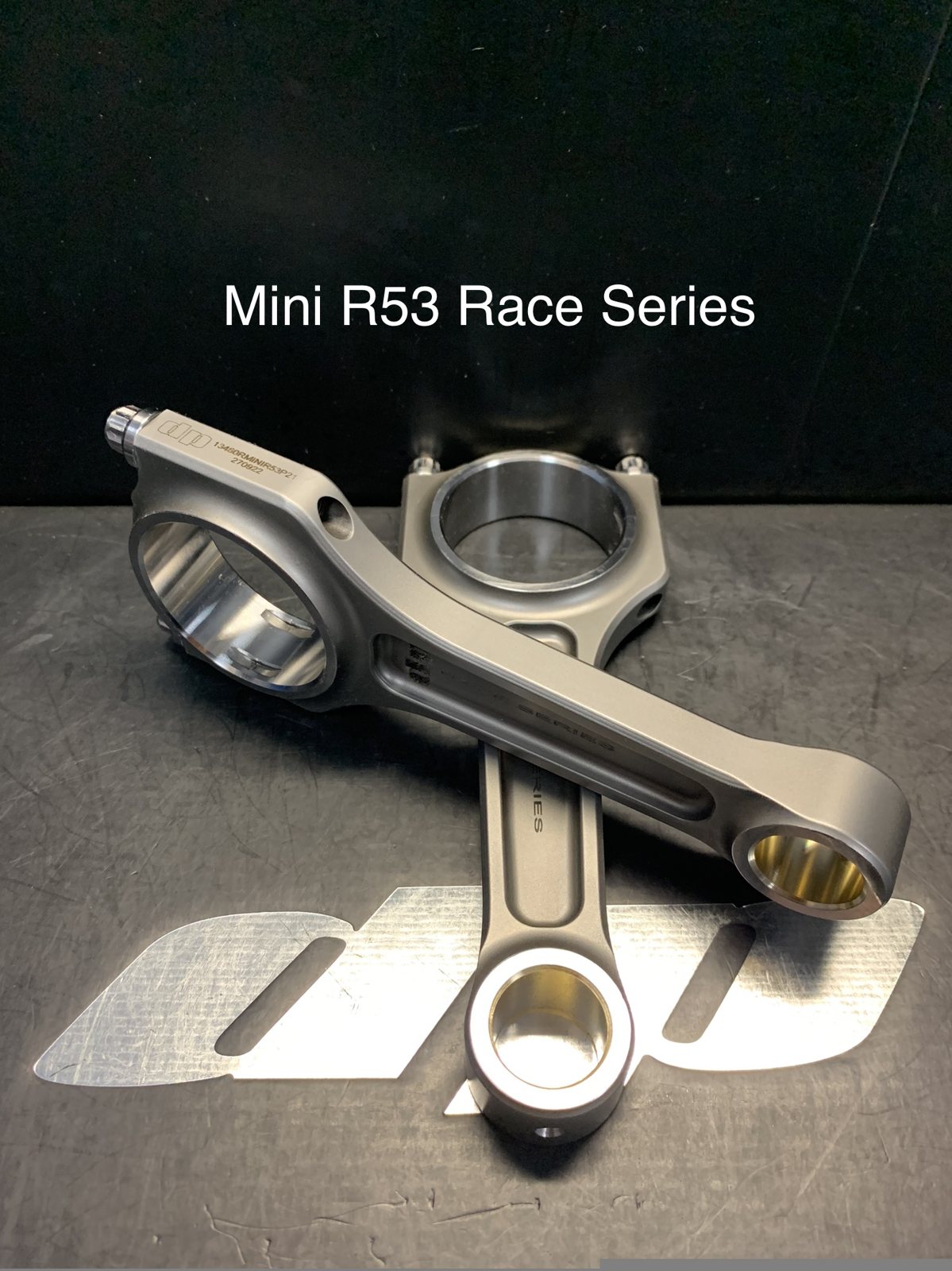

Race Series connecting rods for the MINI Cooper R53. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — MINI R53

Displacement1598cc
Production Years2002–2006
Block MaterialAluminium (cast-iron liners)
Cylinder CoatingIron liner (not Nikasil)
Bore (mm)77.00
Stroke (mm)85.80
Rod Length (mm)131.5
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)49mm (per DP rods reference "49002")
Rod Big End Thickness (mm)23.22mm
Rod Small End Thickness (mm)21.08mm
Cylinders4
CH (mm)26.5
Compression Ratio8.3
Rod Length131.5
Pin Size (Ø)21
Rod DesignA, A-Beam
Bolt Size5/16
Big End Ø49
Big End Thickness23.22
Small End Thickness21.08

Race Series connecting rods for the MINI Cooper R53. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 21 mm
  • Rod length: 131.5 mm
  • Beam design: A / A–beam

Pair them with our MINI Cooper R53 pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A, A-Beam
