Mitsubishi Evo 4G63 Race Series Pistons

Name: Mitsubishi Evo 4G63 Race Series Pistons | DP Engine Parts
Availability: InStock

Price range: 740,00€ through 800,00€ (exc. Vat)

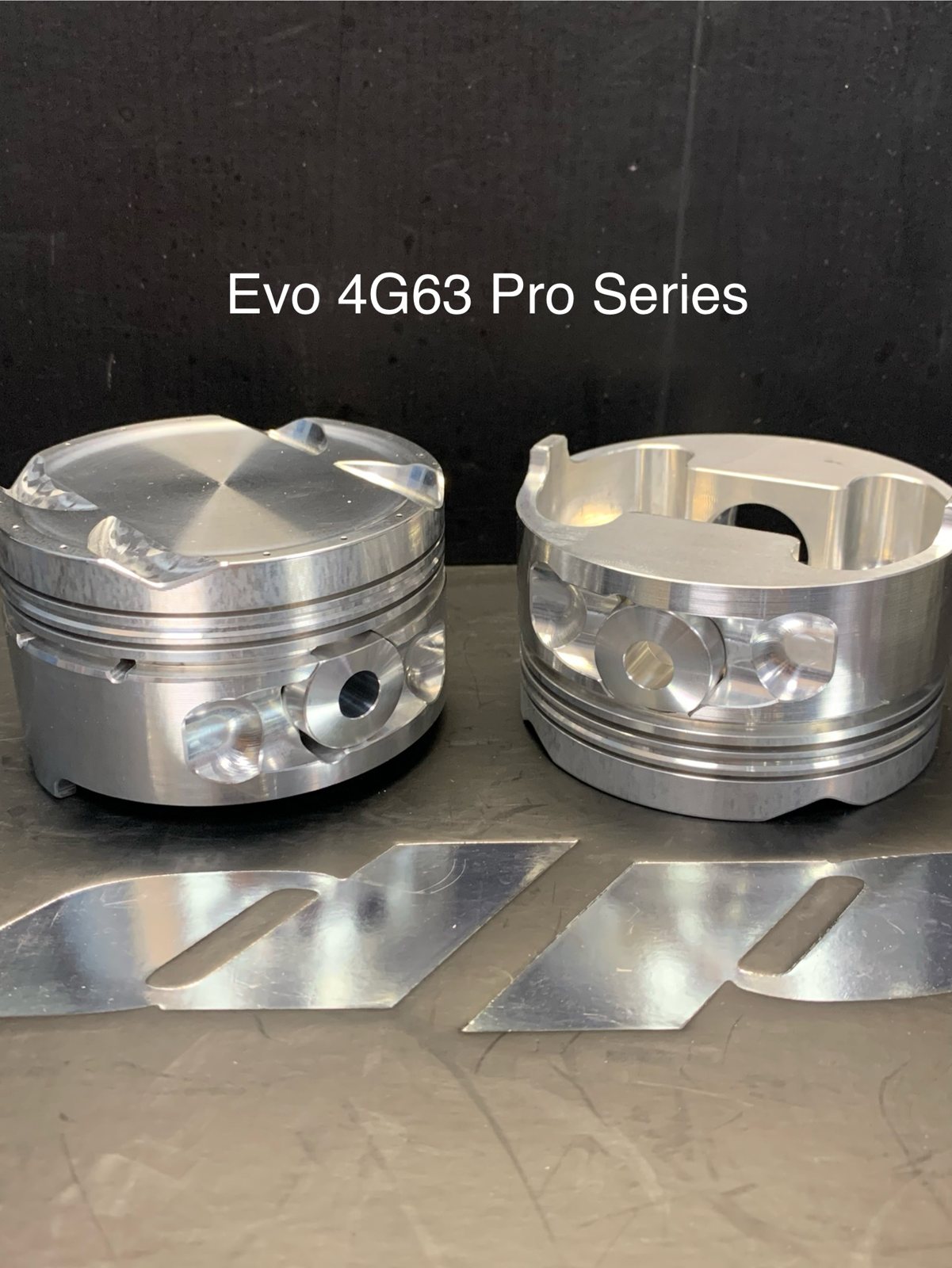

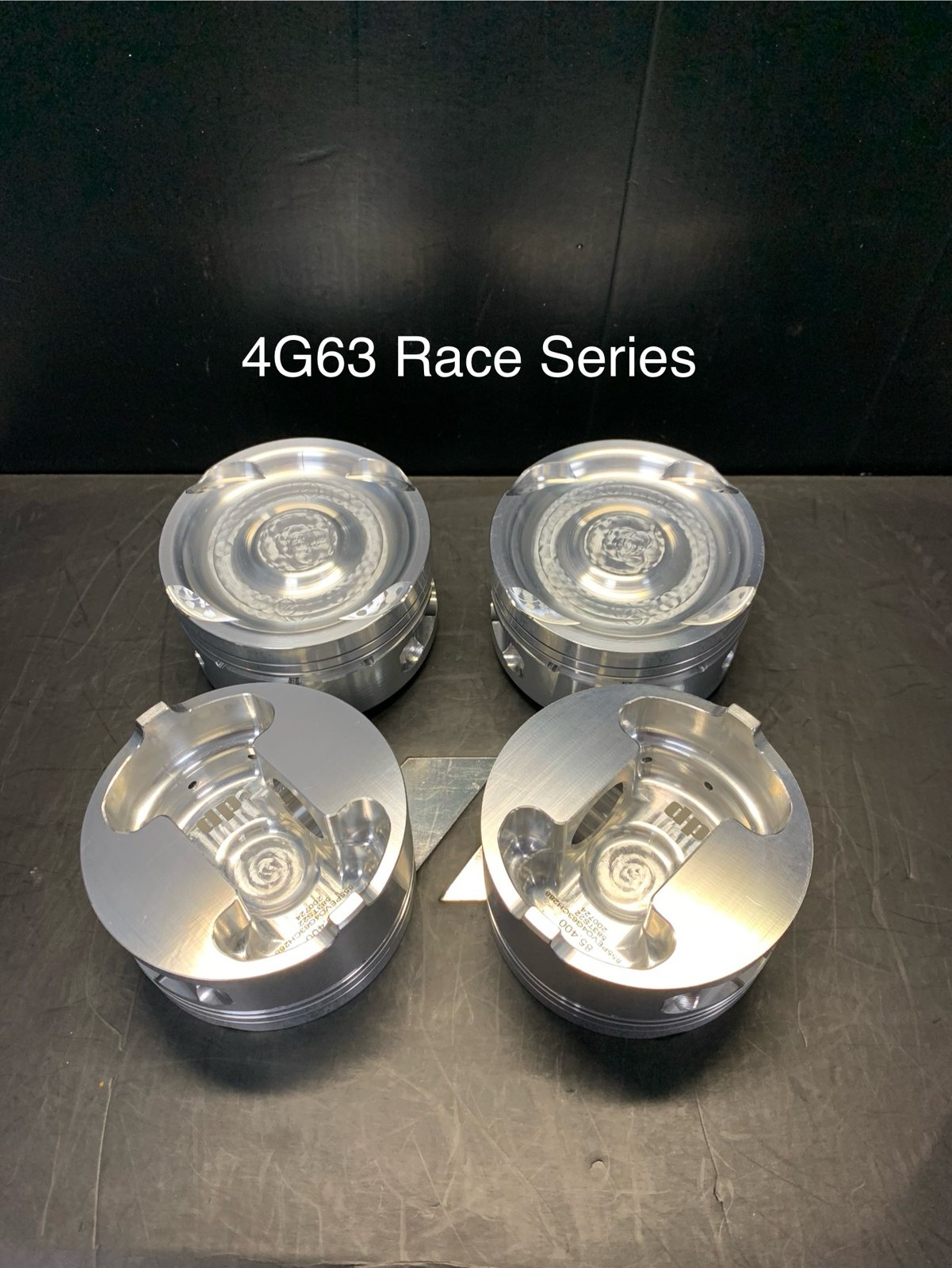

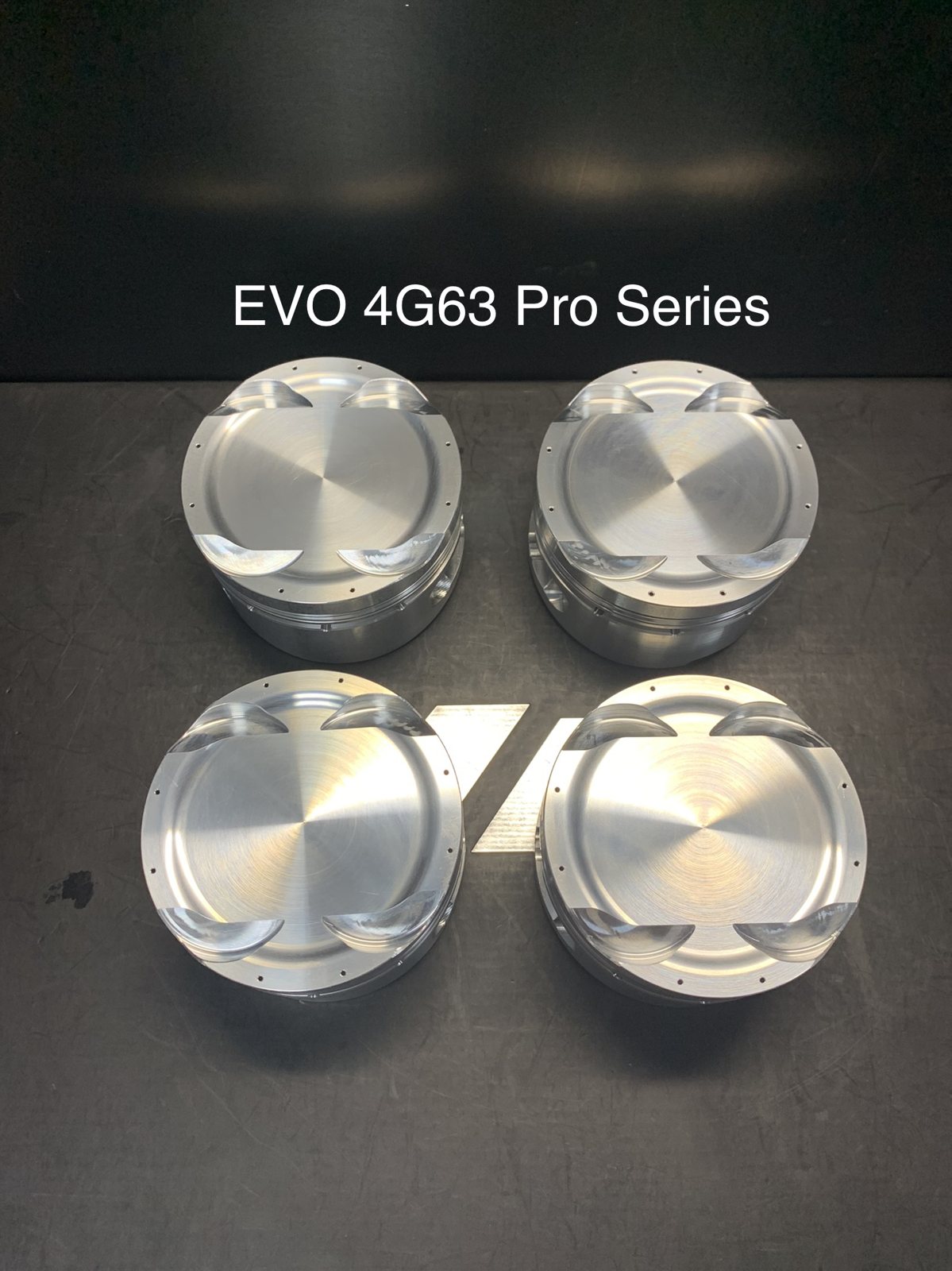

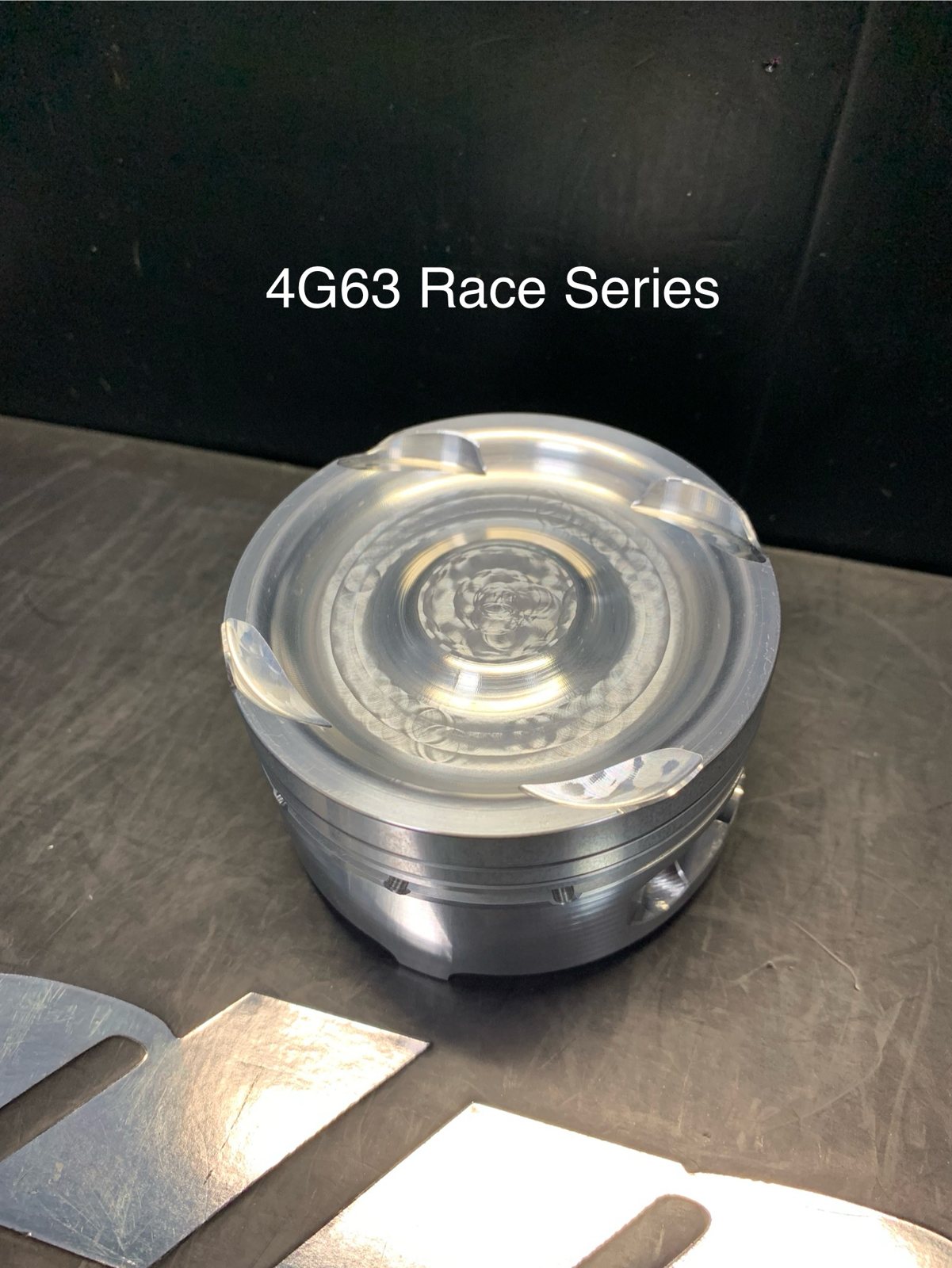

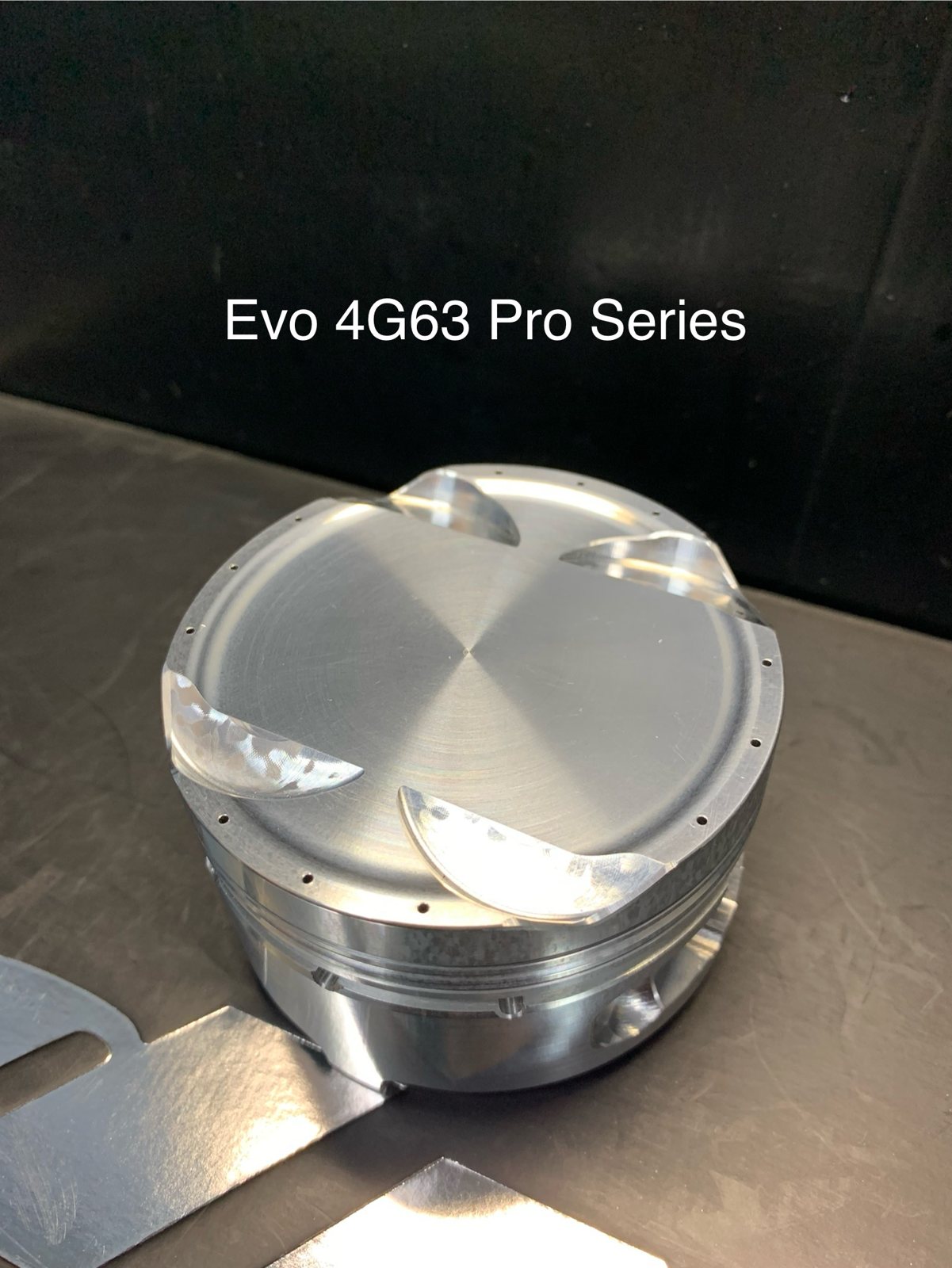

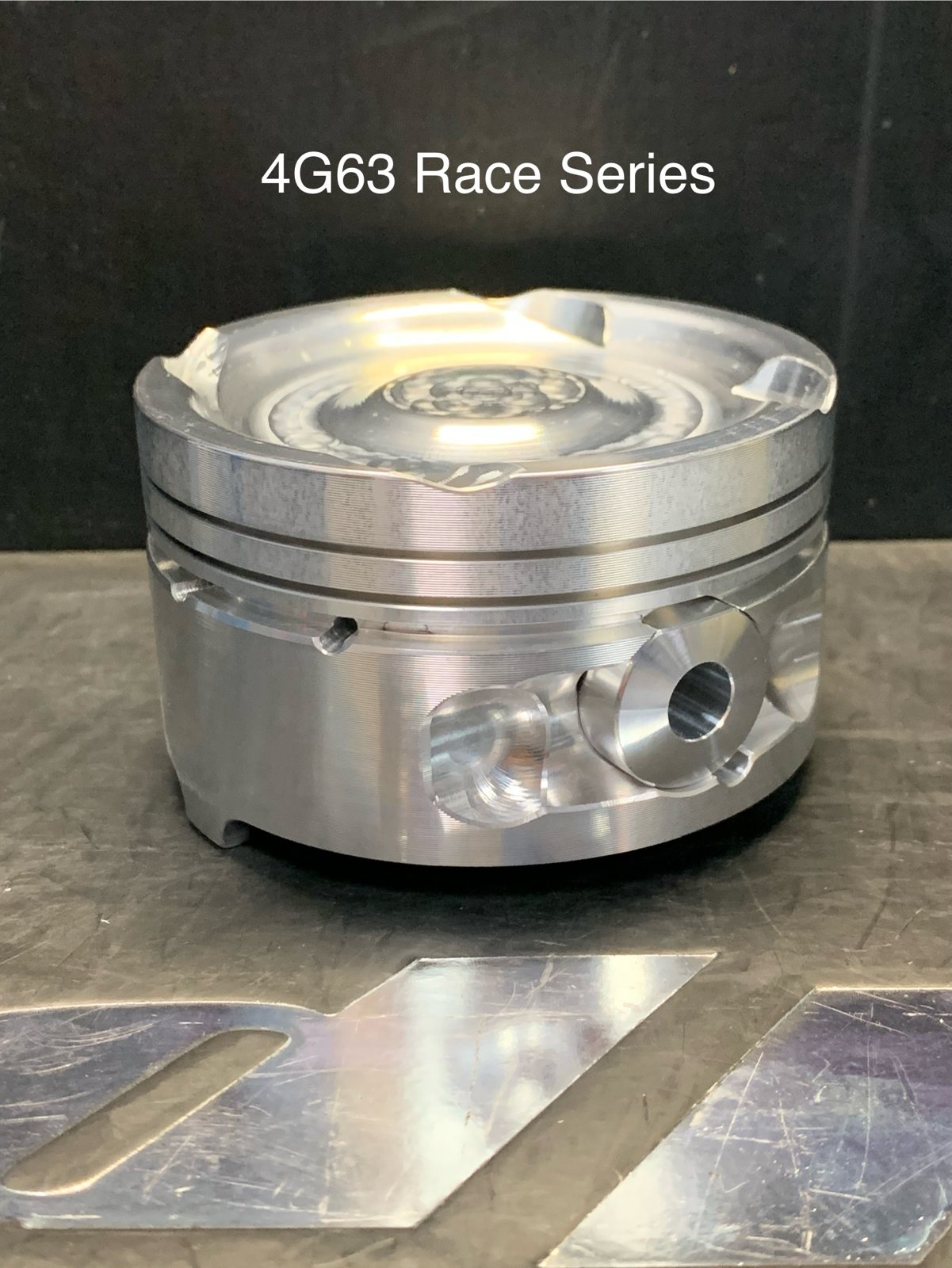

Race Series forged pistons for the Mitsubishi Lancer Evo 4G63 (2.0L), available in CH 29, 32 and 35 mm for the matching rod lengths. Designed and made in-house at DP Engine Parts, Greece.

Series

Bore

Clear

Optional extras

Skirt coating (+25,00€/pc) Crown coating (+25,00€/pc)

SKU: N/A Categories: MITSUBISHI, 4G63 Tags: forged pistons, Race Series

💨 Naturally Aspirated

Technical data — 4G63

Displacement	1997cc
Production Years	1992–1996 (Evo 1–3)
Block Material	Cast Iron
Cylinder Coating	None
Block Height (mm)	229.0
Bore (mm)	85.00 (OEM); DP overbores to 87
Stroke (mm)	88.00 (OEM)
Rod Length (mm)	150 (CH35 build) / 153 (CH32) / 156 (CH29, oil-rail-support)
Wrist Pin Diameter (mm)	22
Rod Big End Bore (mm)	48mm
Rod Big End Thickness (mm)	26.4mm
Cylinders	4
CH (mm)	35 / 32 / 29
Compression Ratio	9.0 (OEM factory)
Bore	85, 85.5, 86, 86.25, 86.5, 86.75, 87
CH (Compression Height)	29, 32, 35
CR (Compression Ratio)	9.2-9.5, 10.1-10.4
Pin Size (Ø)	22
Pin Part Number	585PP22D11
Pin Length	58.5
