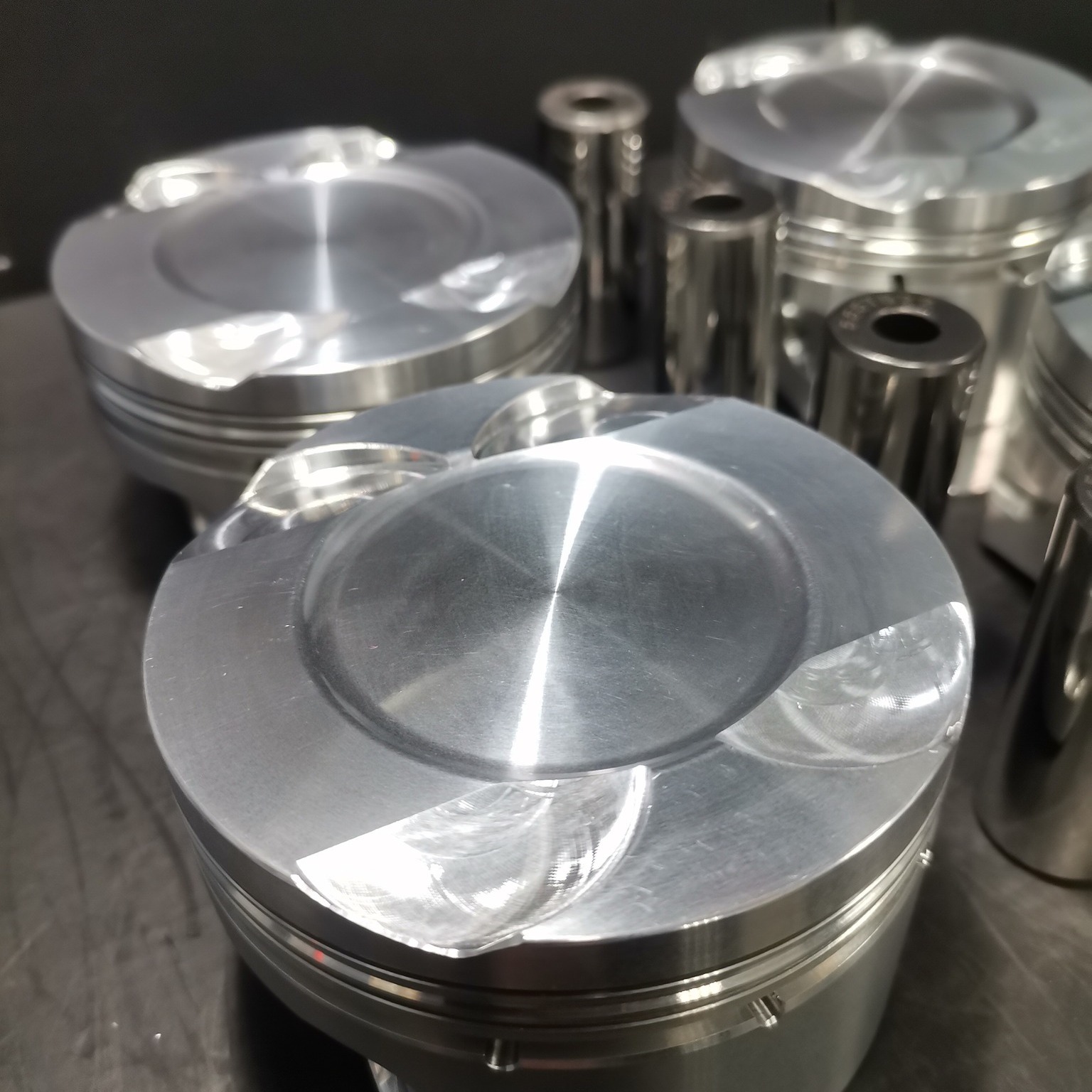

Nissan SR20DET Race Series Pistons

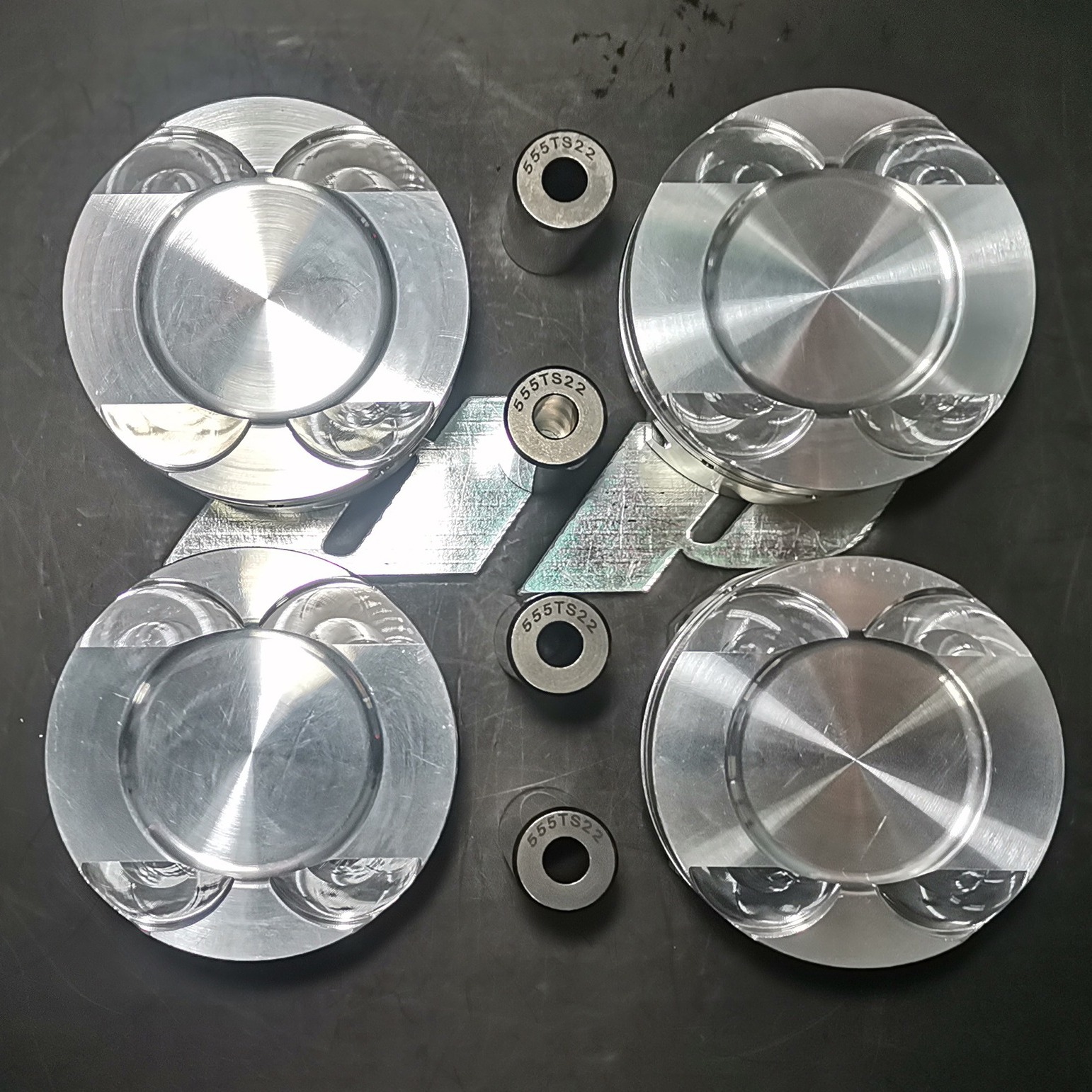

Nissan SR20DET Race Series Pistons - Image 2

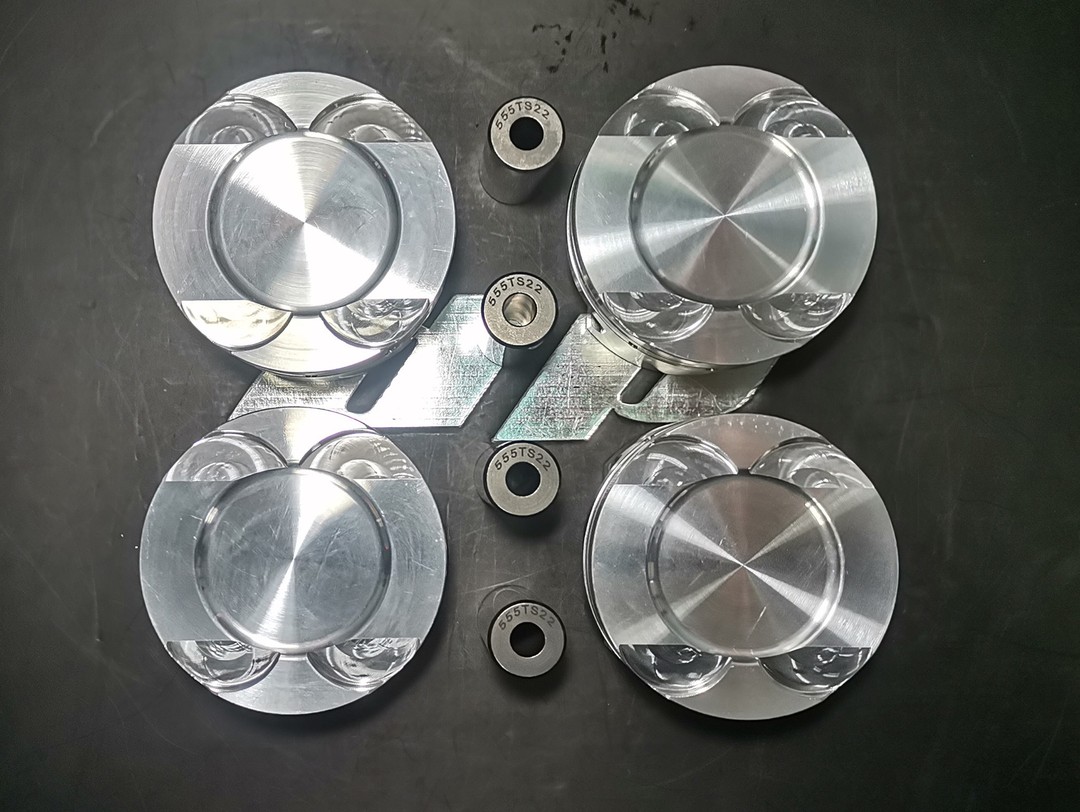

Nissan SR20DET Race Series Pistons - Image 3

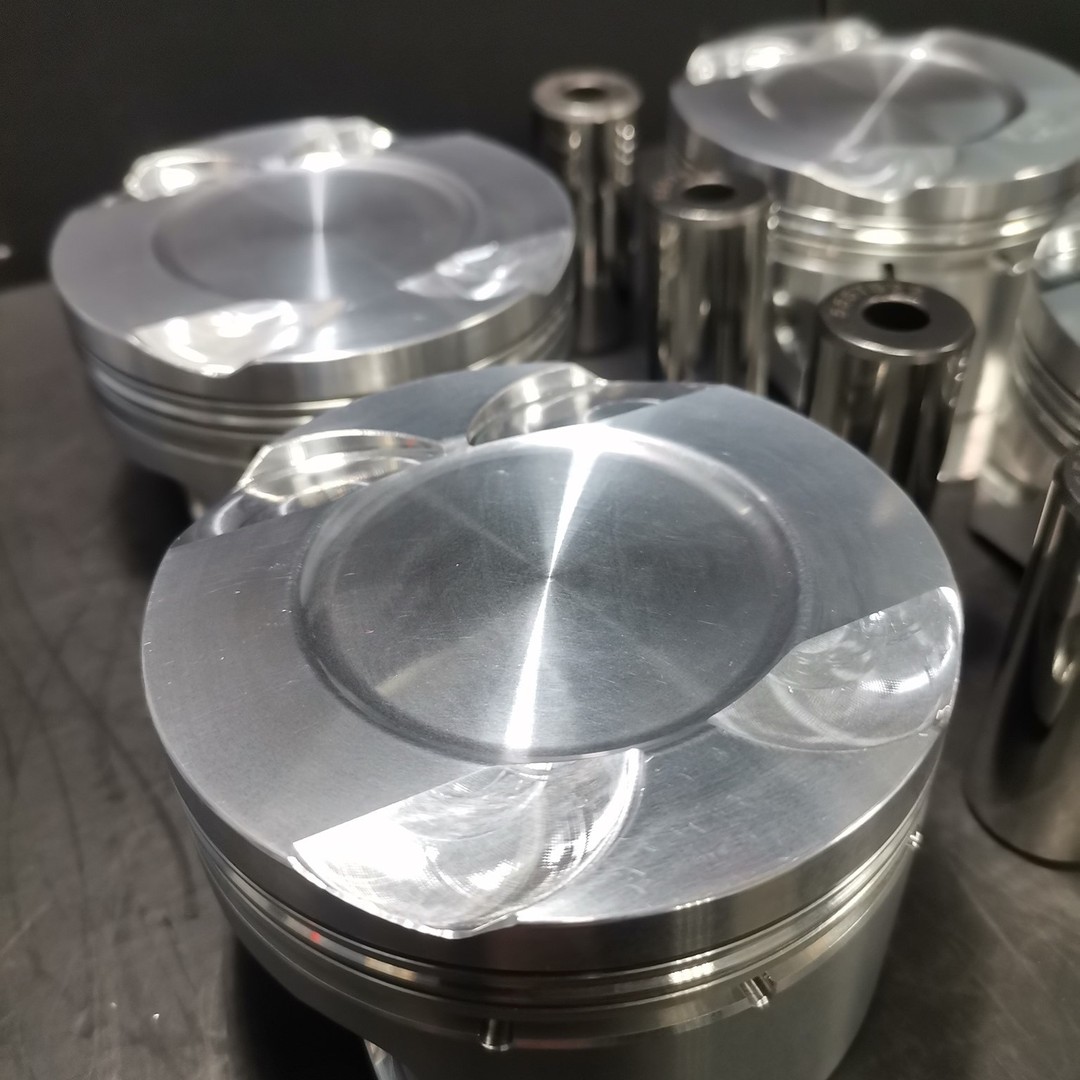

Nissan SR20DET Race Series Pistons - Image 4

The picture may vary from the real product.

Nissan SR20DET Race Series Pistons

800,00€ (exc. Vat)

Race Series forged pistons for the Nissan SR20DET. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — SR20

Displacement1998cc
Production Years1989–2002
Block MaterialAluminium (closed-deck)
Bore (mm)86.00
Stroke (mm)86.00
Rod Length (mm)136.3
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)51mm
Rod Big End Thickness (mm)22.8mm
Cylinders4
CH (mm)32
Compression Ratio8.5
Bore86, 86.25, 86.5, 87
CH (Compression Height)32
CR (Compression Ratio)9.0
Pin Size (Ø)22
Pin Length55.7

Race Series forged pistons for the Nissan SR20DET. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86 / 86.25 / 86.5 / 87 mm
  • Piston pin: 22 mm

Pair them with our Nissan SR20DET connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race
Bore

86, 86.25, 86.5, 87
