Opel C20 Turbo Race Series Pistons
Opel C20 Turbo Race Series Pistons
Opel C20 Turbo Race Series Pistons

The picture may vary from the real product.

Opel C20 Turbo Race Series Pistons

800,00€ (exc. Vat)

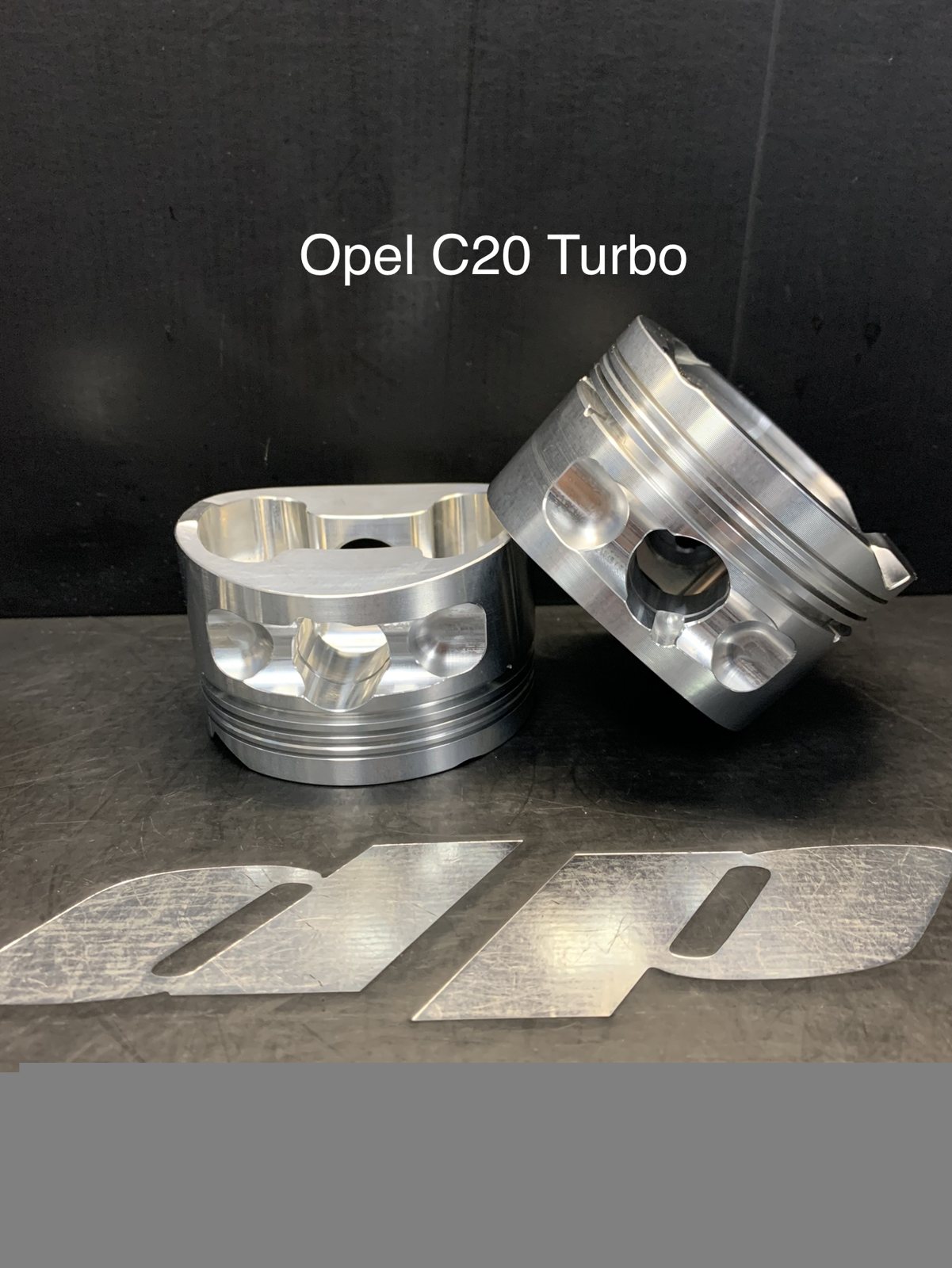

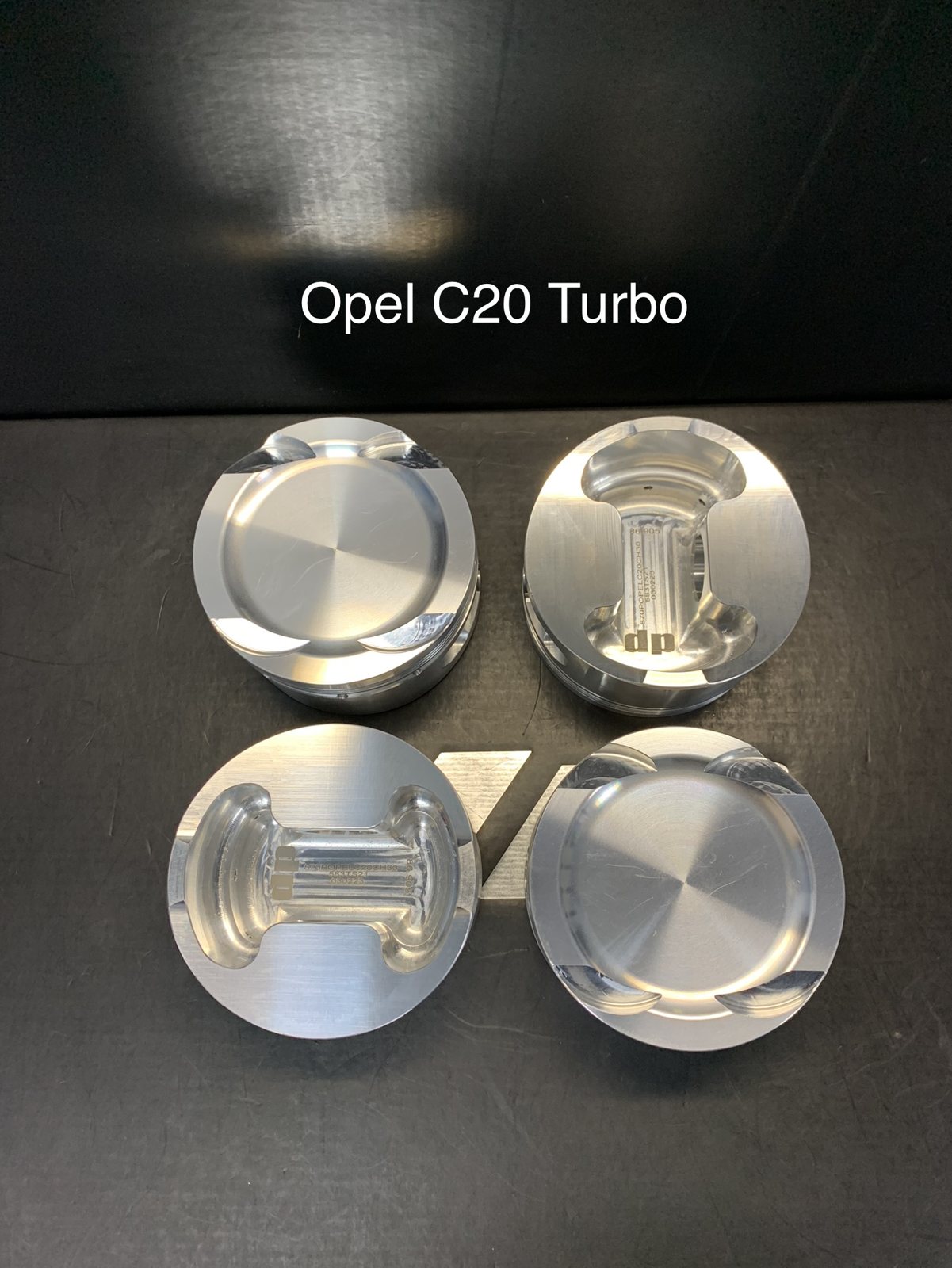

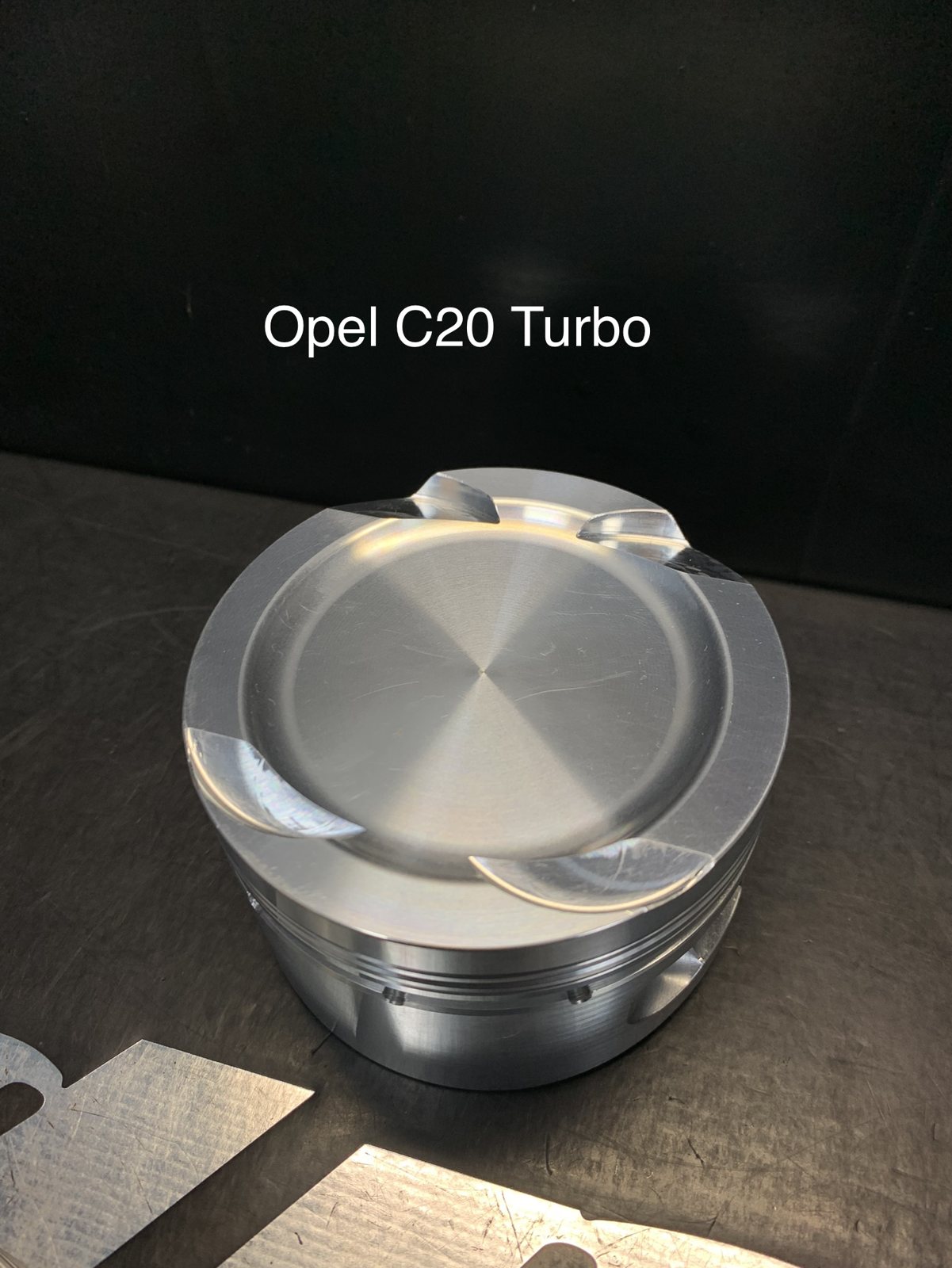

Race Series forged pistons for the Opel C20 Turbo. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — C20/Z20

Displacement1998cc
Block MaterialCast Iron
Cylinder CoatingNone
Block Height (mm)216.3
Bore (mm)86.00
Stroke (mm)86.00
Rod Length (mm)143.1
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)52mm
Rod Big End Thickness (mm)26.3mm
Cylinders4
CH (mm)30.5
Bore86, 86.25, 86.5, 87, 87.5
CH (Compression Height)30.5
CR (Compression Ratio)9.1
Pin Size (Ø)21
Pin Length50.7

Race Series forged pistons for the Opel C20 Turbo. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86 / 86.25 / 86.5 / 87 / 87.5 mm
  • Piston pin: 21 mm

Pair them with our Opel C20 Turbo connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race
Bore

86, 86.25, 86.5, 87, 87.5
