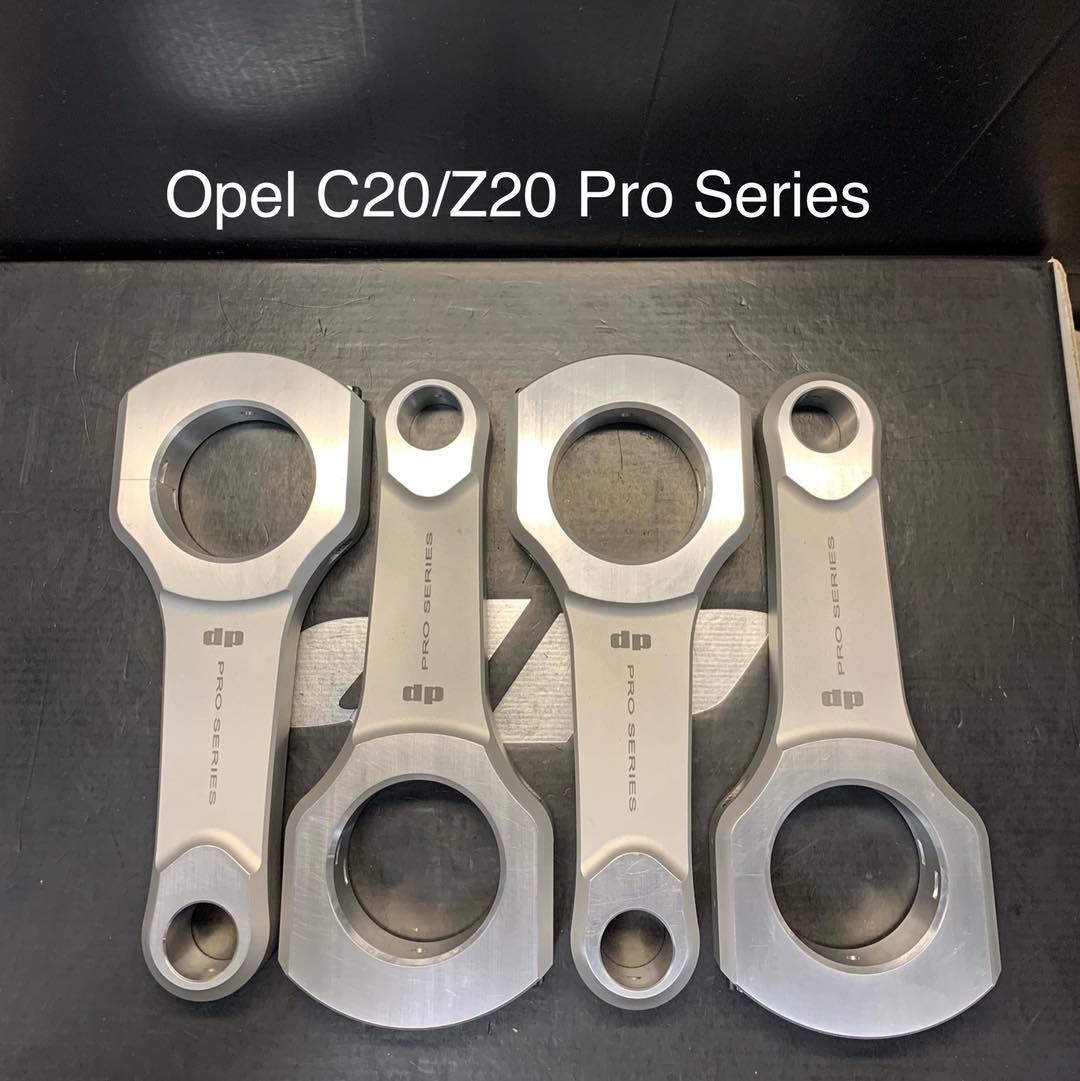

Opel C20 / Z20 Turbo Aluminum Ultimate Pro Rods

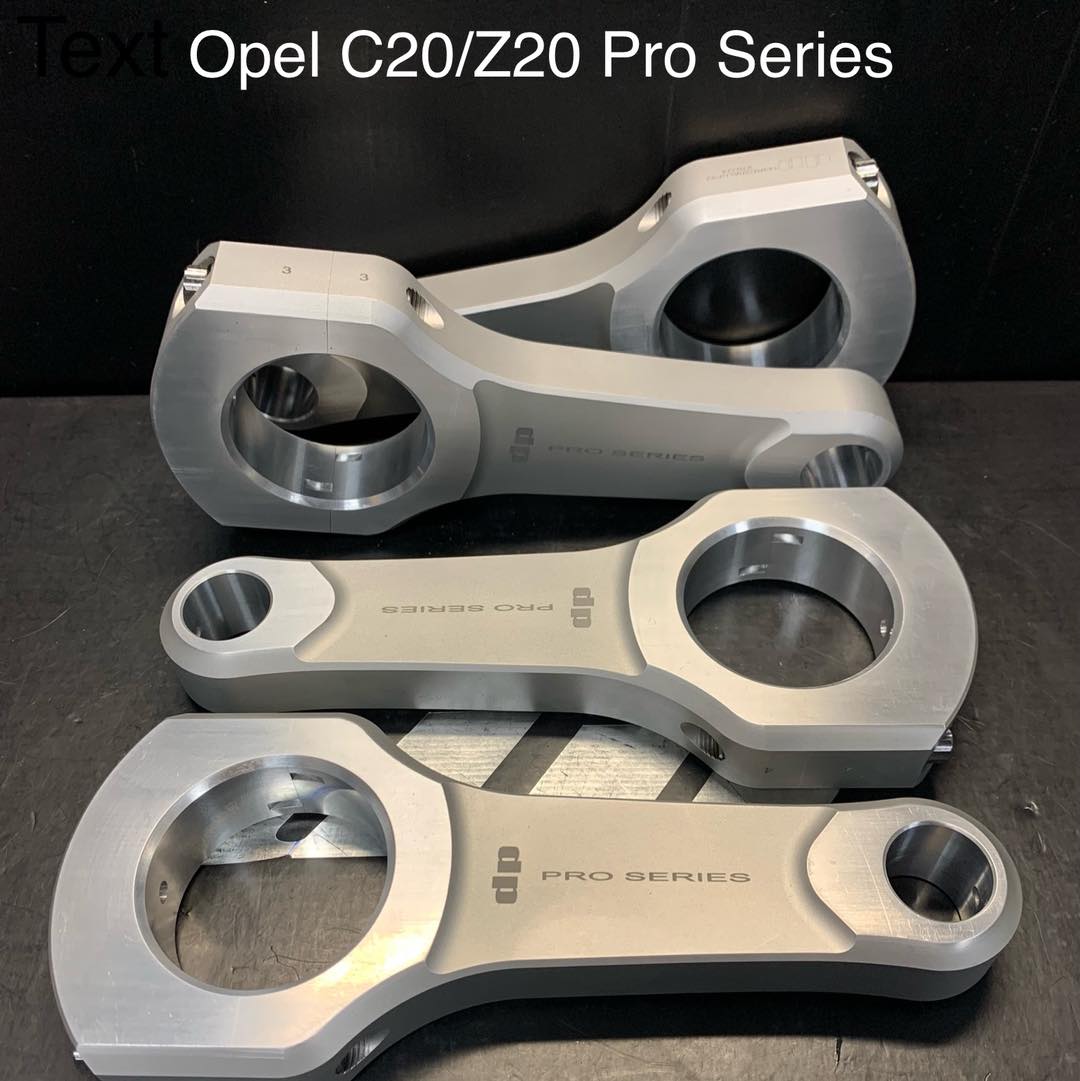

Opel C20 / Z20 Turbo Aluminum Ultimate Pro Rods - Image 2

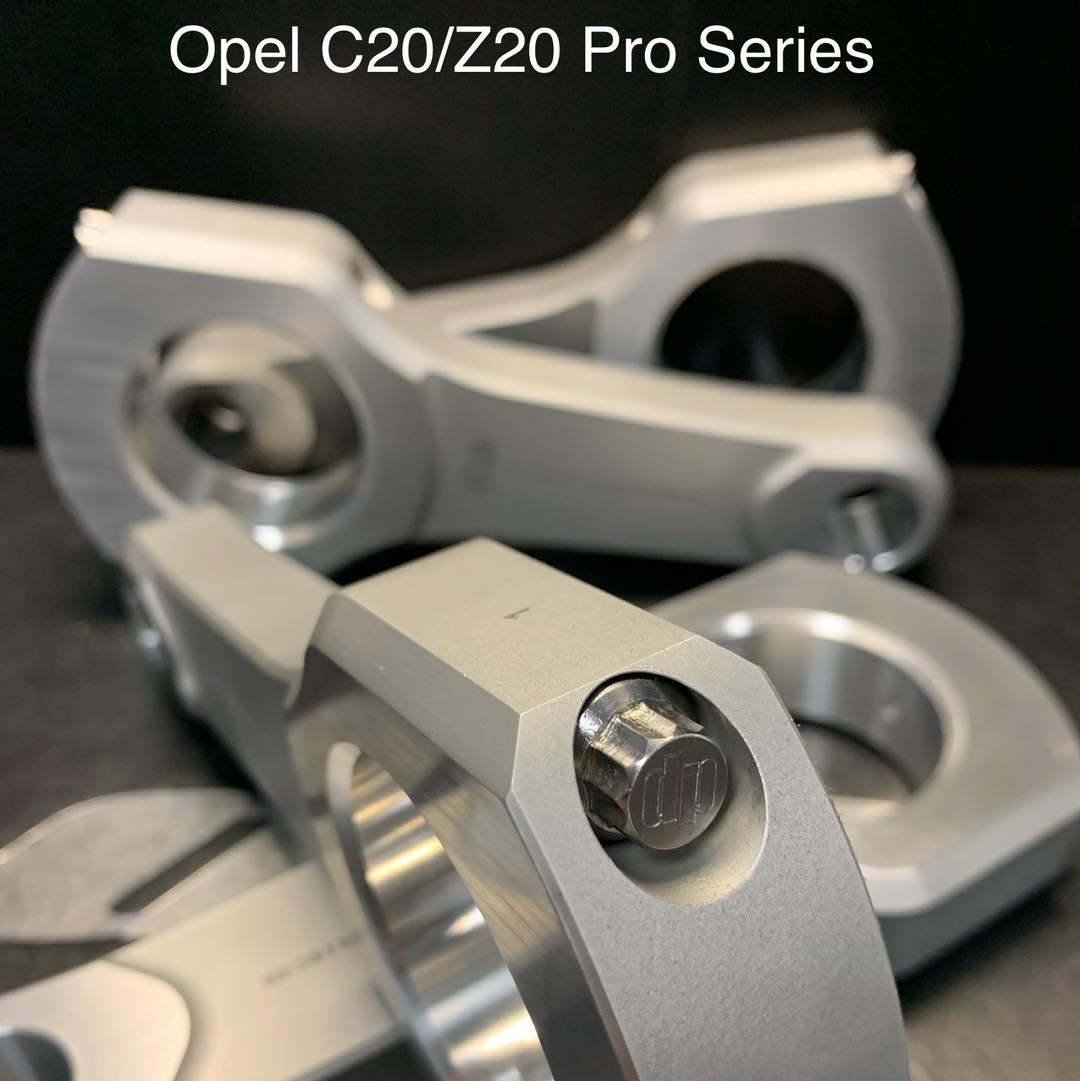

Opel C20 / Z20 Turbo Aluminum Ultimate Pro Rods - Image 3

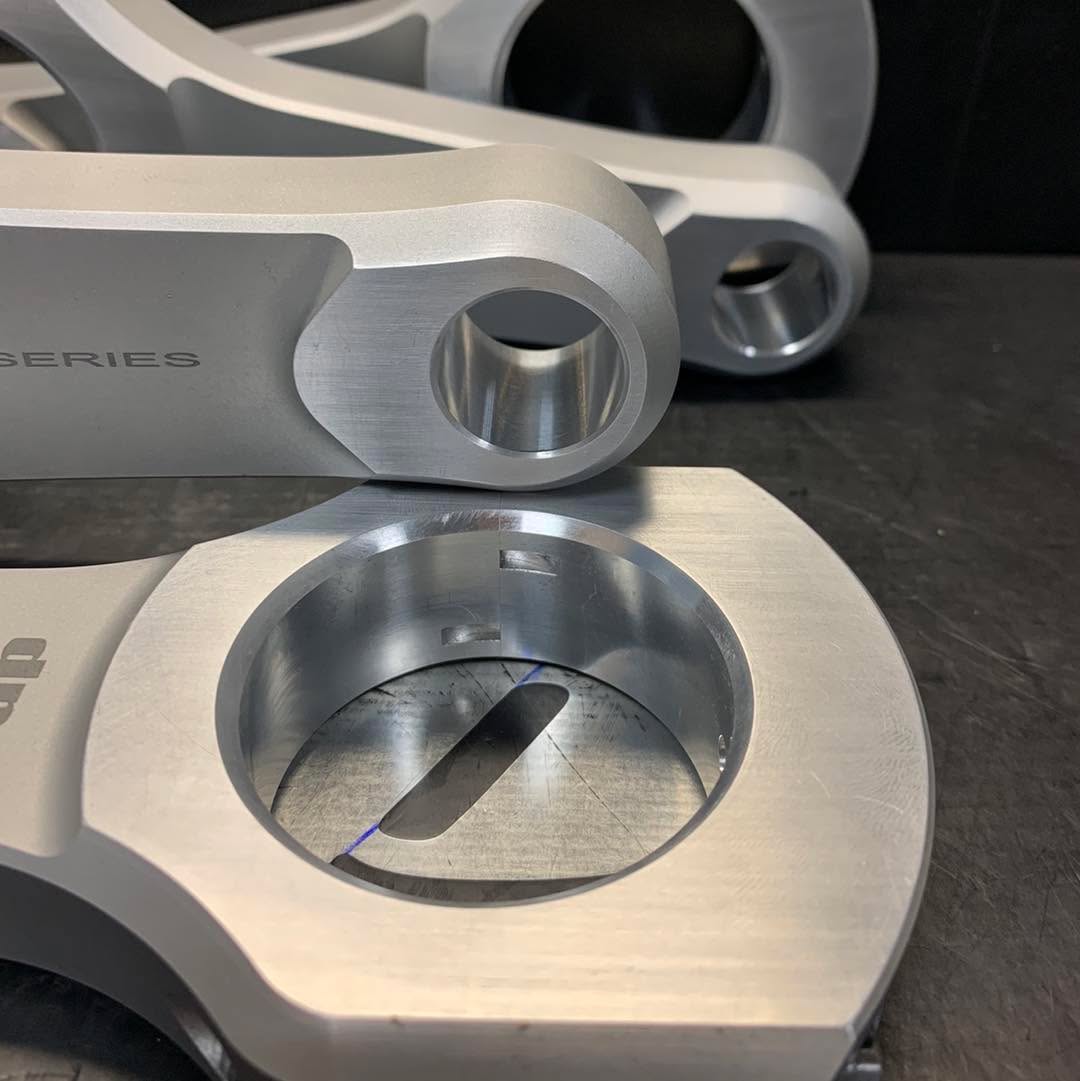

Opel C20 / Z20 Turbo Aluminum Ultimate Pro Rods - Image 4

The picture may vary from the real product.

Opel C20 / Z20 Turbo Aluminum Ultimate Pro Rods

1.000,00€ (exc. Vat)

Aluminum Ultimate Pro connecting rods for the Opel C20 / Z20 Turbo. Lightweight Zero-beam design for drag racing and competition use, made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , , ,

Technical data — C20/Z20

Displacement1998cc
Block MaterialCast Iron
Cylinder CoatingNone
Block Height (mm)216.3
Bore (mm)86.00
Stroke (mm)86.00
Rod Length (mm)143.1
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)52mm
Rod Big End Thickness (mm)26.3mm
Cylinders4
CH (mm)30.5
Rod Length143.1
Pin Size (Ø)21
Rod DesignZero-Beam

Aluminum Ultimate Pro connecting rods for the Opel C20 / Z20 Turbo. Lightweight Zero-beam design for drag racing and competition use, made in-house at DP Engine Parts, Greece.

  • Piston pin: 21 mm
  • Rod length: 143.1 mm
  • Beam design: Zero-Beam
  • Supplied with upgraded tool steel bolts

Aluminum rods are a consumable competition part and need regular inspection and replacement. Worldwide shipping. Contact us for custom specifications.

Series

Aluminum Ultimate Pro
Design

Zero-Beam
