Renault F4R RS Race Series Rods - DP Engine Parts

The picture may vary from the real product.

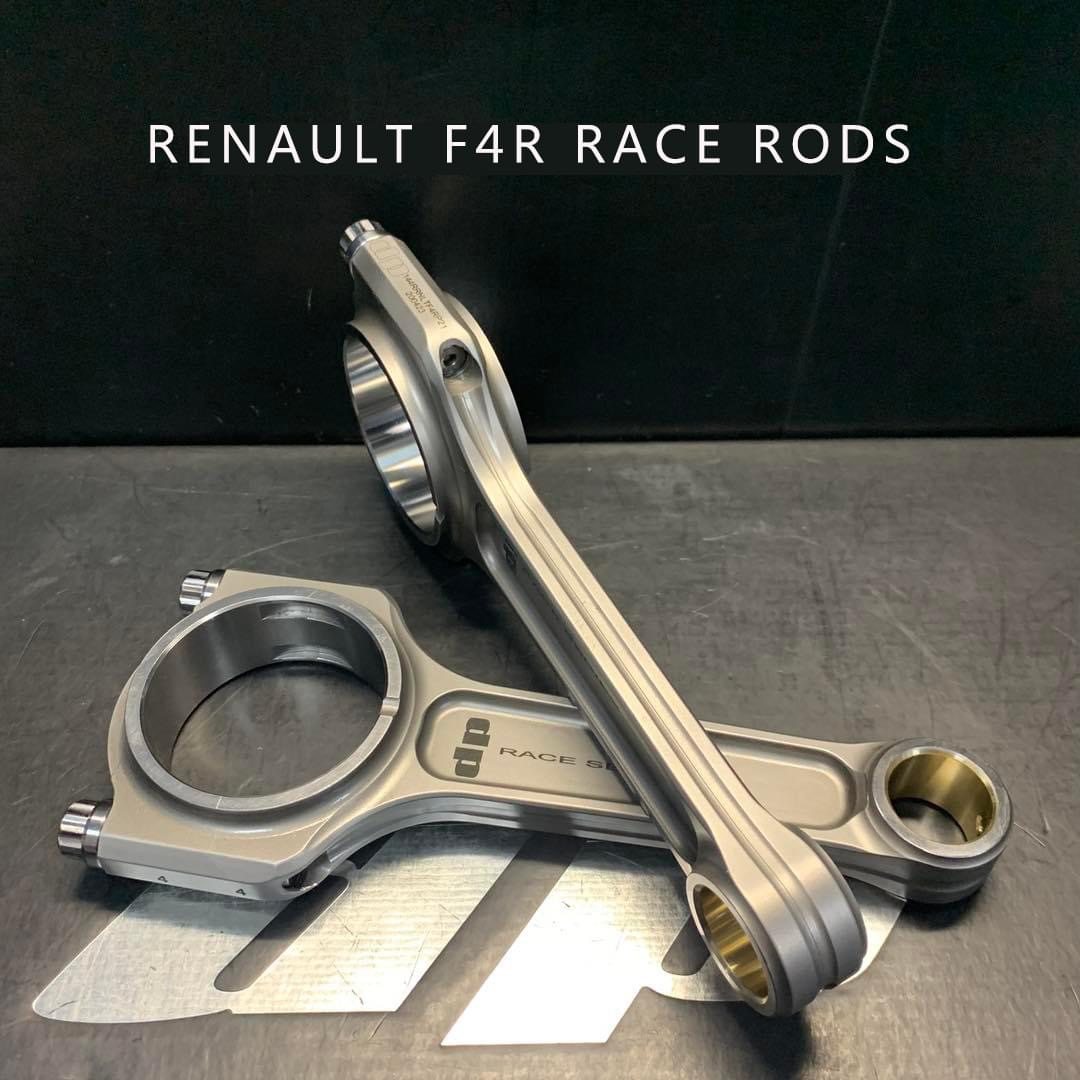

Renault F4R RS Race Series Rods

900,00€ (exc. Vat)

Race Series connecting rods for the Renault F4R RS. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — F4R RS

Displacement1998cc
Production Years1999–2012
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)82.70
Stroke (mm)93.00
Rod Length (mm)144
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)51.6mm
Rod Big End Thickness (mm)25mm
Cylinders4
CH (mm)30.2
Compression Ratio9.8 (base) / 11.2 (VVT, later Phase)
Rod Length144
Pin Size (Ø)21
Rod DesignA-Beam
Big End Ø51.6
Big End Thickness25
Small End Thickness25

Race Series connecting rods for the Renault F4R RS. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 21 mm
  • Rod length: 144 mm
  • Beam design: A–beam

Pair them with our Renault F4R RS pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A-Beam
