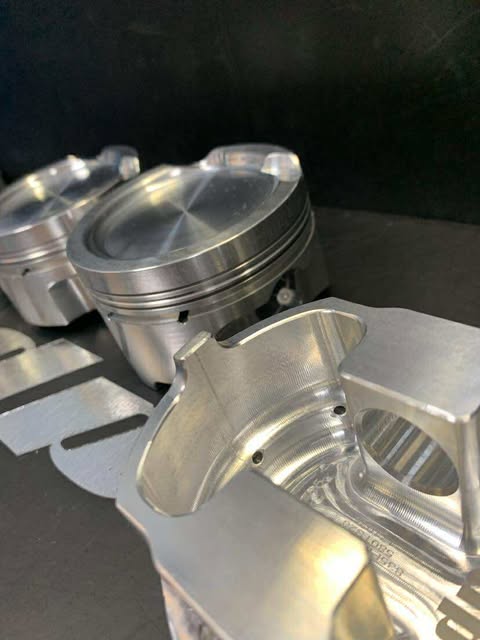

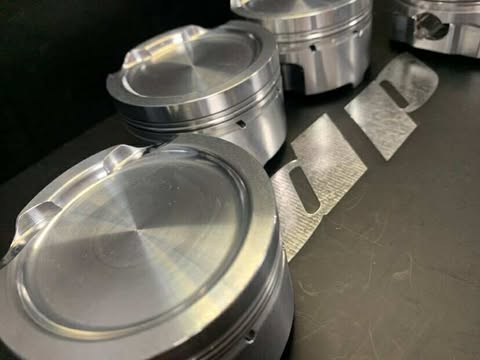

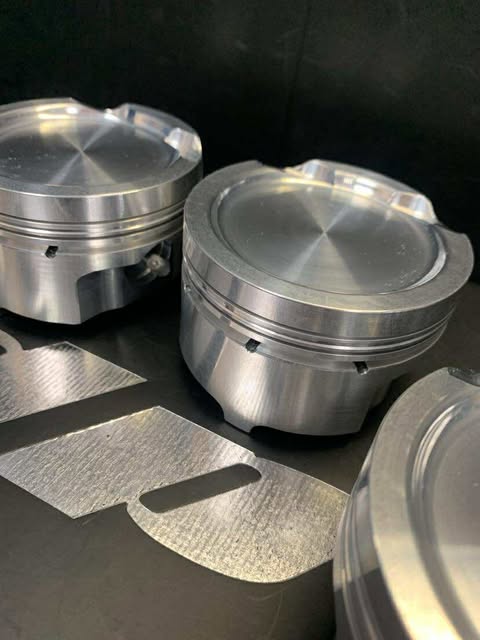

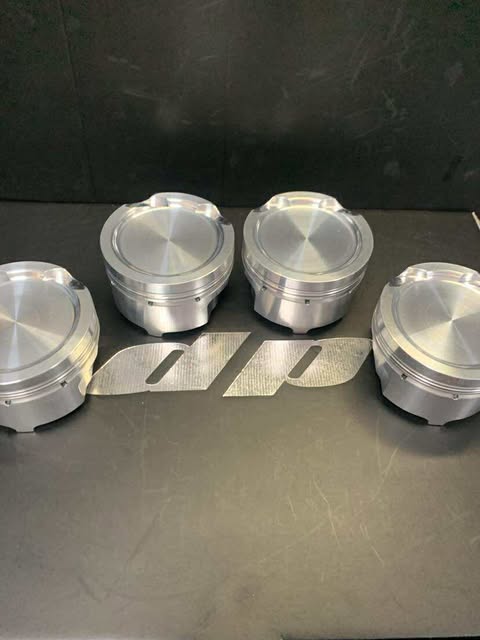

Suzuki M18 Race Series Pistons
Suzuki M18 Race Series Pistons - Image 2
Suzuki M18 Race Series Pistons - Image 3
Suzuki M18 Race Series Pistons - Image 4
Suzuki M18 Race Series Pistons - Image 5
Suzuki M18 Race Series Pistons - Image 6

The picture may vary from the real product.

,

Suzuki M18 Race Series Pistons

800,00€ (exc. Vat)

Race Series forged pistons for the Suzuki M18. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,

Technical data — M18

Displacement1796cc
Block MaterialAluminium
Bore (mm)83.00
Stroke (mm)83.00
Rod Length (mm)136
Wrist Pin Diameter (mm)20
Rod Big End Thickness (mm)23.8
Cylinders4
Bore83.5
CH (Compression Height)30
Pin Size (Ø)20
Pin Part Number58PP20D10
Pin Length58
Pin Drill Ø (mm)10
Pin Combinations58PP20D10|race

Race Series forged pistons for the Suzuki M18. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 83 / 83.5 mm
  • Piston pin: 20 mm

Pair them with our Suzuki M18 connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 5 kg
Series

Performance, Race, Pro
Pin Diameter

20
Bore

83, 83.5
Pin Size

20
