Toyota 2JZ Race Series Pistons
Toyota 2JZ Race Series Pistons
Toyota 2JZ Race Series Pistons

The picture may vary from the real product.

Toyota 2JZ Race Series Pistons

1.200,00€ (exc. Vat)

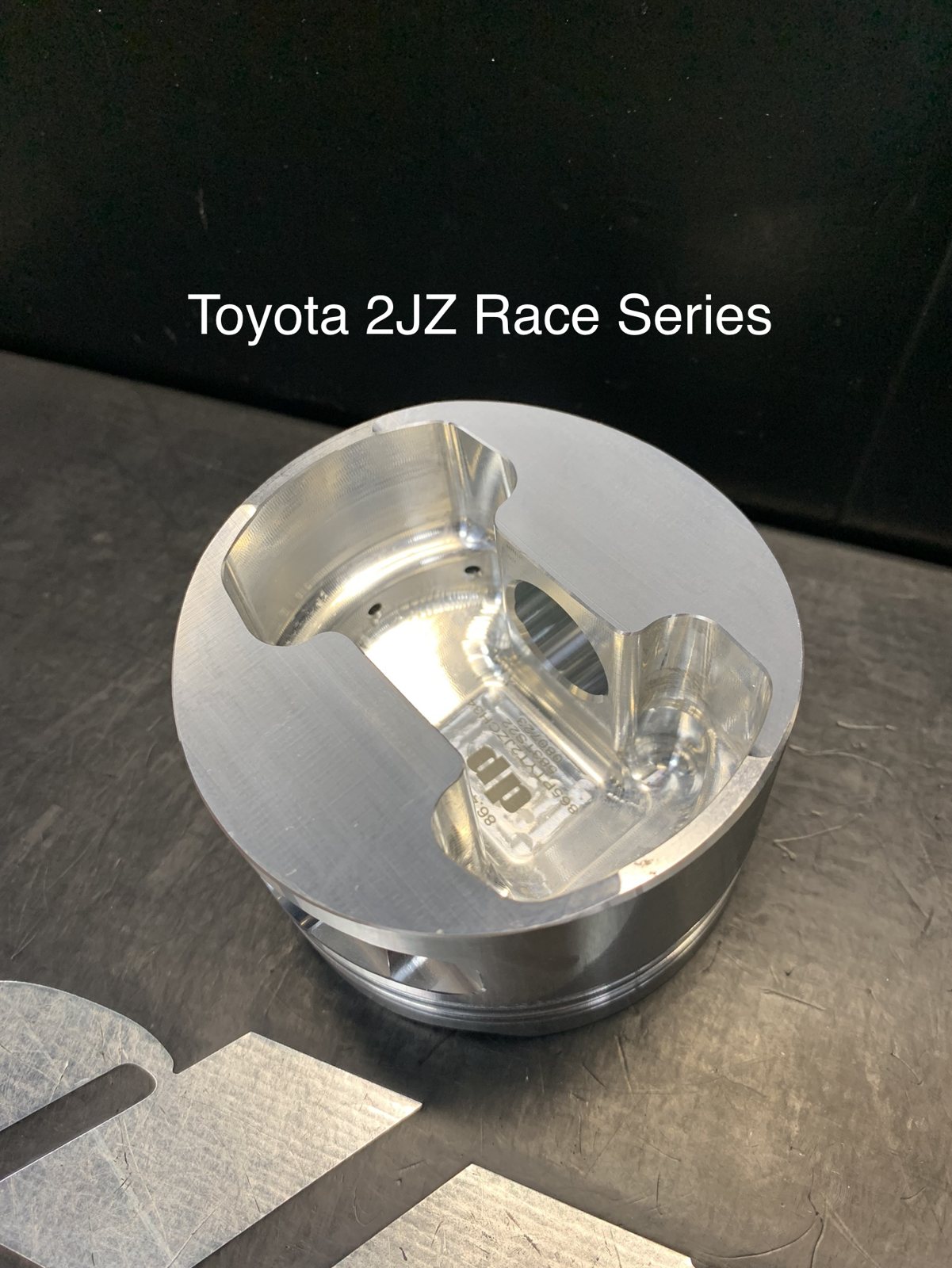

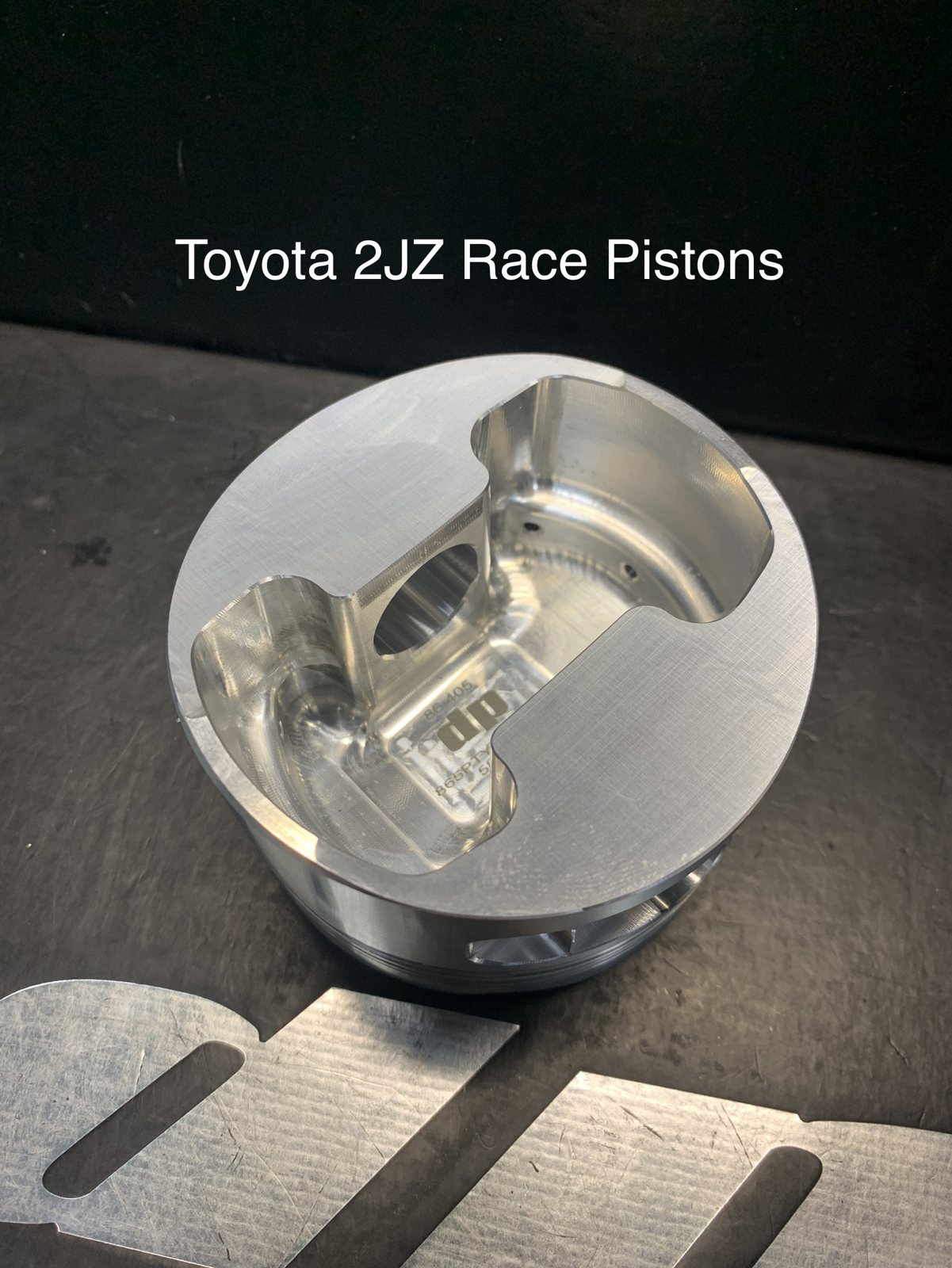

Race Series forged pistons for the Toyota 2JZ. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — 2JZ

Displacement2997cc
Production Years1991–2002
Block MaterialCast Iron
Cylinder CoatingNone
Block Height (mm)219.0
Bore (mm)86.50
Stroke (mm)86.00 (OEM) / 90.00 (stroker crank)
Rod Length (mm)142
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)55mm
Rod Big End Thickness (mm)26mm
Cylinders6
CH (mm)34 (OEM stroke) / 30 (stroker builds)
Compression Ratio8.5 (OEM factory)
Bore86.5, 87
CH (Compression Height)34, 30
CR (Compression Ratio)10.2, 9.2, 11.2
Pin Size (Ø)22
Pin Length58.5

Race Series forged pistons for the Toyota 2JZ. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86.5 / 87 mm
  • Piston pin: 22 mm

Pair them with our Toyota 2JZ connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Race
Bore

86.5, 87
