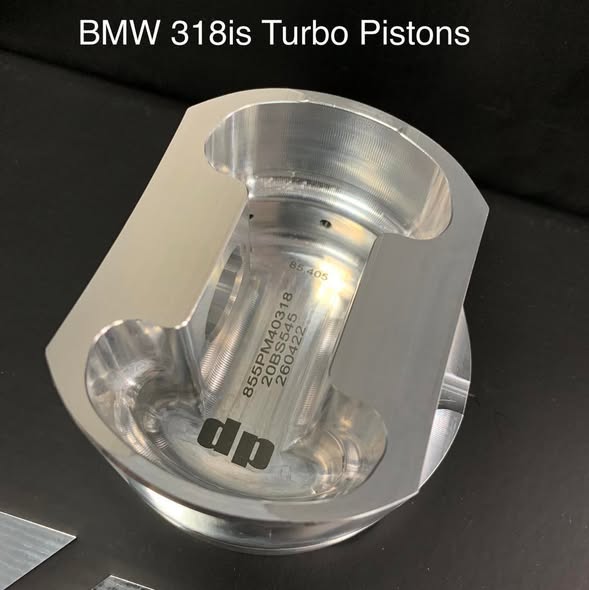

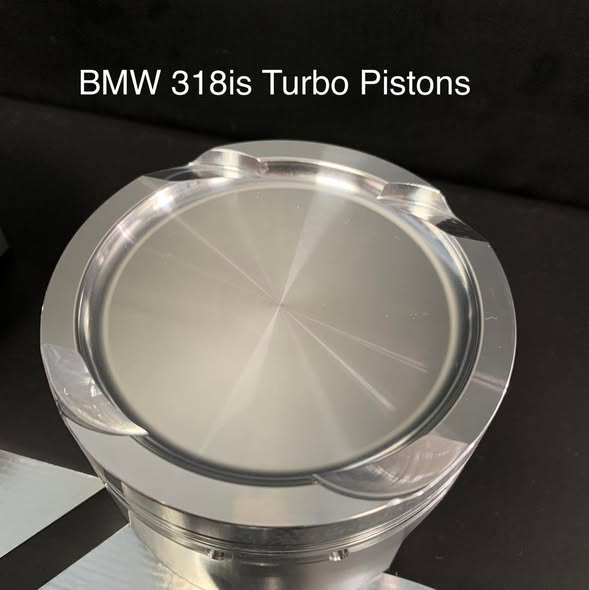

BMW 318is (M42B18) Turbo Race Series Pistons
BMW 318is (M42B18) Turbo Race Series Pistons - Image 2
BMW 318is (M42B18) Turbo Race Series Pistons - Image 3

The picture may vary from the real product.

,

BMW 318is (M42B18) Turbo Race Series Pistons

800,00€ (exc. Vat)

Race Series forged pistons for the BMW 318is (M42B18) Turbo. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,

Technical data — 318is Turbo

Displacement1796cc
Production Years1987–1996
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)85.5
Rod Length (mm)135
Wrist Pin Diameter (mm)20
Rod Big End Bore (mm)48mm
Rod Big End Thickness (mm)21.89mm
Rod Small End Thickness (mm)21.89mm
Cylinders4
CH (mm)28.15
Compression Ratio10.0 (M42 only)
Bore85.5
CH (Compression Height)28.15
CR (Compression Ratio)10:1
Pin Size (Ø)20
Pin Length53.7
Ring Thickness — 1st (mm)1.00
Ring Thickness — 2nd (mm)1.20
Ring Thickness — 3rd (mm)2.80
Ring Part Number85.5|1.00|1.20|2.80=85.5

Race Series forged pistons for the BMW 318is (M42B18) Turbo. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 84 / 84.5 / 85 mm
  • Piston pin: 20 mm

Pair them with our BMW 318is (M42B18) Turbo connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 5 kg
Series

Performance, Race, Pro
Pin Diameter

20
Bore

84, 84.5, 85
Pin Size

22
