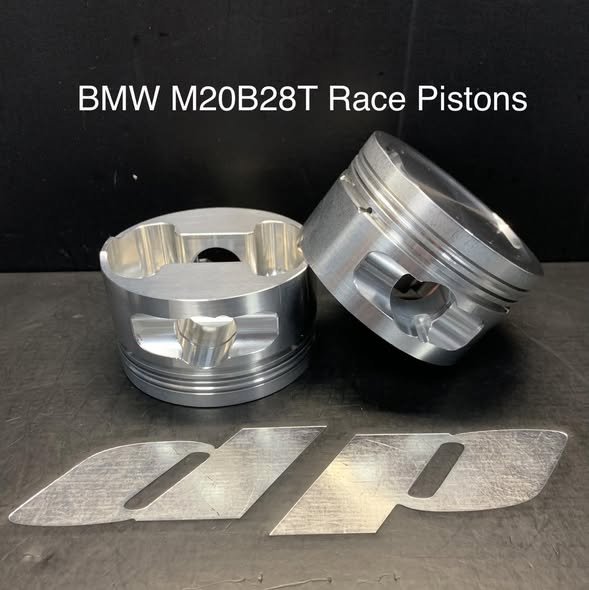

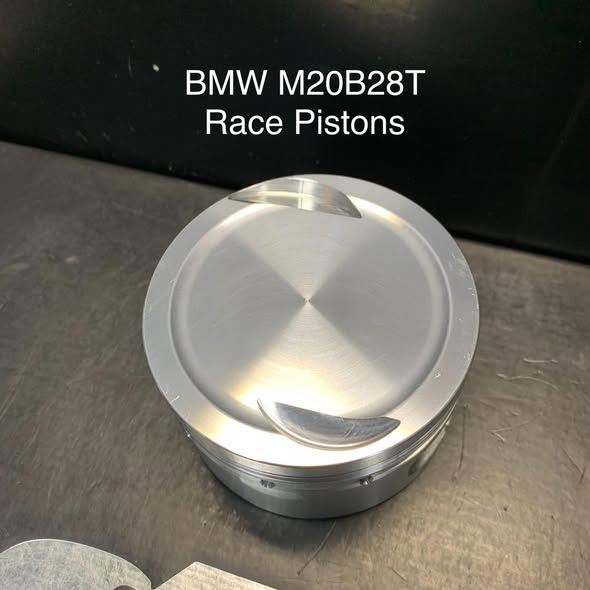

BMW M20B28 Turbo Race Series Pistons

1.200,00€ (exc. Vat)

Race Series forged pistons for the BMW M20B28 Turbo. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,

Technical data — M20B28

Displacement~2758cc (calc.)
Block MaterialCast Iron (M20 block, bored)
Cylinder CoatingNone
Bore Spacing (mm)91.0
Bore (mm)84.5 / 85
Stroke (mm)84.00
Rod Length (mm)135 (same rod as M20B27/M20B30)
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)48mm
Rod Big End Thickness (mm)21.89mm
Rod Small End Thickness (mm)21.89mm
Cylinders6
CH (mm)29.7
Bore84.5, 85
CH (Compression Height)29.7
CR (Compression Ratio)9.0, 9.2
Pin Size (Ø)22
Pin Part Number555PP22D10
Pin Length55.5
Ring Thickness — 1st (mm)1.00
Ring Thickness — 2nd (mm)1.2
Ring Thickness — 3rd (mm)2.8
Ring Part Number84.5|1.00|1.2|2.8=84.5
Pin Combinations555PP22D10|race

Race Series forged pistons for the BMW M20B28 Turbo. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 22 mm

Pair them with our BMW M20B28 Turbo connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 7 kg
Series

Performance, Race, Pro

Pin Diameter

22
