BMW 318is Race Series Rods - DP Engine Parts
BMW 318is Race Series Rods - DP Engine Parts

The picture may vary from the real product.

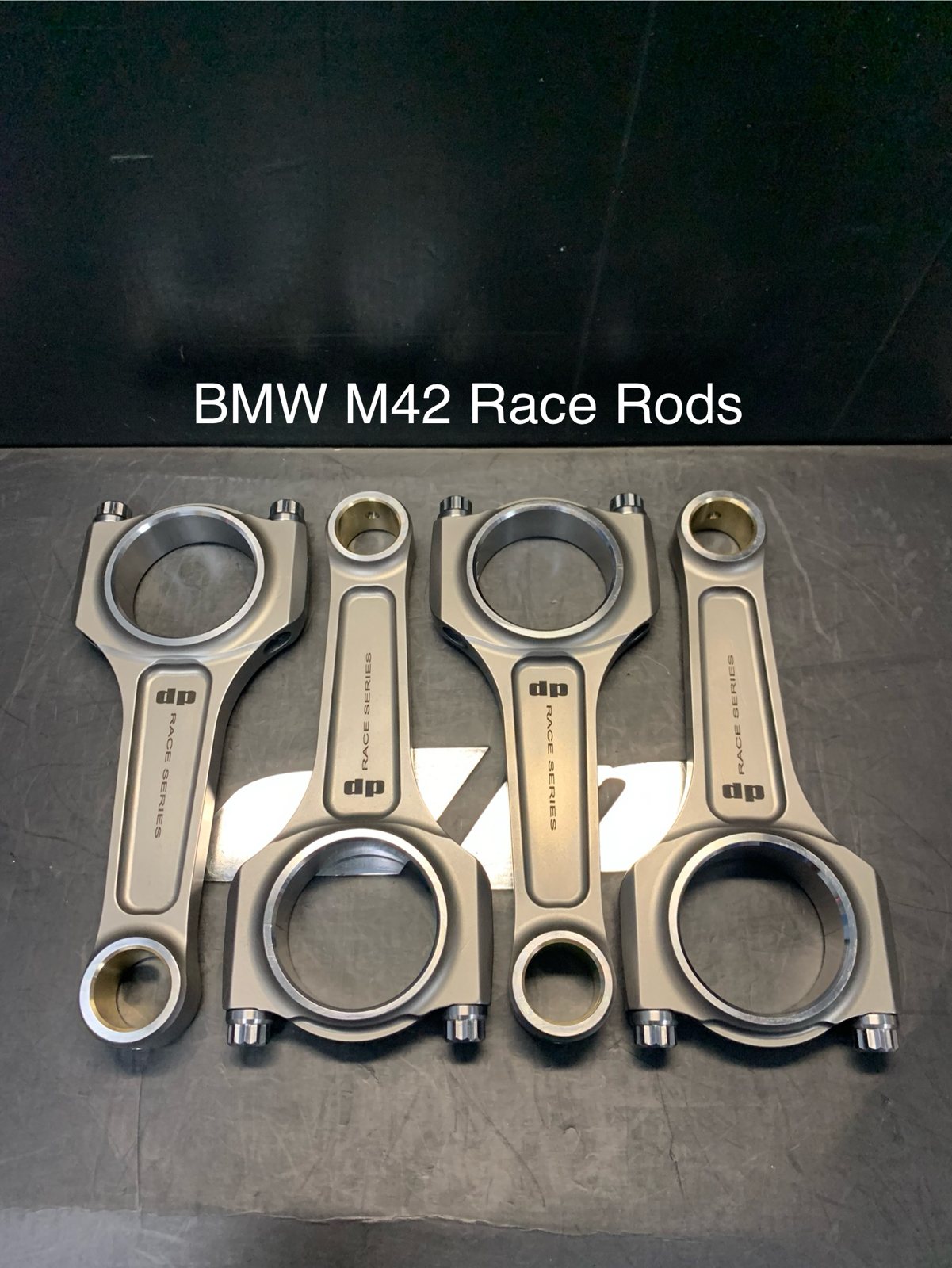

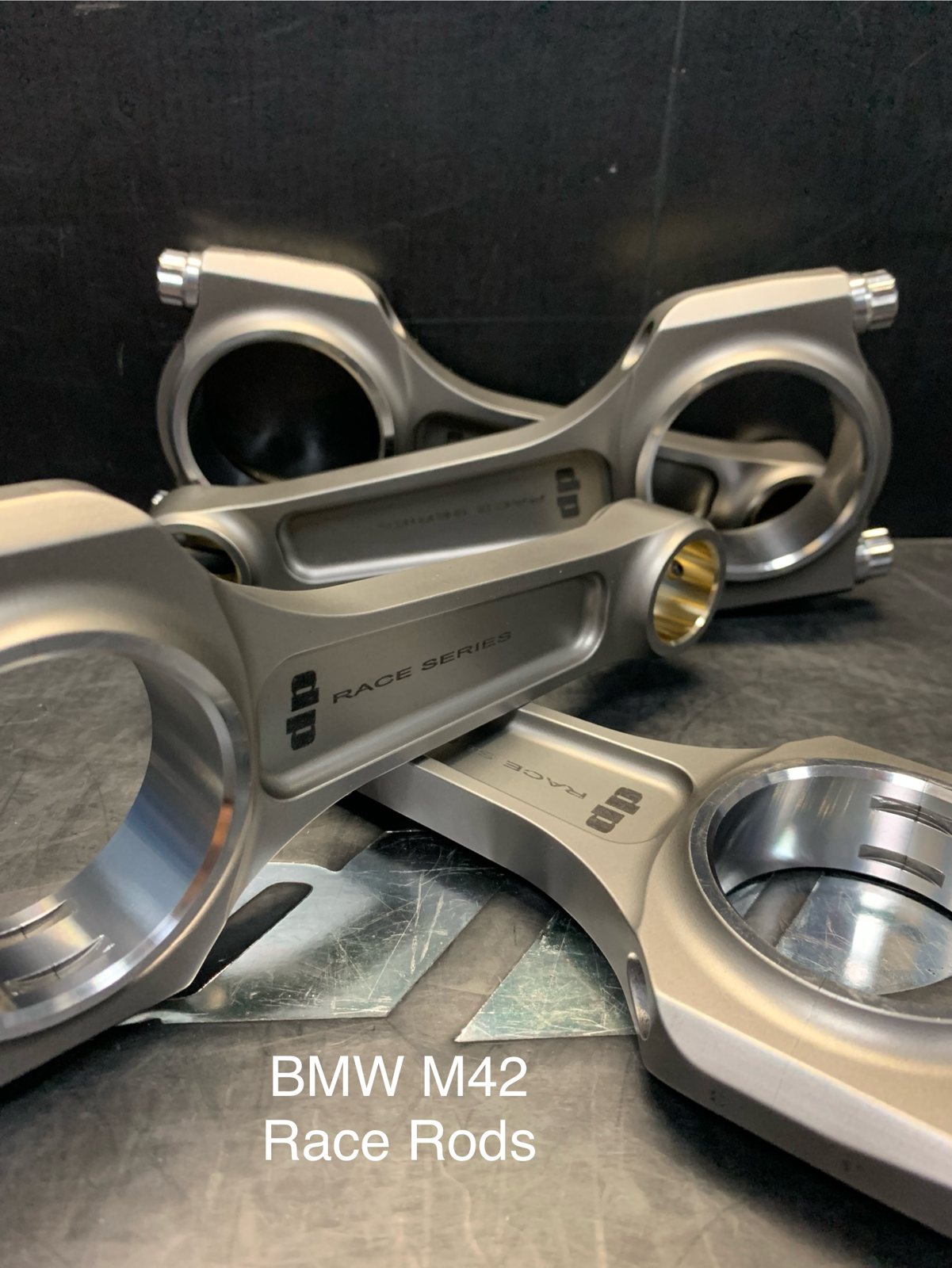

BMW 318is Race Series Rods

900,00€ (exc. Vat)

Race Series connecting rods for the BMW 318is. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — 318 is

Displacement1796cc
Production Years1987–1996
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)85.5
Rod Length (mm)135
Wrist Pin Diameter (mm)20
Rod Big End Bore (mm)48mm
Rod Big End Thickness (mm)21.89mm
Rod Small End Thickness (mm)21.89mm
Cylinders4
CH (mm)28.15
Compression Ratio10.0 (M42 only)
Rod Length140, 135
Pin Size (Ø)22
Rod DesignA, I, A-Beam
Bolt Size3/8
Big End Ø48
Big End Thickness21.89
Small End Thickness21.89

Race Series connecting rods for the BMW 318is. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 22 mm
  • Rod length: 140/135 mm
  • Beam design: A / I / A–beam

Pair them with our BMW 318is pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A, I, A-Beam
