BMW M5 B36 Race Series Rods - DP Engine Parts
BMW M5 B36 Race Series Rods - DP Engine Parts
BMW M5 B36 Race Series Rods - DP Engine Parts

The picture may vary from the real product.

BMW M5 B36 Race Series Rods

1.350,00€ (exc. Vat)

Race Series connecting rods for the BMW M5 B36. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — M5 B36

Displacement3535cc
Production Years1988–1992
Block MaterialCast Iron
Cylinder CoatingNone
Bore Spacing (mm)100.0 (M30/S38 family)
Bore (mm)93.40
Stroke (mm)86.00
Rod Length (mm)144
Wrist Pin Diameter (mm)22
Rod Big End Bore (mm)52mm
Rod Big End Thickness (mm)23.90mm
Rod Small End Thickness (mm)24.13mm
Cylinders6
CH (mm)31.5
Compression Ratio10.0
Rod Length144
Pin Size (Ø)22
Rod DesignA, A-Beam
Bolt Size3/8
Big End Ø52
Big End Thickness23.90
Small End Thickness24.13

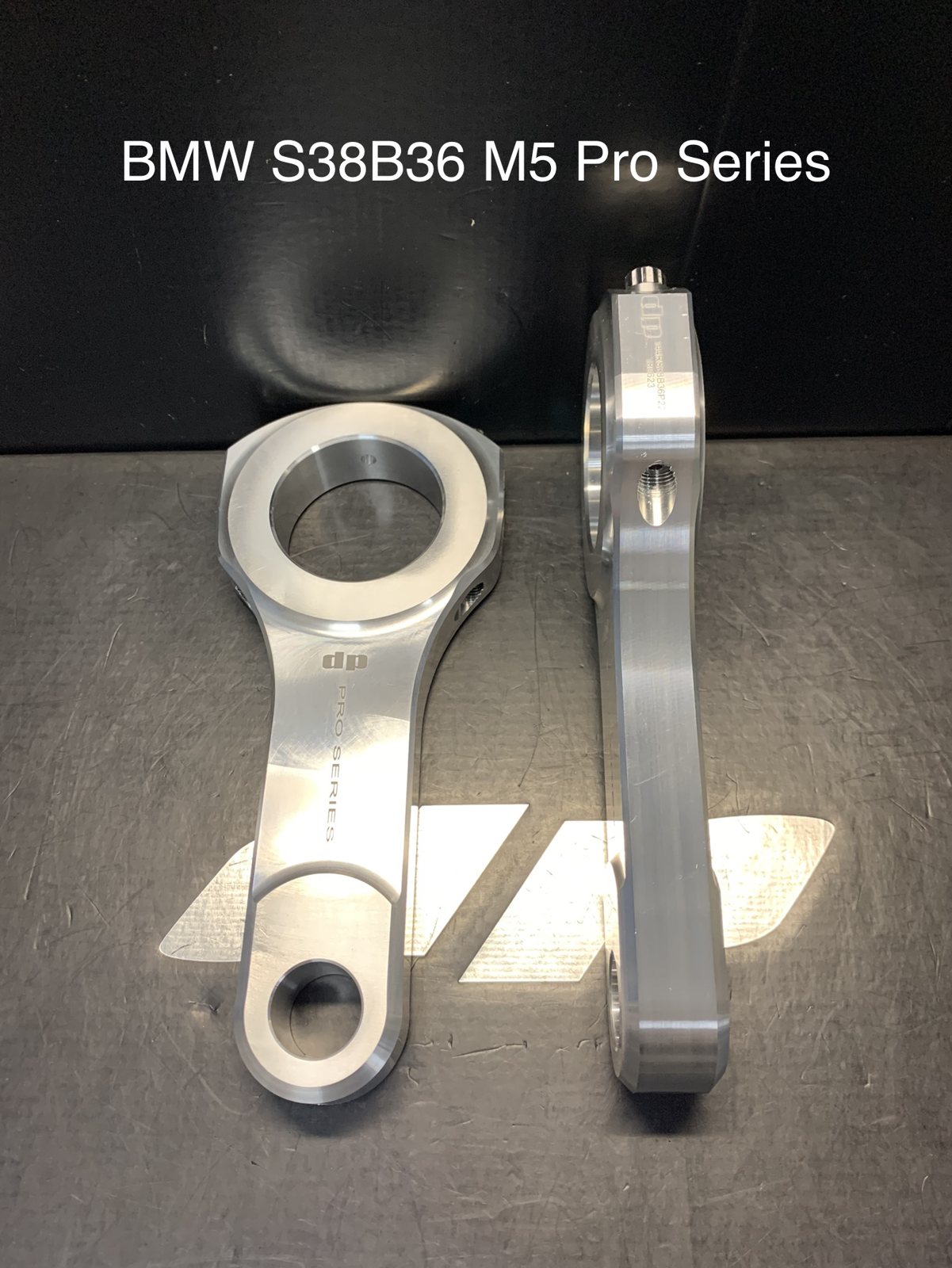

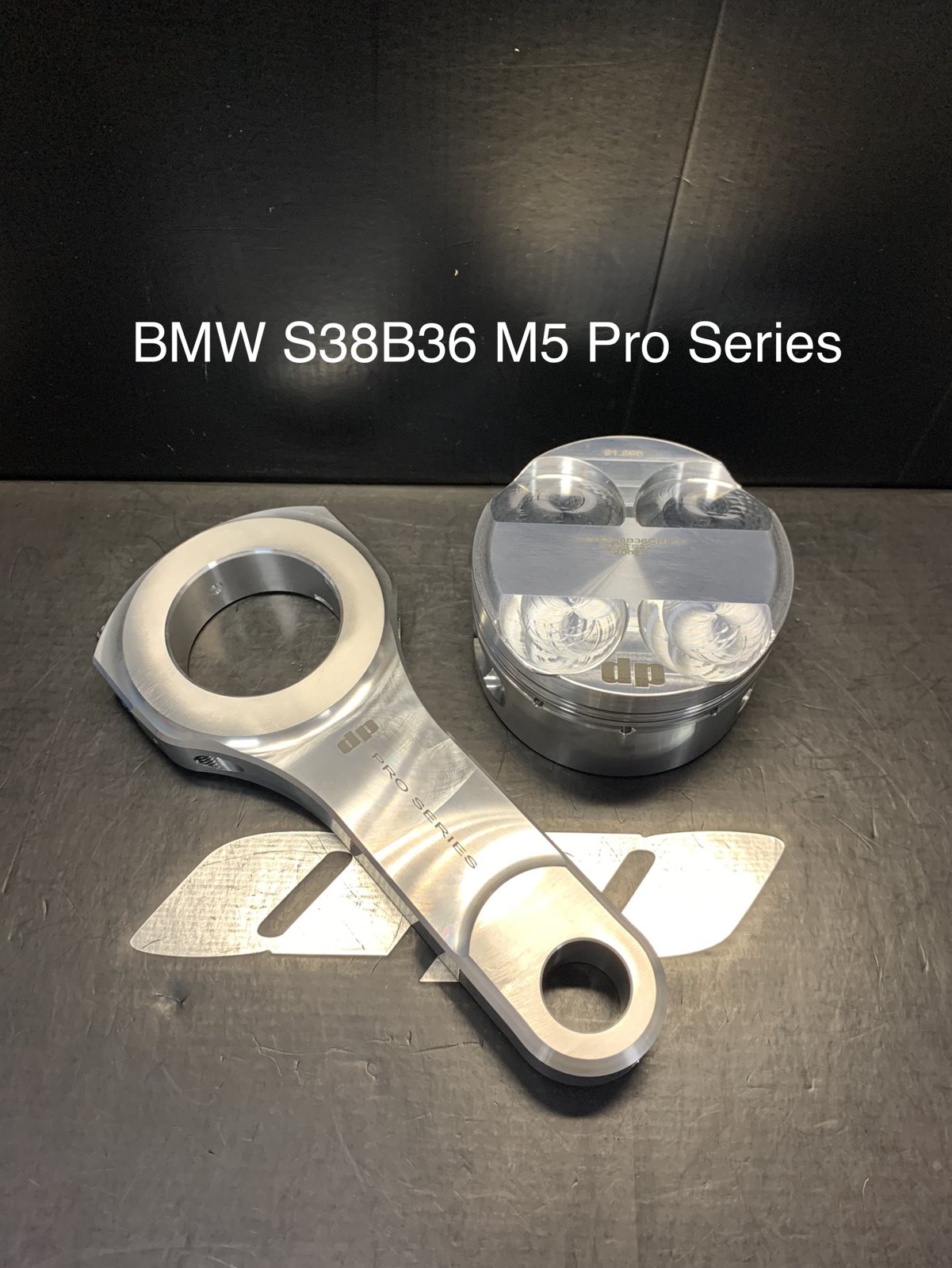

Race Series connecting rods for the BMW M5 B36. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 22 mm
  • Rod length: 144 mm
  • Beam design: A / A–beam

Pair them with our BMW M5 B36 pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A, A-Beam
