Evo Χ Race Series Pistons

800,00€ (exc. Vat)

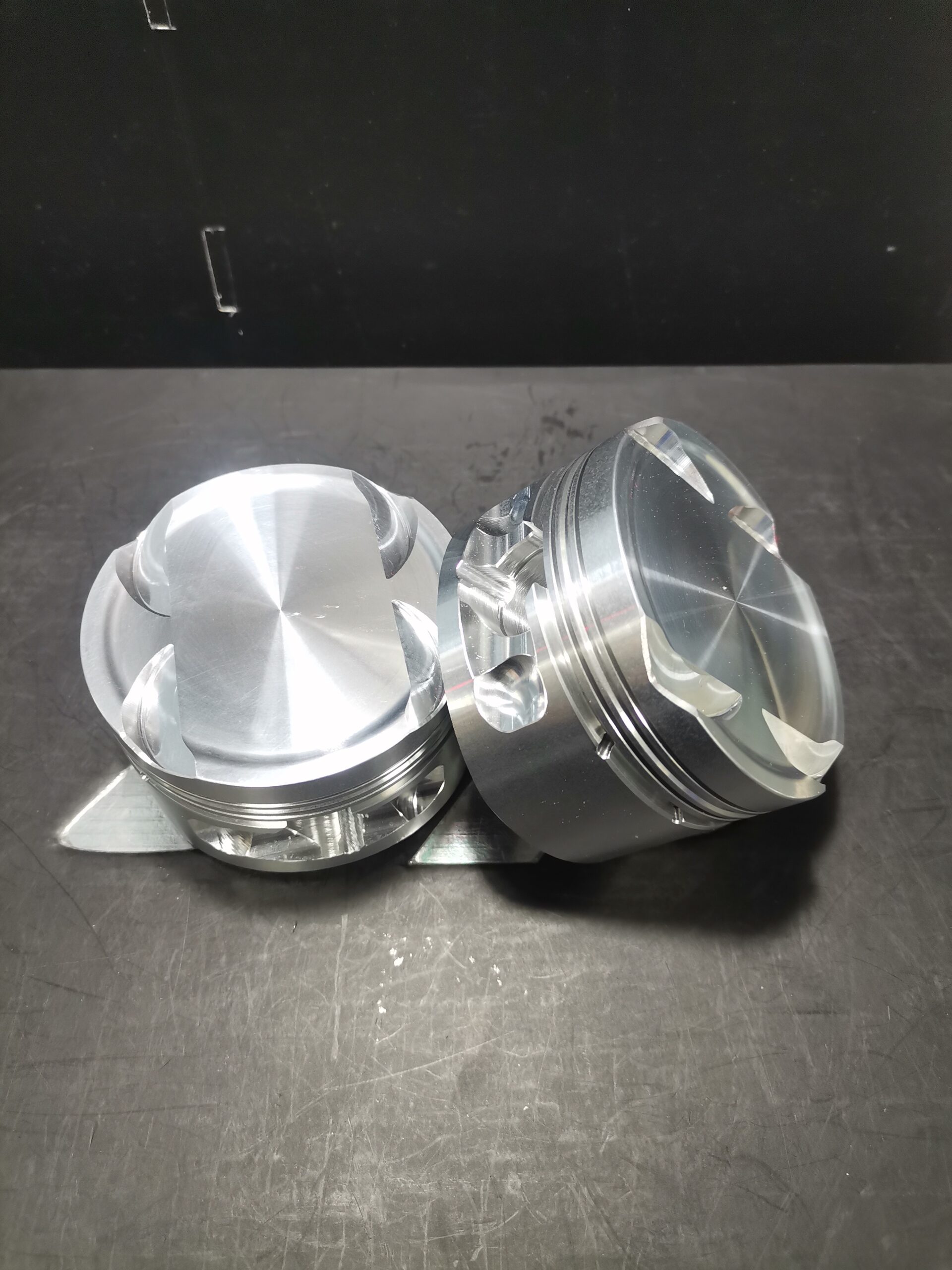

Race Series forged pistons for the Evo Χ. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,
🌀 Turbo

Technical data — EVO X

Displacement1998cc
Production Years2007–2016
Block MaterialAluminium
Bore (mm)86.00
Stroke (mm)86.00
Rod Length (mm)143.75
Wrist Pin Diameter (mm)23
Rod Big End Bore (mm)55mm
Rod Big End Thickness (mm)22mm
Cylinders4
CH (mm)33.3
Compression Ratio9.0–9.5 (OEM factory)
Bore86, 86.25, 86.5, 87
CH (Compression Height)33.3
CR (Compression Ratio)9.4
Pin Size (Ø)23
Pin Part Number537PP23D12
Pin Length53.7
Pin Combinations537PP23D12|race

Race Series forged pistons for the Evo Χ (turbo). Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Bore options: 86 / 86.25 / 86.5 / 87 mm
  • Piston pin: 23 mm

Pair them with our Evo Χ connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Weight 5 kg
Series

Performance, Race, Pro

Pin Diameter

23

Bore

86, 86.25, 86.5, 87

Pin Size

23
