FIAT T-Jet 1.4 Performance Series Pistons

Price range: 740,00€ through 800,00€ (exc. Vat)

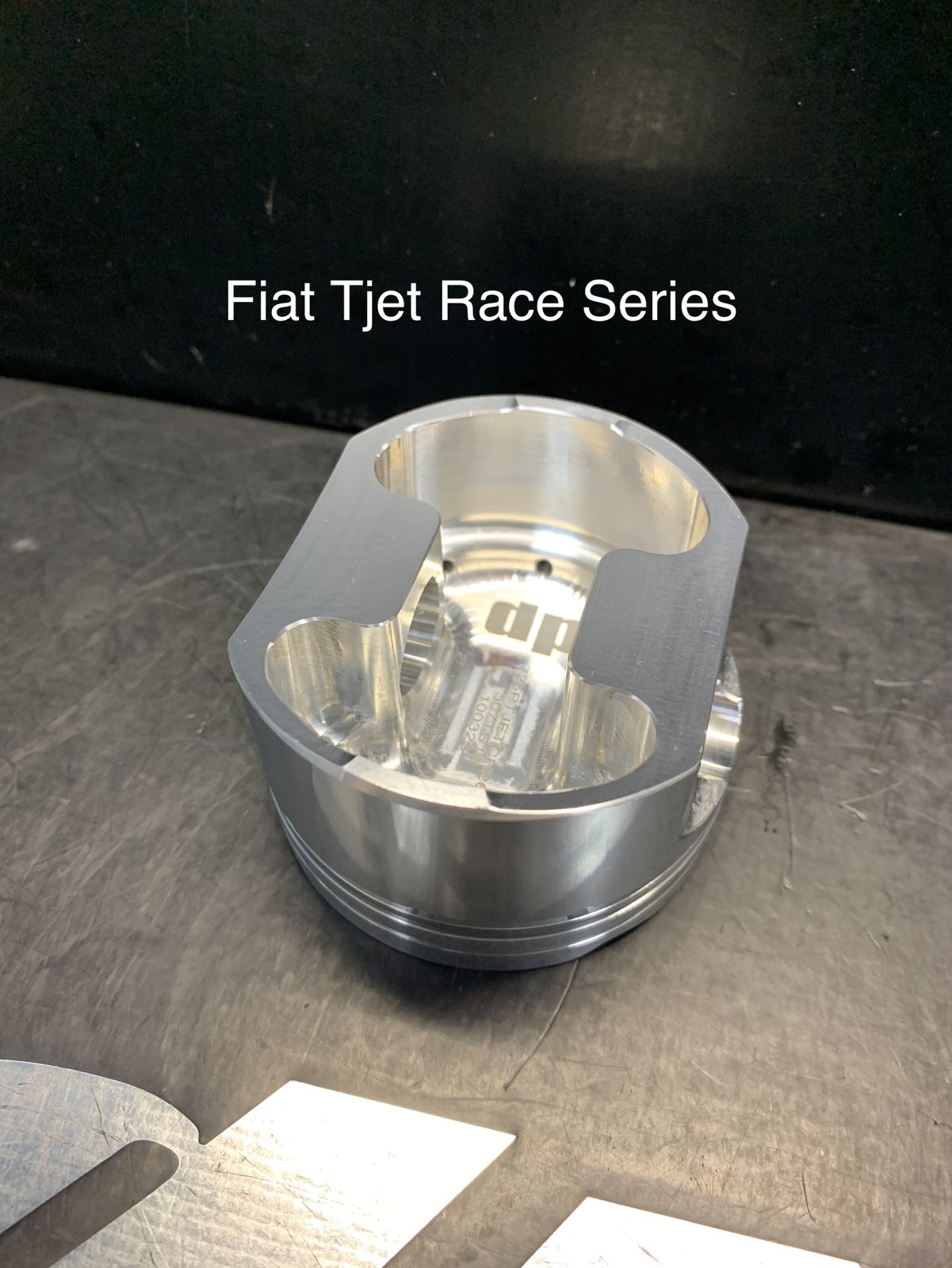

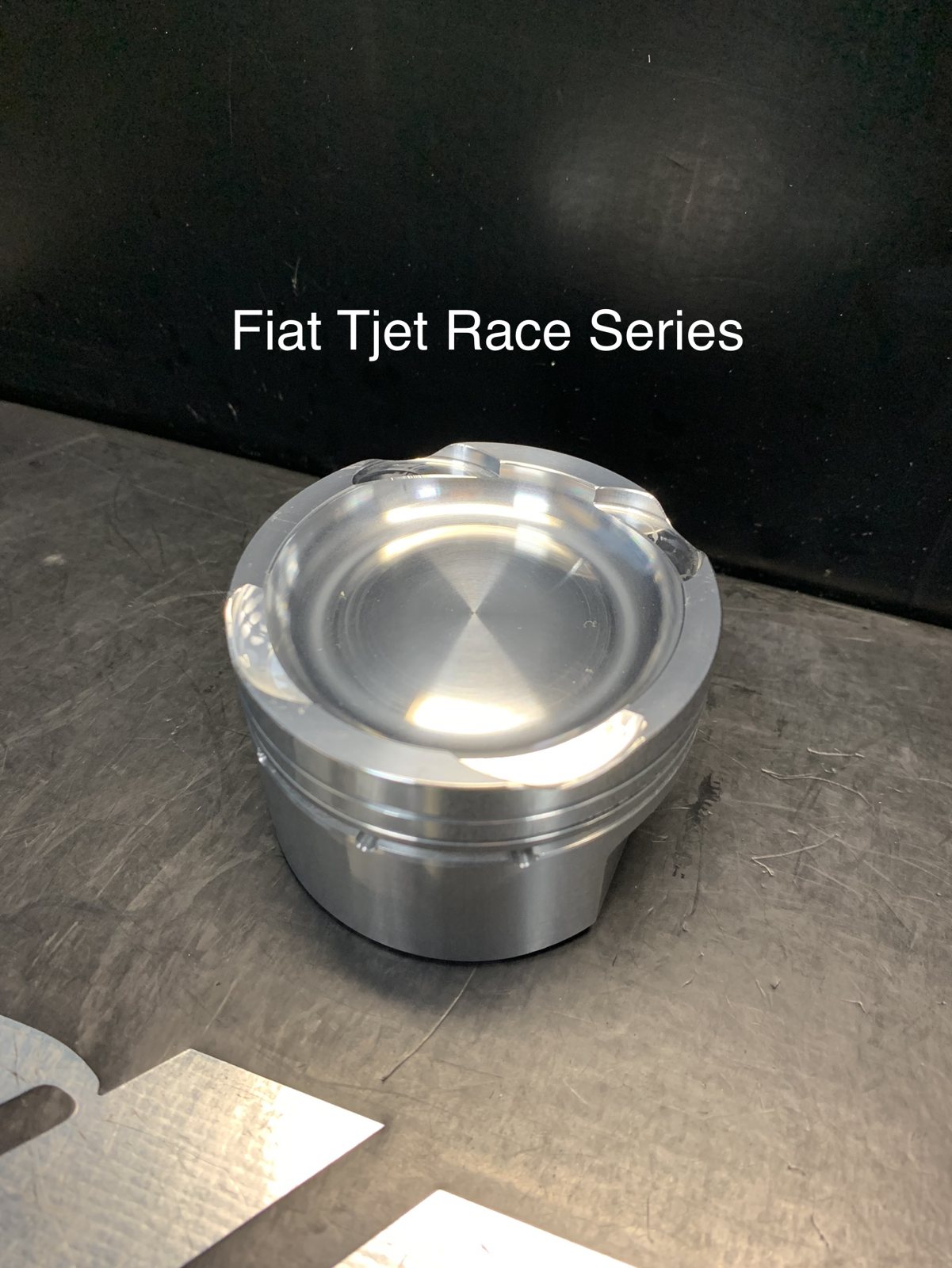

Race Series forged pistons for the FIAT T-Jet 1.4. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Categories: , Tags: , ,
🌀 Turbo

Technical data — TJET 1.4

Displacement1368cc
Production Years2007–present
Block MaterialCast Iron
Cylinder CoatingNone
Bore (mm)72.00
Stroke (mm)84.00
Rod Length (mm)129
Wrist Pin Diameter (mm)18
Rod Big End Bore (mm)45.13mm
Rod Big End Thickness (mm)21.7mm (B.E width)
Cylinders4
CH (mm)26.8
Compression Ratio9.6 (OEM factory not independently distinguished)
Bore72.0, 72.5, 73.0
CH (Compression Height)26.8
CR (Compression Ratio)9.6
Pin Size (Ø)18

Race Series forged pistons for the FIAT T-Jet 1.4 (turbo). Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 18 mm

Pair them with our FIAT T-Jet 1.4 connecting rods for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro
Pin Diameter

18
Bore (mm)

72.0, 72.5, 73.0
