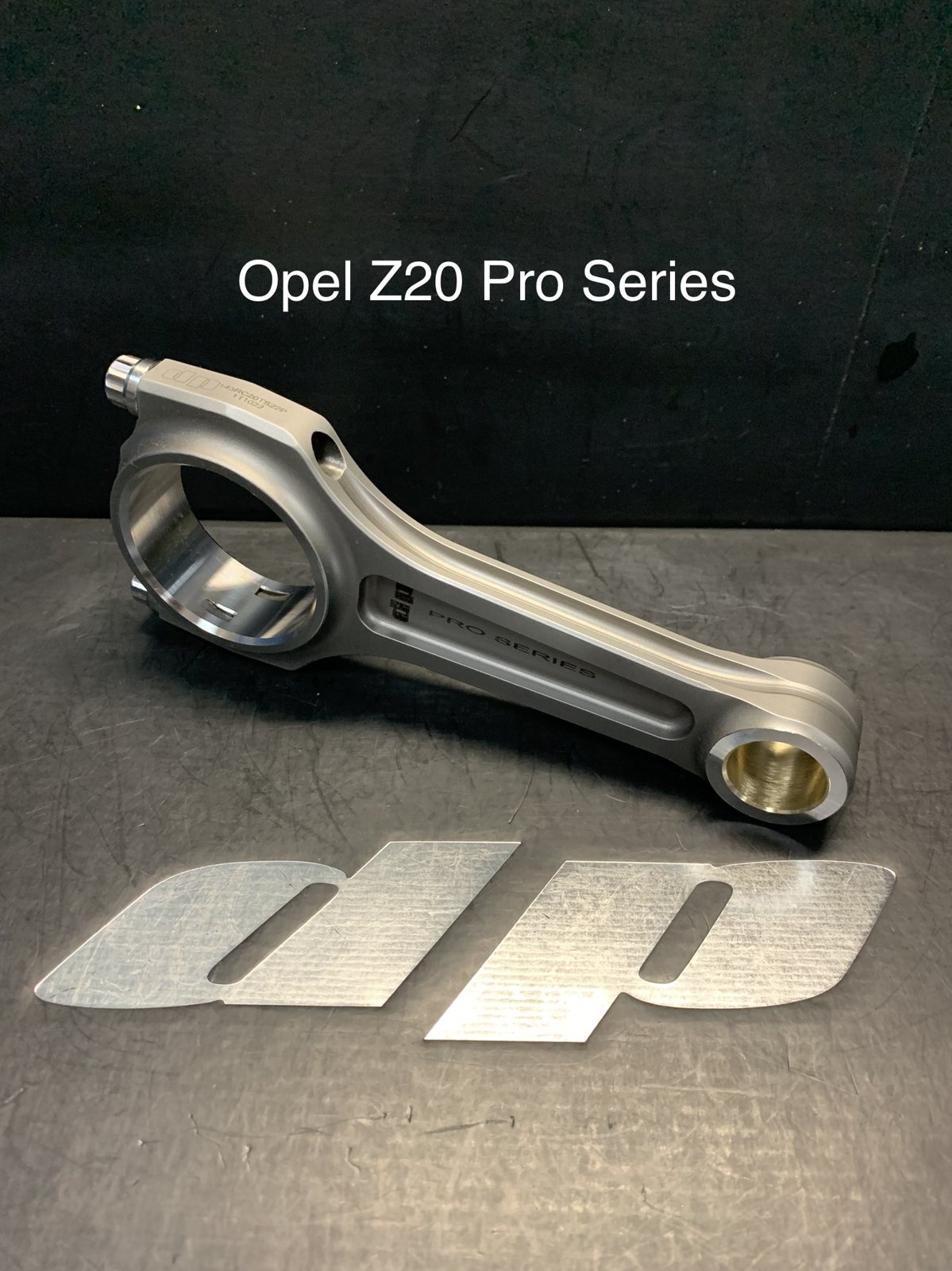

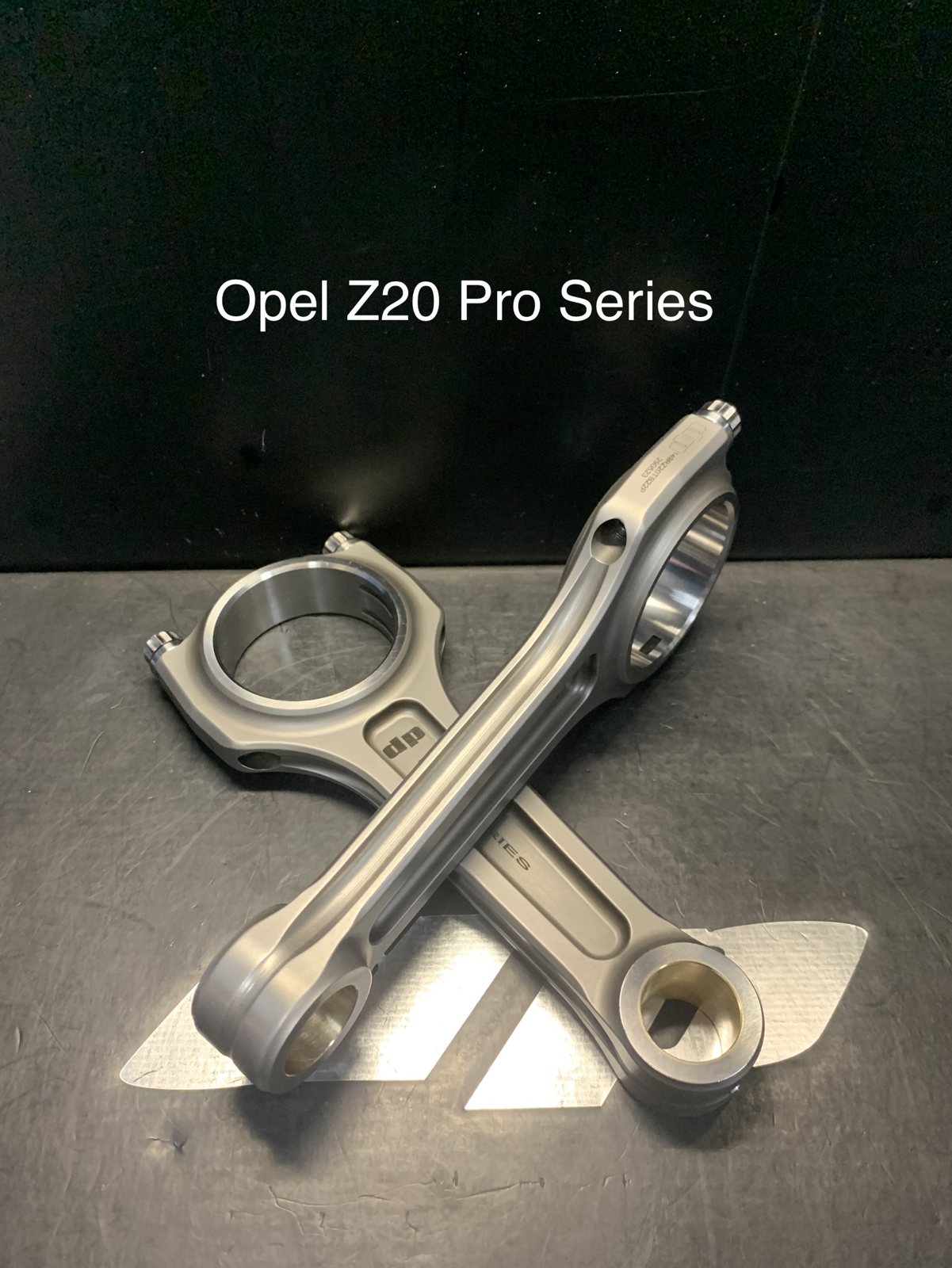

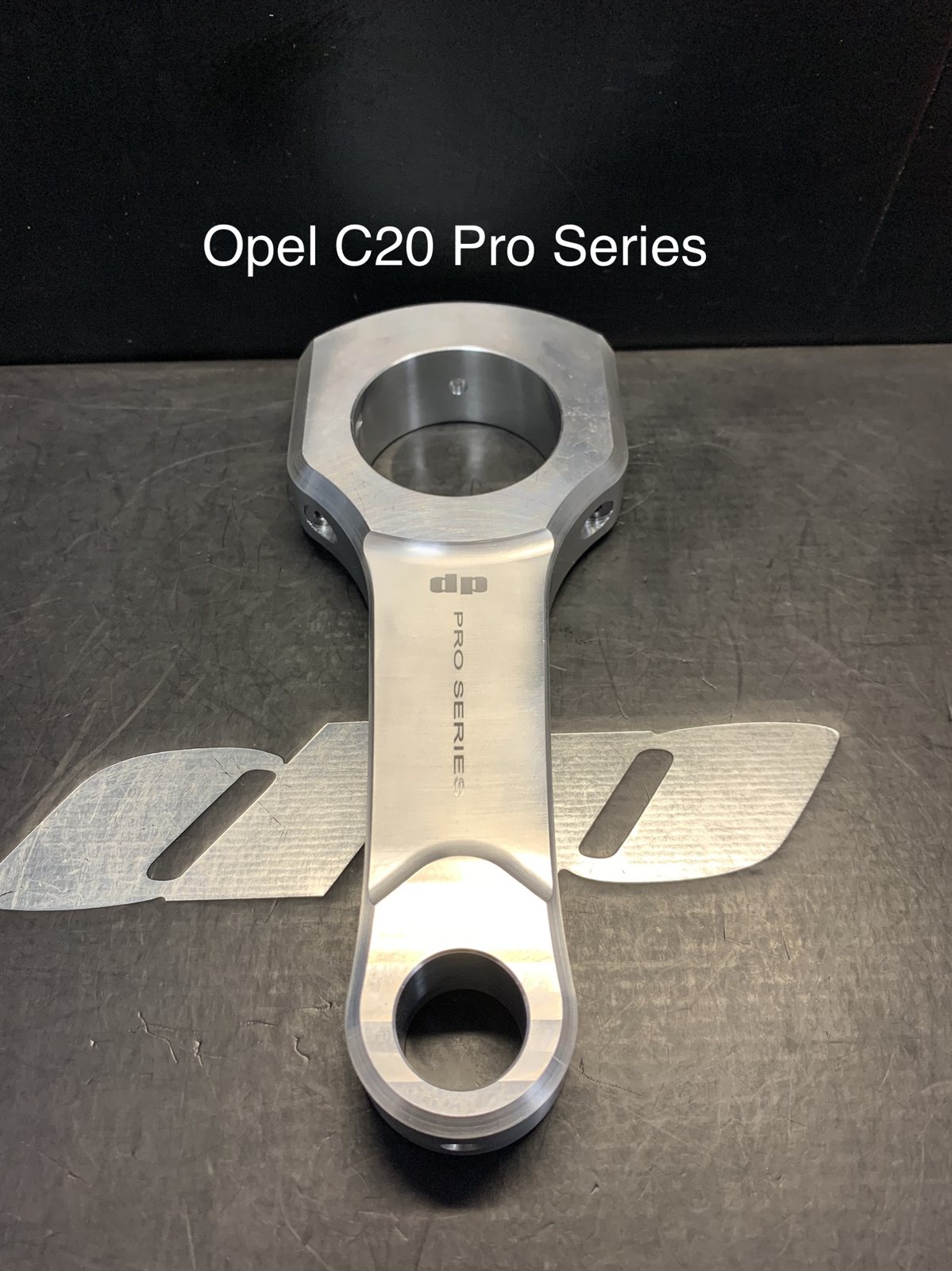

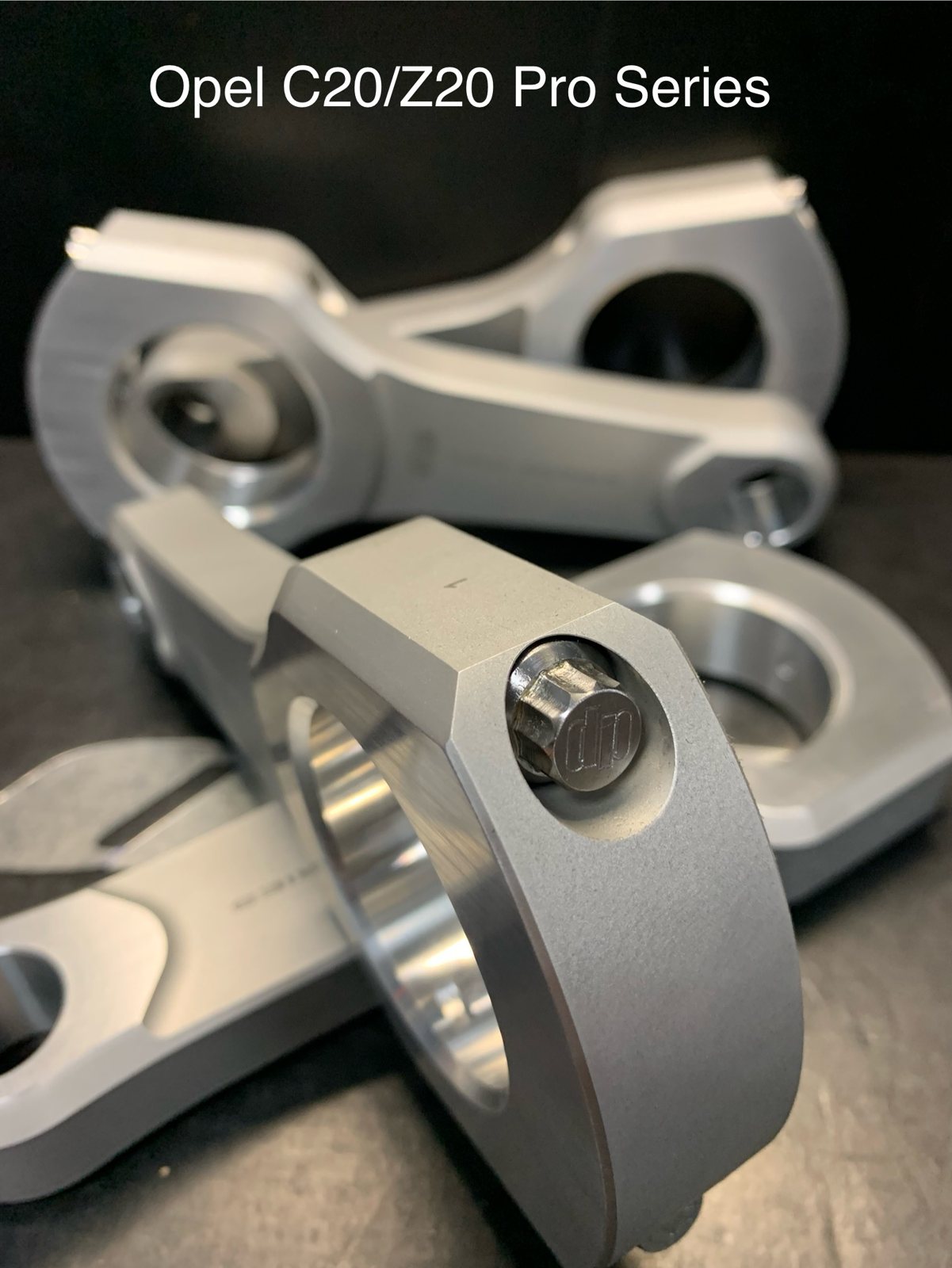

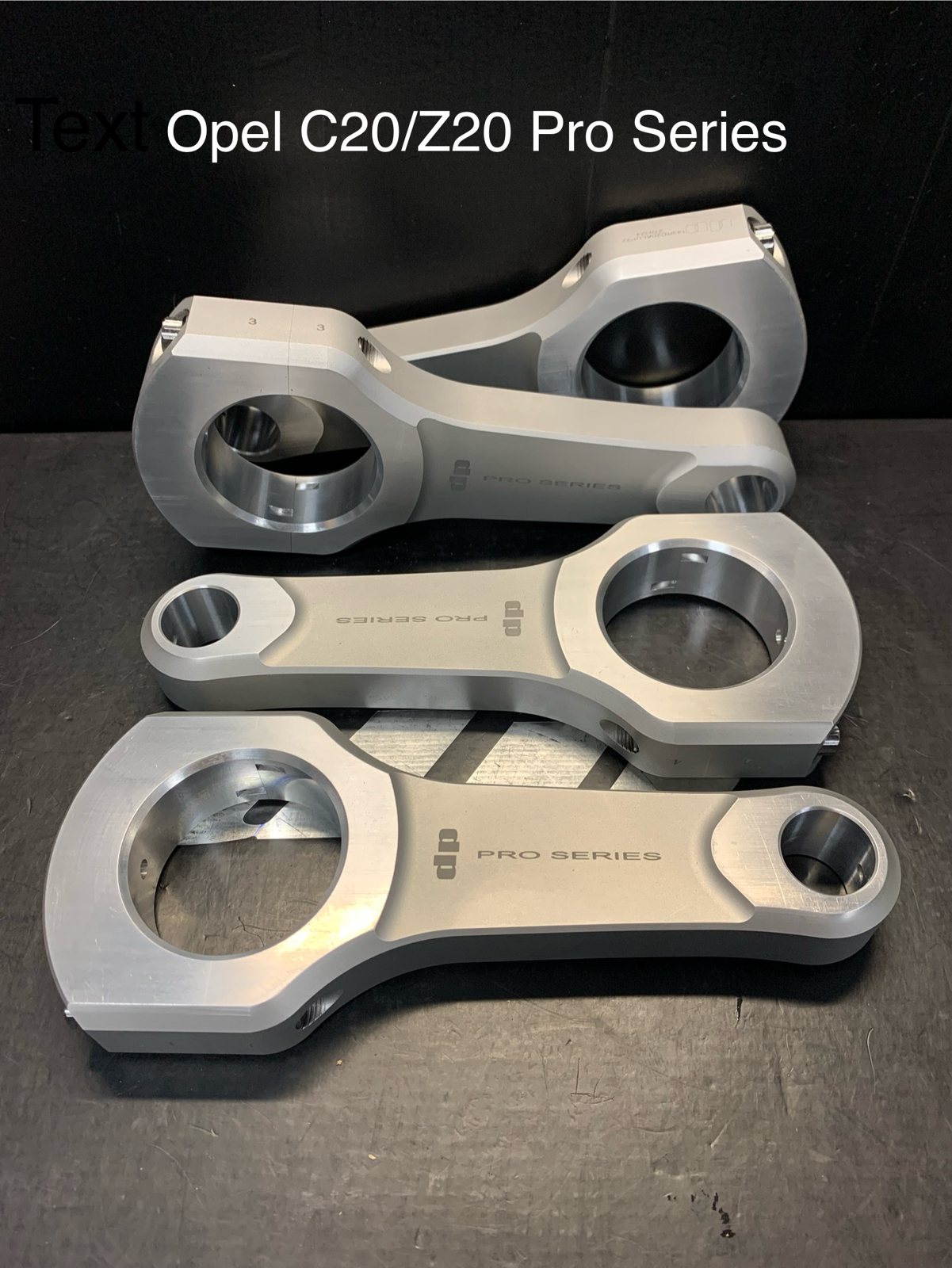

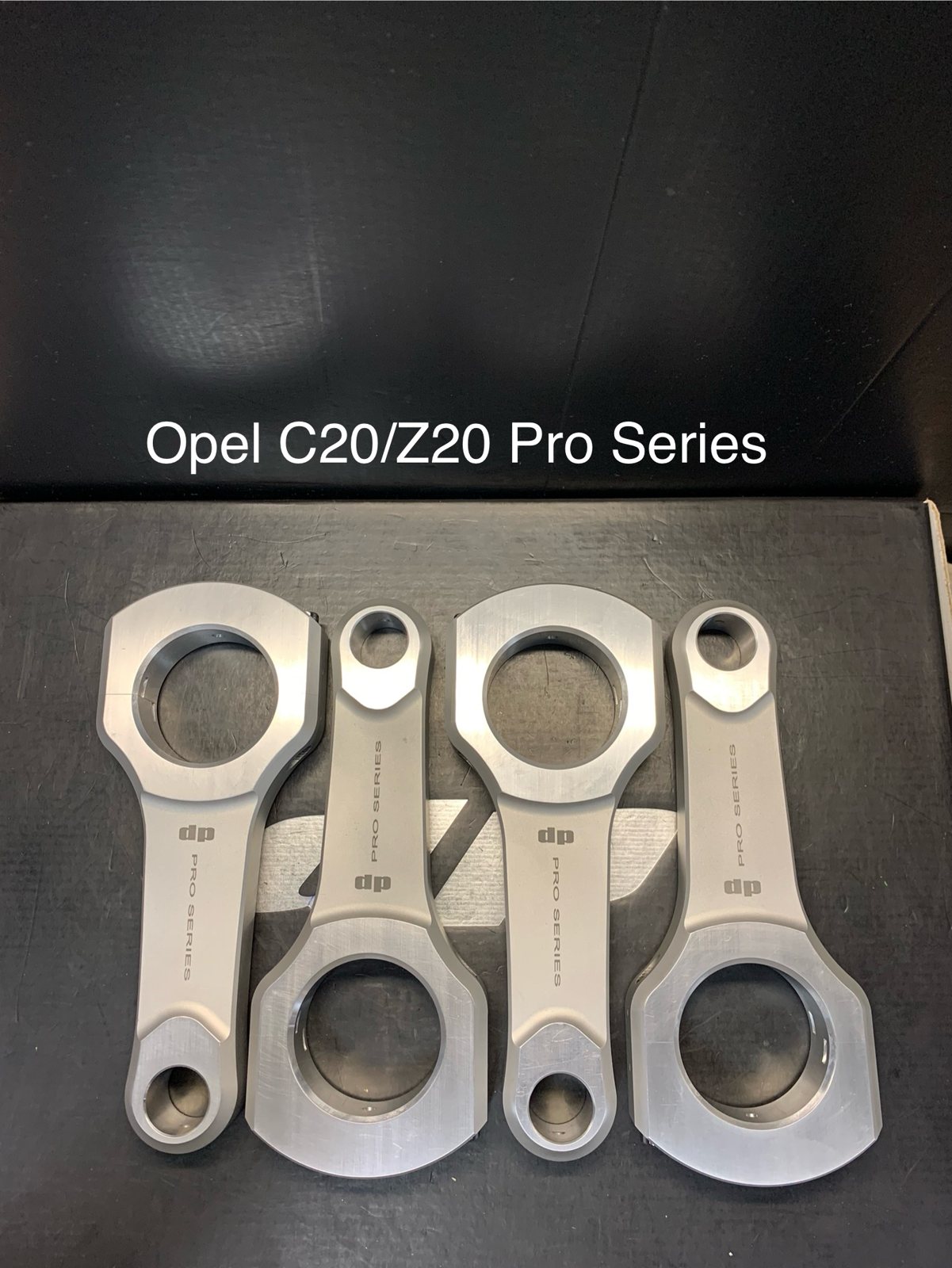

Opel C20/Z20 Race Series Rods

900,00€ (exc. Vat)

Race Series connecting rods for the Opel C20/Z20. Designed and made in-house at DP Engine Parts, Greece.

Optional extras

SKU: N/A Category: Tags: , ,

Technical data — C20/Z20

Displacement1998cc
Block MaterialCast Iron
Cylinder CoatingNone
Block Height (mm)216.3
Bore (mm)86.00
Stroke (mm)86.00
Rod Length (mm)143.1
Wrist Pin Diameter (mm)21
Rod Big End Bore (mm)52mm
Rod Big End Thickness (mm)26.3mm
Cylinders4
CH (mm)30.5
Rod Length143.1
Pin Size (Ø)21
Rod DesignA-Beam
Big End Ø52
Big End Thickness26.3
Small End Thickness26.3

Race Series connecting rods for the Opel C20/Z20. Designed and manufactured in-house at DP Engine Parts, Greece, with full CAD/CAM control from design to finished part.

  • Piston pin: 21 mm
  • Rod length: 143.1 mm
  • Beam design: A–beam

Pair them with our Opel C20/Z20 pistons for a complete, matched set. Worldwide shipping. Contact us for custom specifications.

Series

Performance, Race, Pro, Aluminum Pro
Design

A-Beam
